SKU: LMEF-8-UU-EU

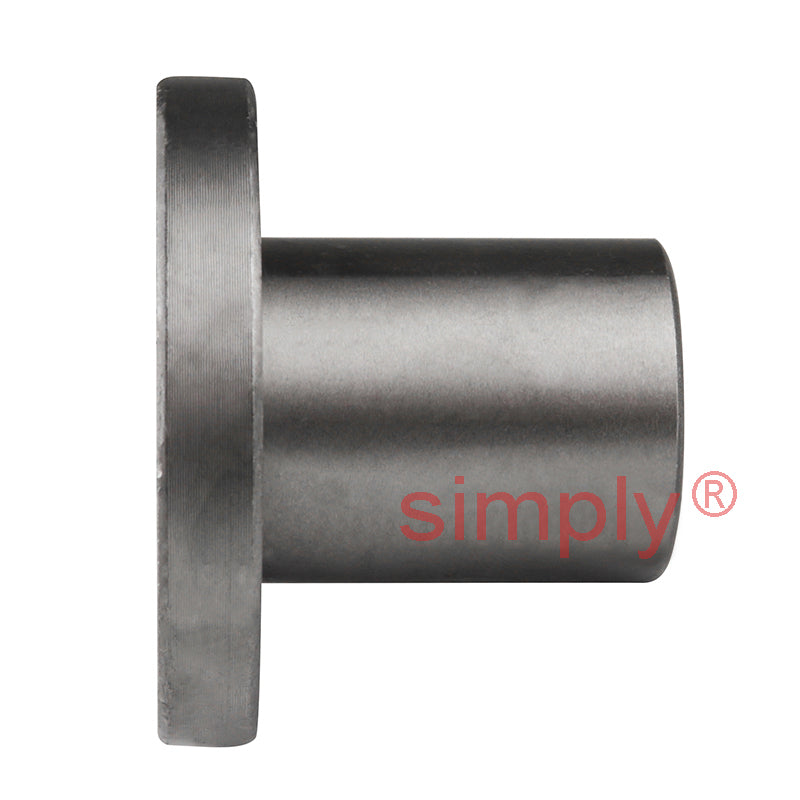

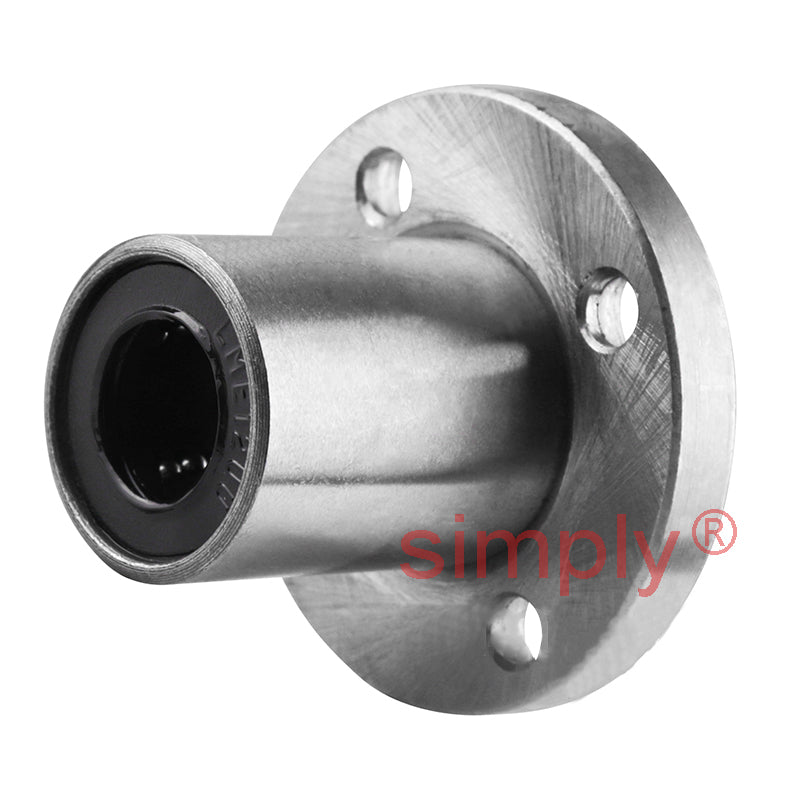

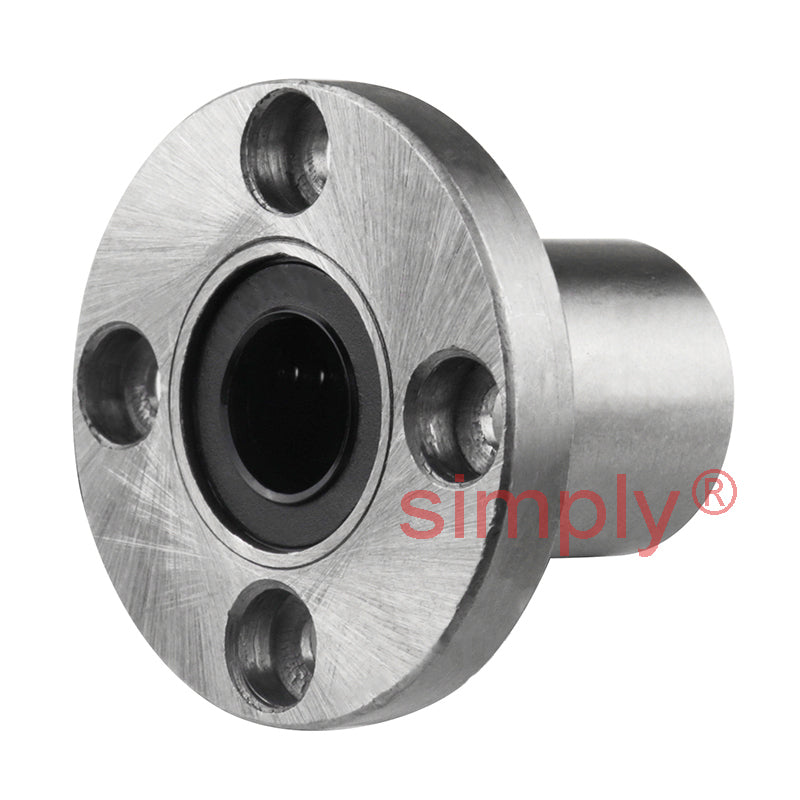

LMEF8UU Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 8x16x25mm
- Regular price
- €22,95 ex VAT
- Sale price
- €22,95
- Regular price
-
Quantity Price Breaks
LMEF8UU Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 8x16x25mm
- Regular price
- €22,95 ex VAT
- Sale price
- €22,95
- Regular price
-
Description
LMEF Flanged Linear Ball Bushing: These linear ball bushings are characterised by their pre-drilled round housing for a smooth movement, high rigidity and low friction, they are easy to maintain or replace and have a good lifespan in service. They consist of a Steel outer housings with sets of balls running around their own tracks. The UU series has the benefit of rubber seals to prevent the ingress of dust and moisture. Linear bushings are widely used in Precision equipment; Measuring equipment, Auto recording equipment, and 3D measuring equipment, and Linear Motion systems in Machine for Mass Production; Multi-Axis Drilling machines, Punching Press, Tool Grinders, Auto-Gas cutters, printing machines, card selectors and food packing machines. The smaller units often found in Computer and peripheral equipment.
Benefits: Low friction, low maintenance, rubber seal limits moisture and dirt ingress, cost-effective solution

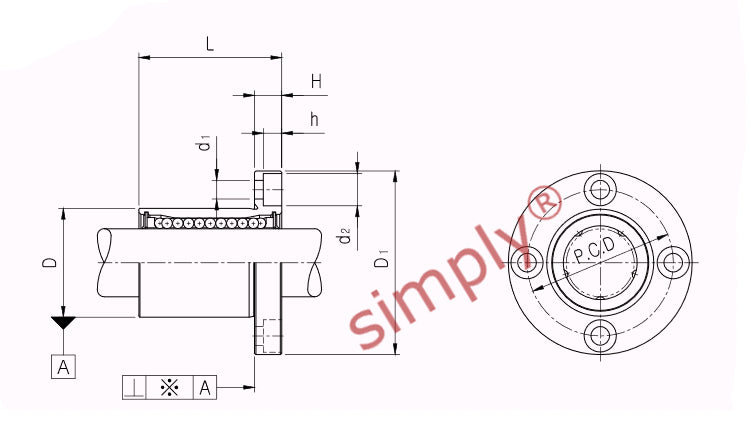

Technical
| Working Bore Diameter dr. | = | 8mm |
| Bore Clearance | = | +0.008/0mm |
| D | = | 16mm |
| D Clearance | = | 0/-0.008mm |
| L | = | 25mm |
| L Clearance | = | 0/-0.2mm |
| B | = | 32mm |
| B Clearance | = | 0/-0.2mm |
| H | = | 5mm |
| PCD | = | 24mm |
| d< | = | sub> |
| 1< | = | /sub> |
| = | 3.4mm | |
| d< | = | sub> |
| 2< | = | /sub> |
| = | 6.5mm | |
| h | = | 3.3mm |
| Squareness um | = | 12mm |
| Basic Load Rating - Dynamic C | = | 260 N |
| Basic Load Rating - Static Co | = | 400 N |
| No of Ball Rows | = | 4 |
| Weight | = | 0.044 kg |
