SKU: LM.E.25.UU.EU
LME25UU Closed Linear Ball Bushing with Rubber Seals 25x40x58mm
- Regular price
- €17,95 ex VAT
- Sale price
- €17,95
- Regular price
-
Quantity Price Breaks

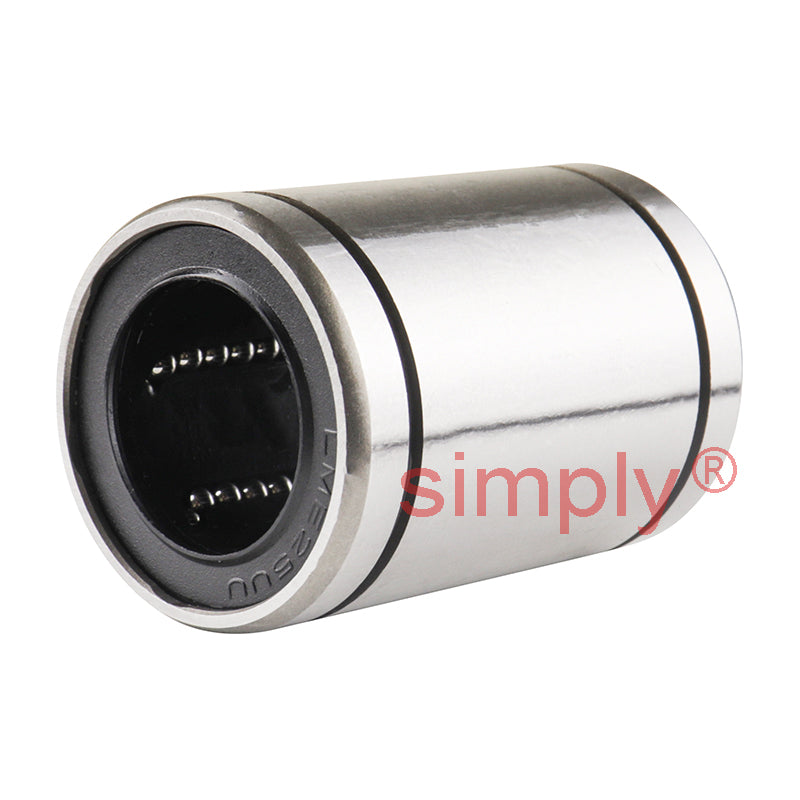

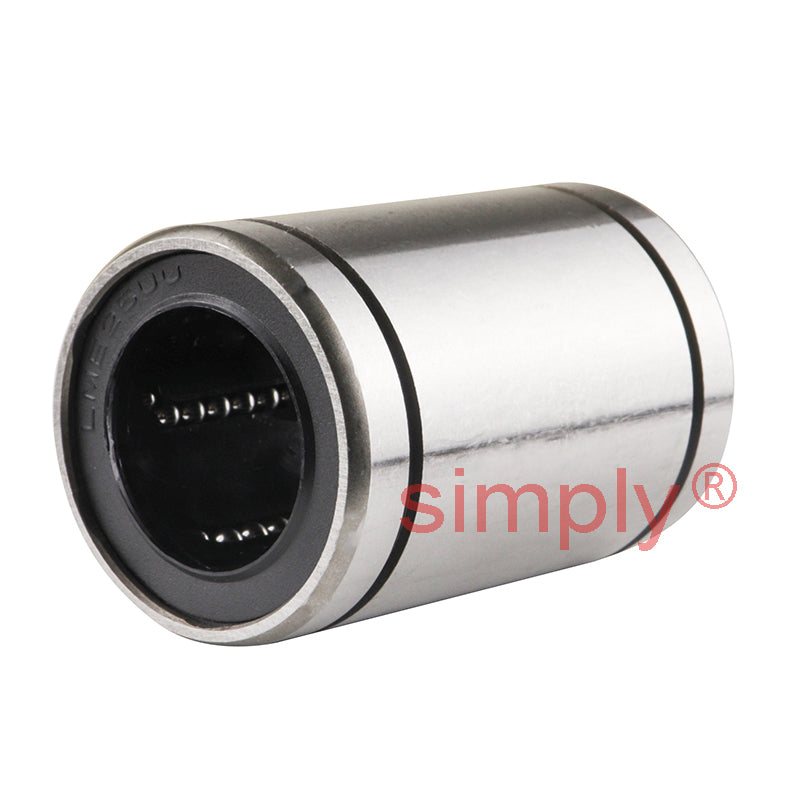

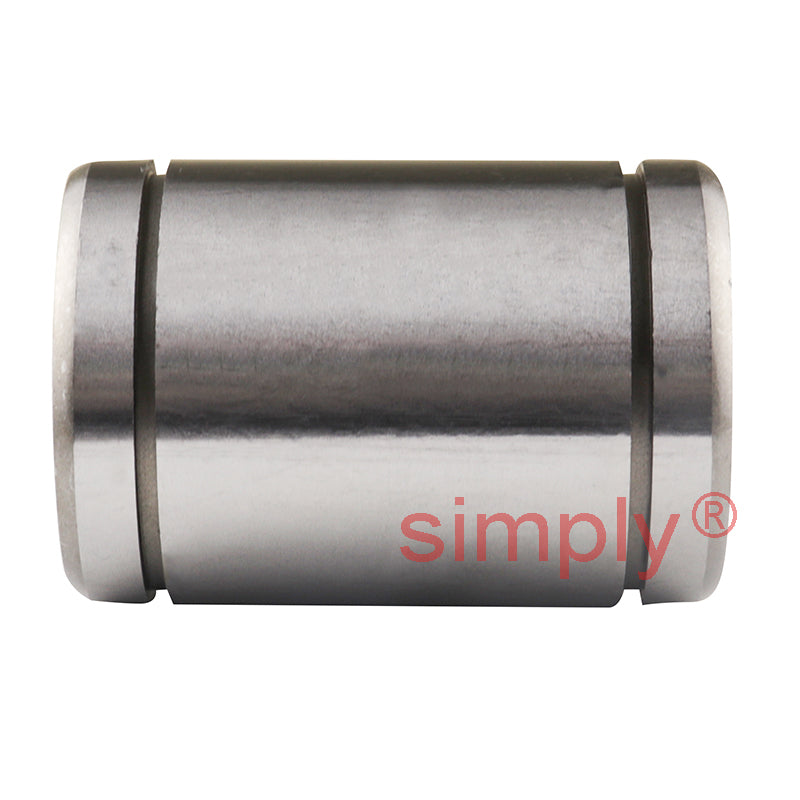

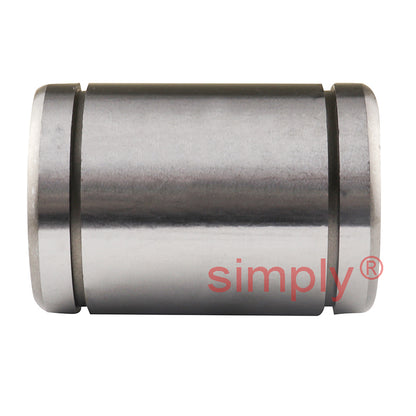

LME25UU Closed Linear Ball Bushing with Rubber Seals 25x40x58mm
- Regular price
- €17,95 ex VAT
- Sale price
- €17,95
- Regular price
-
Description
LME European Metric Series Rubber Sealed Linear Ball Bushings: Manufactured with rubber seals these linear ball bushings are characterised by their smooth movement, high rigidity and low friction, they are easy to maintain or replace and have a good life span in service. They consist of steel outer housings with sets of balls running around their own tracks within the low friction polyamide / steel inner raceways. The UU series has the benefit of rubber seals to prevent the ingress of dust and moisture. |

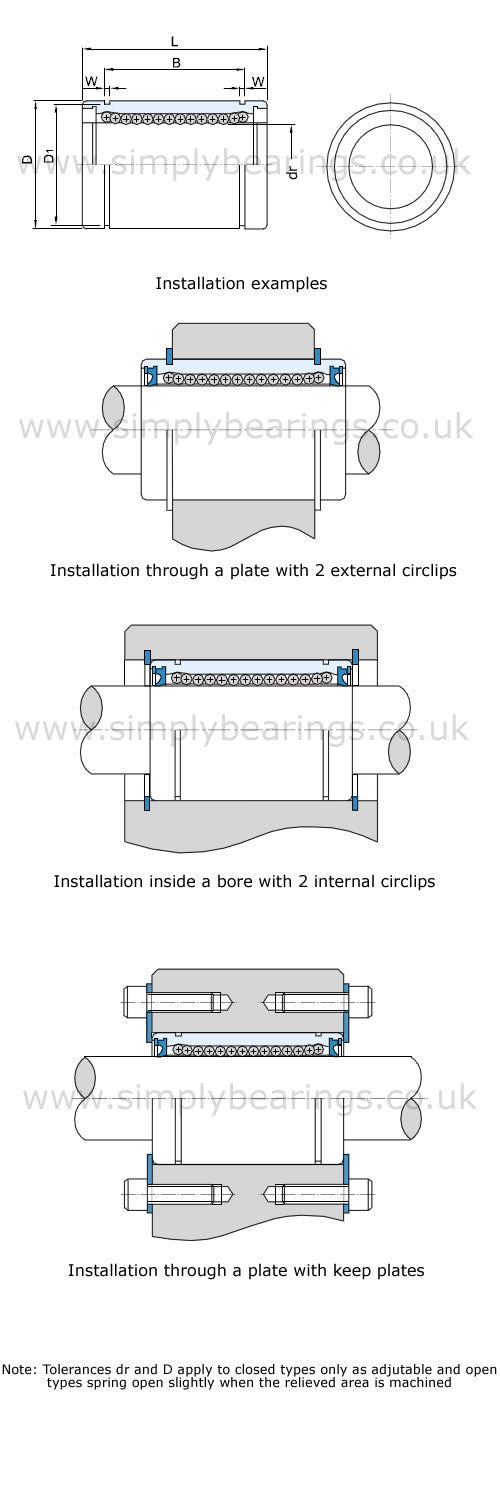

Technical
| Inside Diameter dr | = | 25mm Tol +11 to - 1& |
| micro | = | m |
| Outside Diameter D | = | 40mm Tol + 0 to - 300& |
| micro | = | m |
| Length L | = | 58mm Tol + 0 to - 300& |
| micro | = | m |
| W | = | 1.85mm |
| D1 | = | 37.5mm |
| B | = | 44.1mm |
| Eccentricity | = | 15& |
| micro | = | m |
| Dynamic load C | = | 105 kgf |
| Static load C< | = | sub> |
| o< | = | /sub> |
| = | 185 kgf | |
| Weight | = | 196 g |
| Number of ball rows | = | 6 |
| Tolerances dr & | = | D |
| Apply to closed type only | = | N/A |
