IKO LHSA5L Left Hand Metric Steel / Steel Studded Copper Alloy Bushing with Dust Cover L-Ball Rod End M5x0.8 Thread
SKU: LHSA-5L-IKO

IKO LHSA5L Left Hand Metric Steel / Steel Studded Copper Alloy Bushing with Dust Cover L-Ball Rod End M5x0.8 Thread

€15,95 ex VAT
€15,95
ex VAT

Description

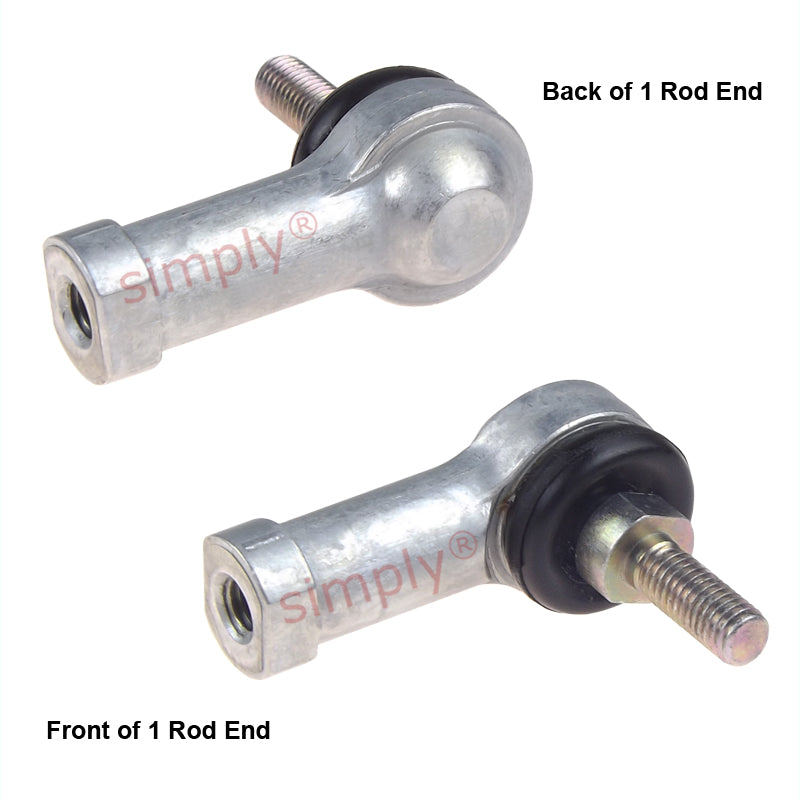

L-Ball LHSA Rod Ends: The L-Ball LHSA is a high quality compact rod-end. Constructed with a dust cover on the stud side, this rod end is pre-loaded with quality lithium soap based grease, allowing these rods to be run for extended periods of time between re-lubrication. Other advantages included excellent lubrication with anti dust properties.
The ball-studs of LHSA 10 and lower are formed as a single solid body, LHSA 12 and higher which are designed for larger loads have the stud friction-welded to a high precision steel ball to give better resistance to wear.
L-Balls have a maximum operating temperature of +80°C
Note: The threads on the studs are always right-handed threads, the internal threads are handed dependent on the version purchased. eg: if you purchased an LHSA12 then the internal thread will be right-handed whereas in the case of an LHSA12L the internal thread will be left-handed. (The L in the part number indicates this)
Benefits: Very high quality, excellent lubrication, can be run for extended periods between re-lubrication

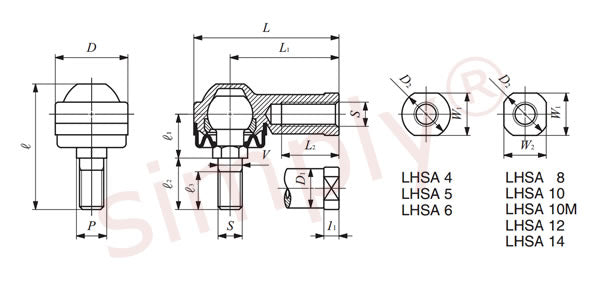

Technical

Stud size = M5
Thread = M5x0.8
V = 5mm
D = 17mm
L = 38.5mm
L1 = 30mm
L2 = 16mm
l1 = 5mm
W1 = 10mm
D1 = 10mm
D2 = 12mm
e = 32.5mm
P = 8mm
e1 = 12mm
e2 = 13mm
e3 = 10mm
Ball Diameter = 11.112mm
Static load = 1180 N
