New
SKU: KRE30PPA-MB-IKO

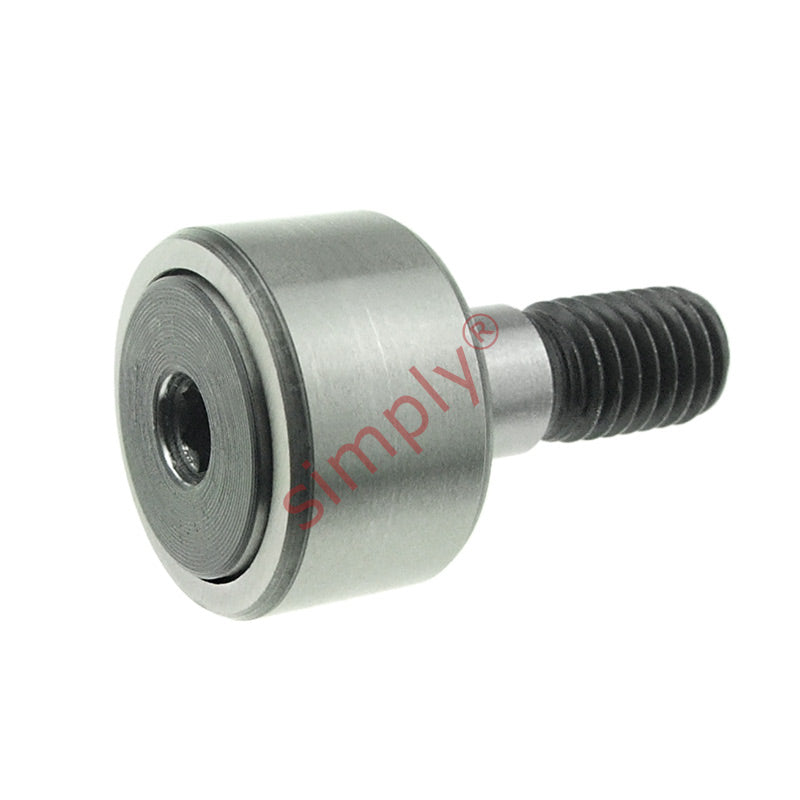

IKO KRE30PPA Contact Sealed Crowned Cam Follower with Eccentric Stud 30x14x15 M12x1.5 Thread
- Regular price
- €91,95 ex VAT
- Sale price
- €91,95
- Regular price
-
In stock
Quantity Price Breaks
5+
€91,03
10+
€87,35
20+
€85,51
50+
€82,76
100+
€80,92
500+
€76,32
1000+
€64,37
SKU:
KRE30PPA-MB-IKO
IKO KRE30PPA Contact Sealed Crowned Cam Follower with Eccentric Stud 30x14x15 M12x1.5 Thread
- Regular price
- €91,95 ex VAT
- Sale price
- €91,95
- Regular price
-
Description
KRE-PP Series Crowned Cam Followers: Manufactured with needle rollers permitting a thick outer ring allowing for heavy loads and shock to be supported, axial guidance is provided by a flange on the stud side and a pressed on-side washer. These cam followers are supplied with contact seals on both sides.
Benefits: High load, shock resistant, contact sealed on both sides.
Technical
| D | = | 30mm |
| C | = | 14mm |
| d(Stud Diameter) | = | 15mm |
| B | = | 40mm |
| B1 | = | 25mm |
| C1 | = | 0.6mm |
| d1 | = | 23mm |
| G | = | M12x1.5 |
| G1 | = | 13mm |
| r min | = | 0.6mm |
| SW | = | 6mm |
| Eccentric stud c | = | 0.5mm |
| B3 | = | 11mm |
| Dynamic load | = | 6440 N |
| Static load | = | 8000 N |
| Fatigue load limit Pu | = | 880 N |
| Radial dynamic load | = | 7800 N |
| Radial static load | = | 11200 N |
| Speed rating | = | 5500 rpm |
| Weight | = | 93 g |
