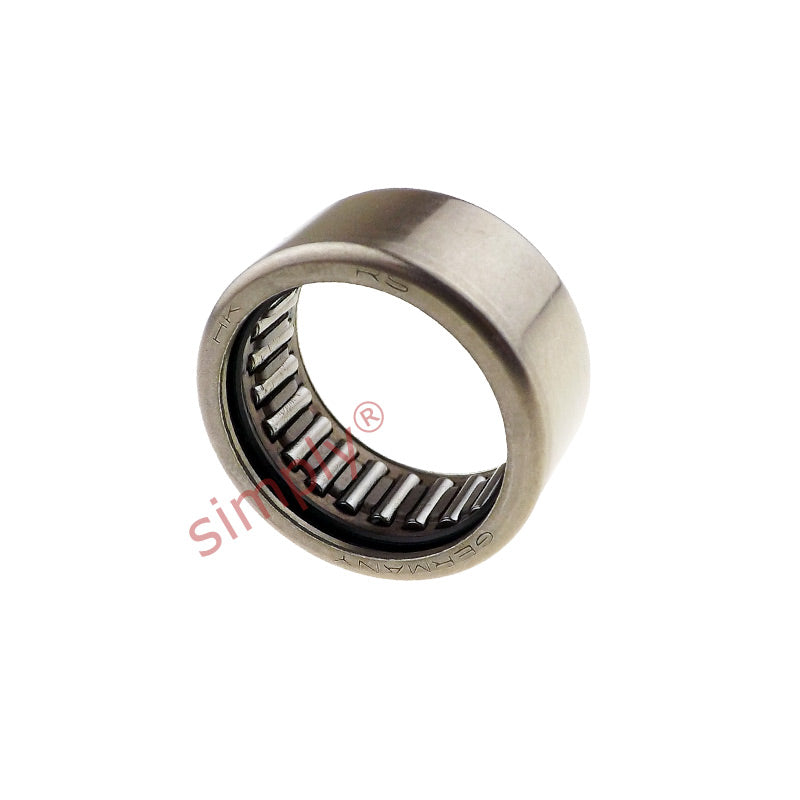

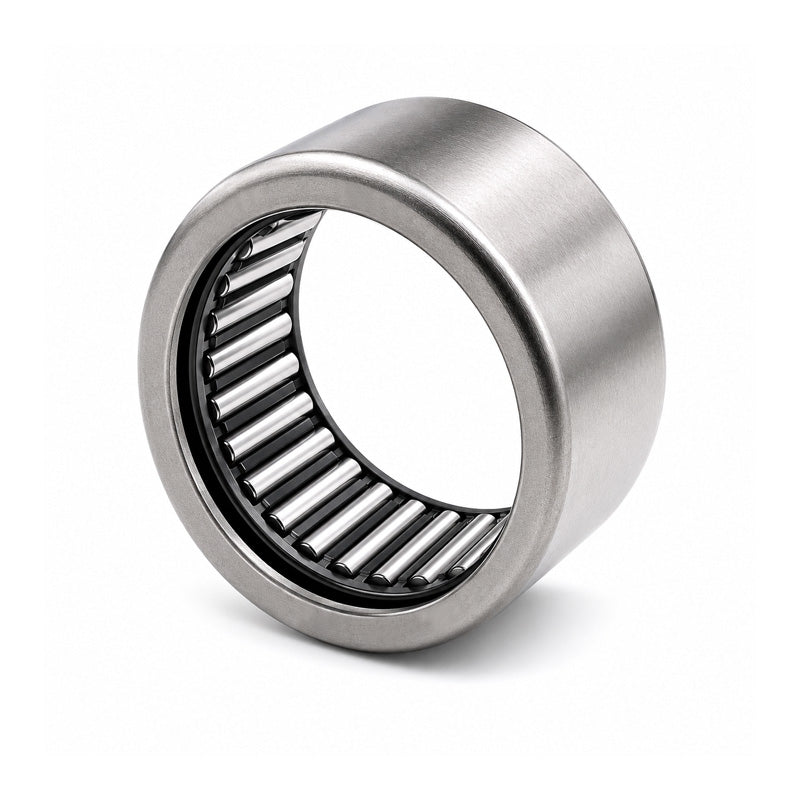

Torrington JTT1210-2RS Imperial Drawn Cup Open End Needle Roller Bearing 3/4x1x5/8 inch

SKU: JTT1210-2RS

Torrington JTT1210-2RS Imperial Drawn Cup Open End Needle Roller Bearing 3/4x1x5/8 inch

€22,95 ex VAT
€22,95
ex VAT
Not in stock

Quantity Price Breaks

10 €20,43
19 €19,28
29 €19,05
39 €18,82
49 €18,59
74 €18,36
99 €17,21
199 €16,98
249 €16,75
499 €16,52
999 €16,07
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Torrington JTT1210-2RS Imperial Drawn Cup Open End Needle Roller Bearing 3/4x1x5/8 inch
SKU: JTT1210-2RS

Torrington JTT1210-2RS Imperial Drawn Cup Open End Needle Roller Bearing 3/4x1x5/8 inch

€22,95 ex VAT
€22,95
ex VAT

Description

Imperial Drawn Cup Needle Roller Bearings : As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required.
Benefits: Compact low cross section design, high load bearing, low cost and economical,. Requires only a bored housing for deployment, the simplest of housing designs.

Technical

Inside diameter = 3/4 inch
Outside diameter = 1 inch
Width = 5/8 inch
Dynamic load = 2230 lbf
Static load = 2740 lbf
Limiting speed (grease) = 10000 rpm
