SKU: JSC255SS316-JUB

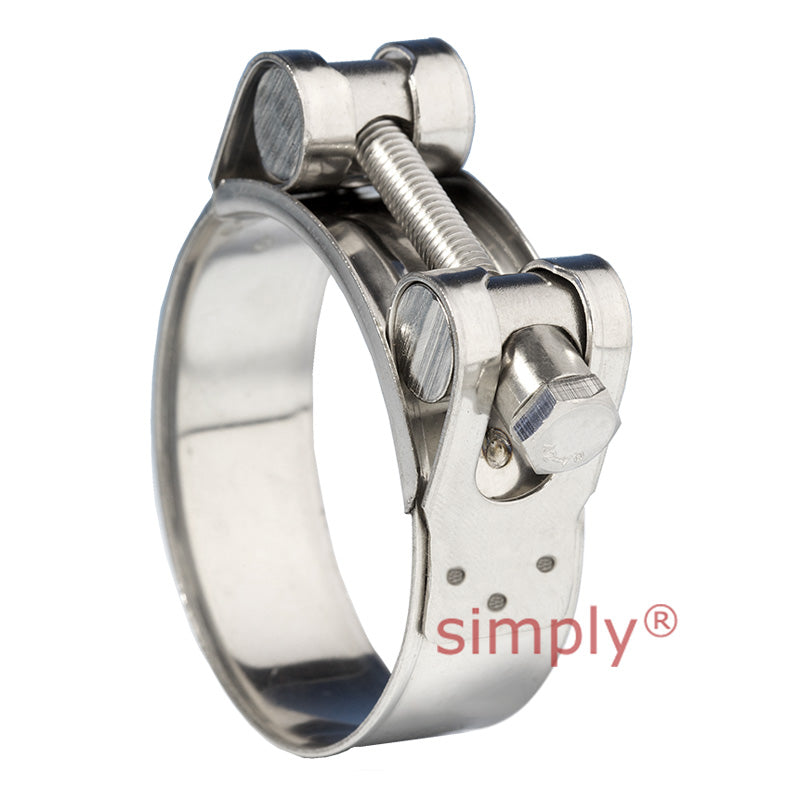

JSC255SS316 316 Stainless Steel (HNSS) Jubilee Superclamp Clip Adjustment Range 240mm - 255mm Band Width 25mm
- Regular price
- €32,95 ex VAT
- Sale price
- €32,95
- Regular price
-
ex VAT
Not in stock
Quantity Price Breaks
3
€29,33
5
€27,68
9
€27,35
19
€27,02
49
€26,69
74
€26,36
99
€24,71
199
€24,38
249
€24,05
499
€23,72
999
€23,07
Description
316 Stainless Steel (HNSS) Jubilee Superclamp Clips: Jubilee® Superclamps are heavy duty and suited where higher torque is required with a very tight seal such as delivery and suction hoses. Suitable for mining, quarrying, oil, gas and other offshore applications. Also suitable for waste water extraction and agricultural applications.
Benefits: High corrosion resistance, Single nut adjustment, Smooth band to protect hose line, 360 degree seal.
Technical
| Adjustment Range | = | 240mm - 255mm |
| Band Width (+/- 0.1) | = | 25mm |
| Band Thickness (+/- 0.1) | = | 1.5mm |
| Recommended Torque | = | 18.5Nm |
| Maximum Torque | = | 25Nm |
| Screw Head | = | 13mm |
