SKU: JSC051SS316-JUB

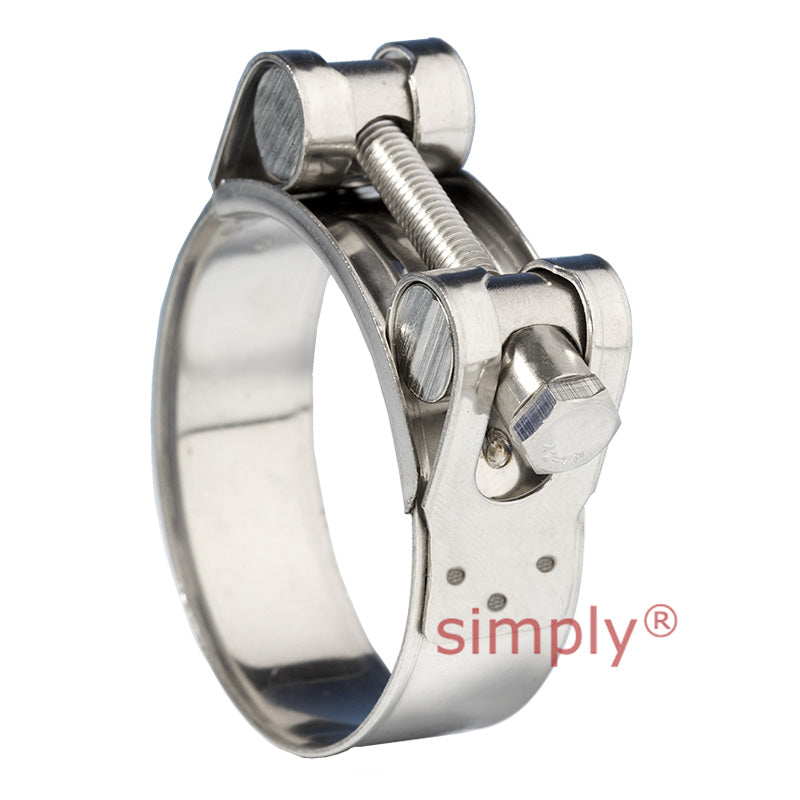

JSC051SS316 316 Stainless Steel (HNSS) Jubilee Superclamp Clip Adjustment Range 48mm - 51mm Band Width 20mm
- Regular price
- €12,95 ex VAT
- Sale price
- €12,95
- Regular price
-
Not in stock
Quantity Price Breaks
3
€11,53
5
€10,88
9
€10,75
19
€10,62
49
€10,49
74
€10,36
99
€9,71
199
€9,58
249
€9,45
499
€9,32
999
€9,07
SKU:
JSC051SS316-JUB
JSC051SS316 316 Stainless Steel (HNSS) Jubilee Superclamp Clip Adjustment Range 48mm - 51mm Band Width 20mm
- Regular price
- €12,95 ex VAT
- Sale price
- €12,95
- Regular price
-
Description
316 Stainless Steel (HNSS) Jubilee Superclamp Clips: Jubilee® Superclamps are heavy duty and suited where higher torque is required with a very tight seal such as delivery and suction hoses. Suitable for mining, quarrying, oil, gas and other offshore applications. Also suitable for waste water extraction and agricultural applications.
Benefits: High corrosion resistance, Single nut adjustment, Smooth band to protect hose line, 360 degree seal.
Technical
| Adjustment Range | = | 48mm - 51mm |
| Band Width (+/- 0.1) | = | 20mm |
| Band Thickness (+/- 0.1) | = | 1mm |
| Recommended Torque | = | 6Nm |
| Maximum Torque | = | 8Nm |
| Screw Head | = | 10mm |
