SKU: HK5024.2RS-MB

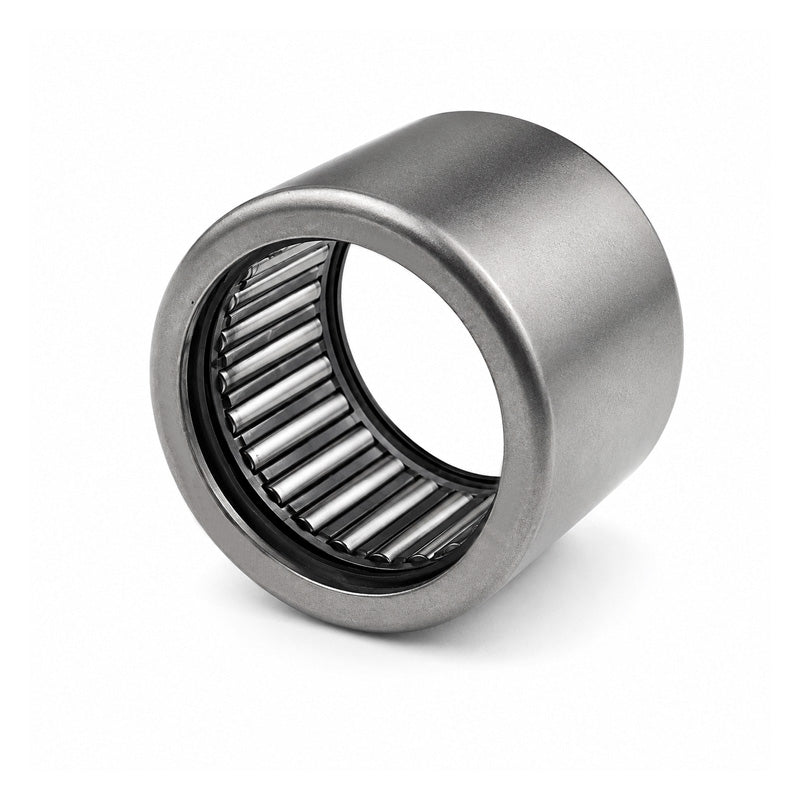

Major Brand HK50242RS Drawn Cup Type Needle Roller Rubber Sealed Bearing with Two Open Ends 50x58x24mm
- Regular price
- €37,95 ex VAT
- Sale price
- €37,95
- Regular price
-
In stock
Quantity Price Breaks
10
€33,78
19
€31,88
29
€31,50
39
€31,12
49
€30,74
74
€30,36
99
€28,46
199
€28,08
249
€27,70
499
€27,32
999
€26,57
SKU:
HK5024.2RS-MB
Major Brand HK50242RS Drawn Cup Type Needle Roller Rubber Sealed Bearing with Two Open Ends 50x58x24mm
- Regular price
- €37,95 ex VAT
- Sale price
- €37,95
- Regular price
-
Description
|
HK.. RS and HK.. 2RS Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
Technical
| Fw | = | 50mm |
| D | = | 58mm |
| C | = | 24mm |
| Dynamic load | = | 29200 N |
| Static load | = | 63000 N |
| Fatigue load limit Pu | = | 7800 N |
| Speed in grease | = | 3800 rpm |
| r1r2 min | = | 0.8mm |
| Da max | = | 53mm |
| ra max | = | 0.8mm |
| Inner ring | = | LR/IR45x50x25.5 |
| Weight | = | 81 g |
