SKU: HCFL218-56

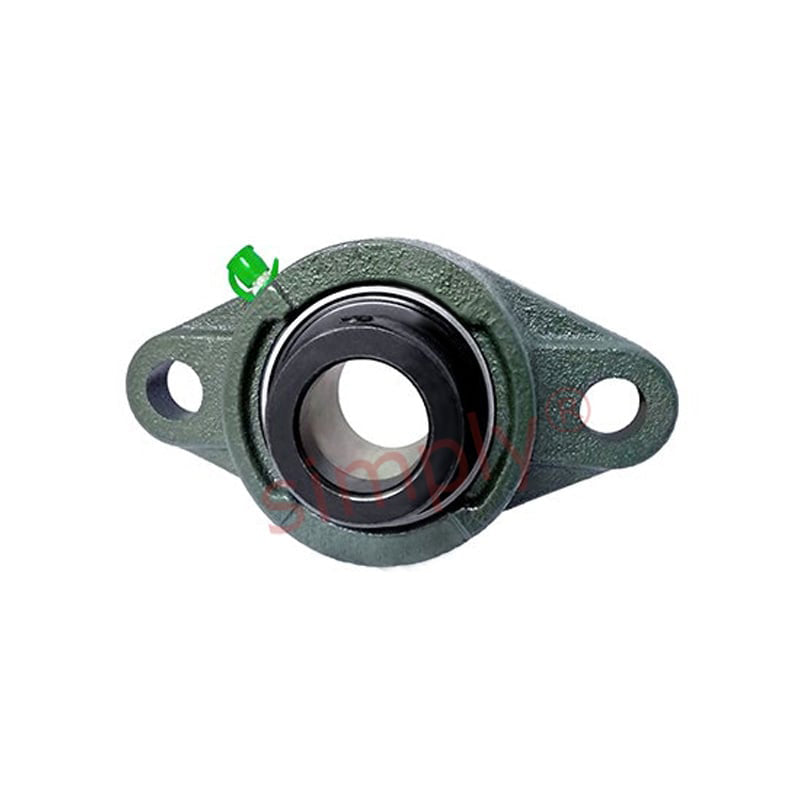

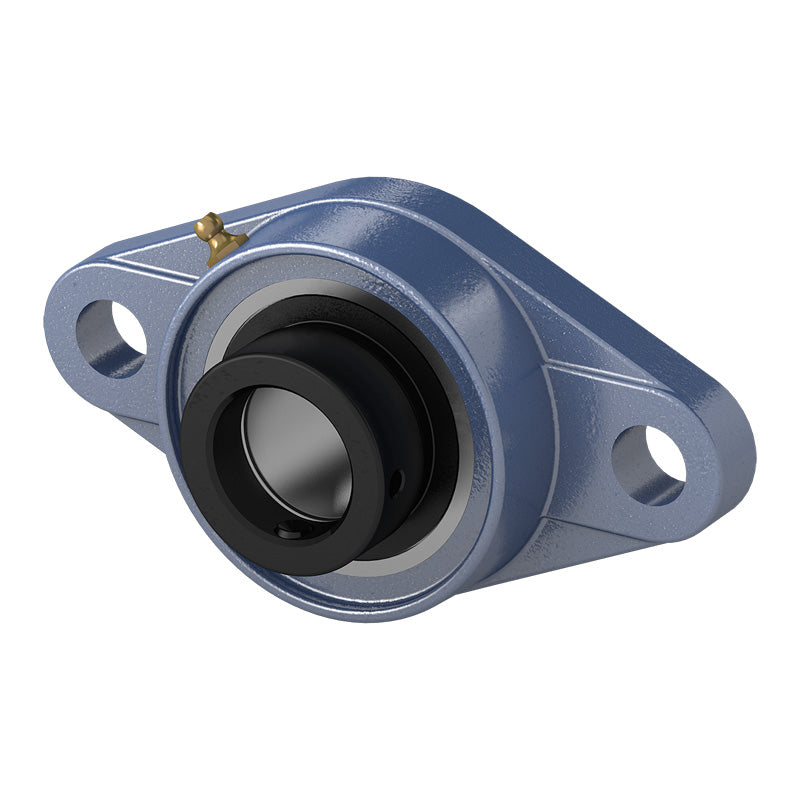

HCFL218-56 Imperial Two Bolt Cast Iron Oval Housing with 3-1/2 inch Eccentric Collar Insert
- Regular price
- €164,95 ex VAT
- Sale price
- €164,95
- Regular price
-
Not in stock
Quantity Price Breaks
3
€146,81
4
€138,56
9
€136,91
19
€135,26
49
€133,61
99
€131,96
499
€123,71
999
€122,06
1999
€120,41
2999
€118,76
4999
€115,47
SKU:
HCFL218-56
HCFL218-56 Imperial Two Bolt Cast Iron Oval Housing with 3-1/2 inch Eccentric Collar Insert
- Regular price
- €164,95 ex VAT
- Sale price
- €164,95
- Regular price
-
Description
HCFL200 Series Normal Duty 2 Bolt Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar fixing
Technical
| d | = | 3-1/2 inch |
| a | = | 12-19/32 inch |
| e | = | 10-7/16 inch |
| i | = | 1-37/64 inch |
| g | = | 15/16 inch |
| l | = | 2-11/16 inch |
| s | = | 63/64 inch |
| b | = | 8-1/16 inch |
| z | = | 8-15/32 inch |
| B1 | = | 3.7795 inch |
| n | = | 1.563 inch |
| Bolt size | = | 7/8 inch |
| Bearing no | = | HC218-56 |
| Housing no | = | FL218 |
| Weight | = | 10.0409 kg |
