SKU: HCFC214

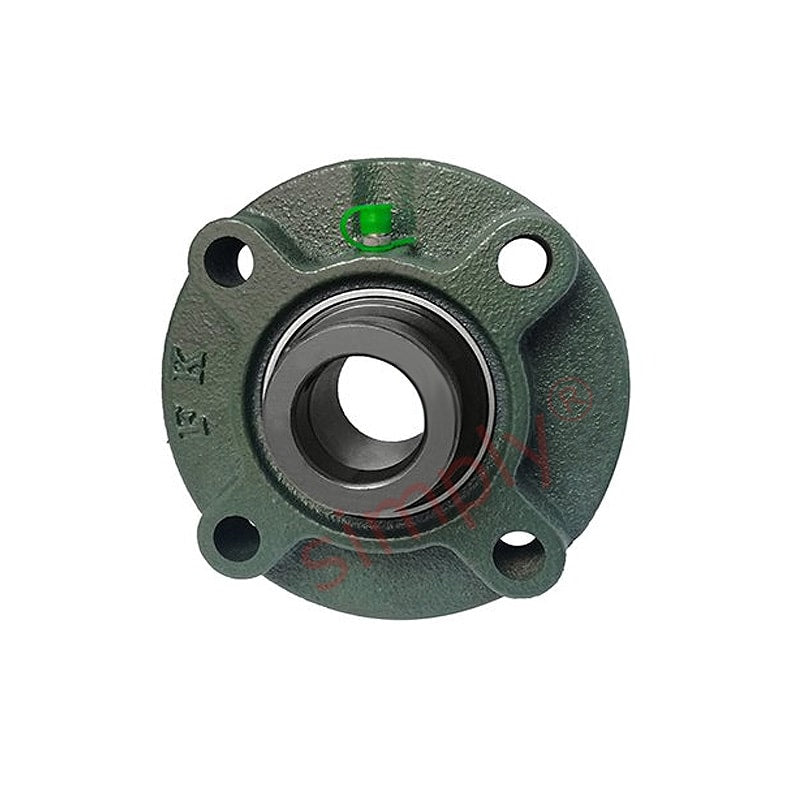

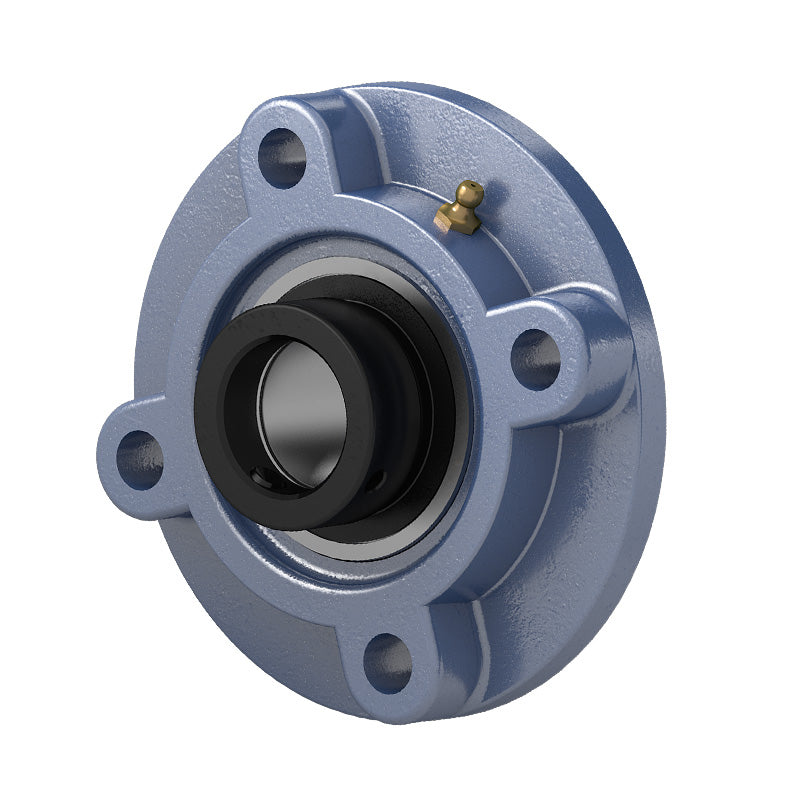

HCFC214 Metric Four Bolt Cast Iron Round Flanged Housing with 70mm Eccentric Collar Insert
- Regular price
- €95,95 ex VAT
- Sale price
- €95,95
- Regular price
-
Not in stock
Quantity Price Breaks
3
€85,40
4
€80,60
9
€79,64
19
€78,68
49
€77,72
99
€76,76
499
€71,96
999
€71,00
1999
€70,04
2999
€69,08
4999
€67,17
SKU:
HCFC214
HCFC214 Metric Four Bolt Cast Iron Round Flanged Housing with 70mm Eccentric Collar Insert
- Regular price
- €95,95 ex VAT
- Sale price
- €95,95
- Regular price
-
Description
HCFC200 Series Normal Duty 4 Bolt Round Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar / grub screw fixing
Technical
| d | = | 70mm |
| a | = | 215mm |
| p | = | 177mm |
| (e) | = | 125.1mm |
| i | = | 17mm |
| s | = | 19mm |
| j | = | 14mm |
| k | = | 18mm |
| g | = | 40mm |
| f | = | 150mm |
| z | = | 68.6mm |
| B1 | = | 85.7mm |
| n | = | 34.1mm |
| Bolt size | = | M16 |
| Bearing no | = | HC214 |
| Housing no | = | FC214 |
| Weight | = | 6.87 kg |
