SKU: HCFC211-32

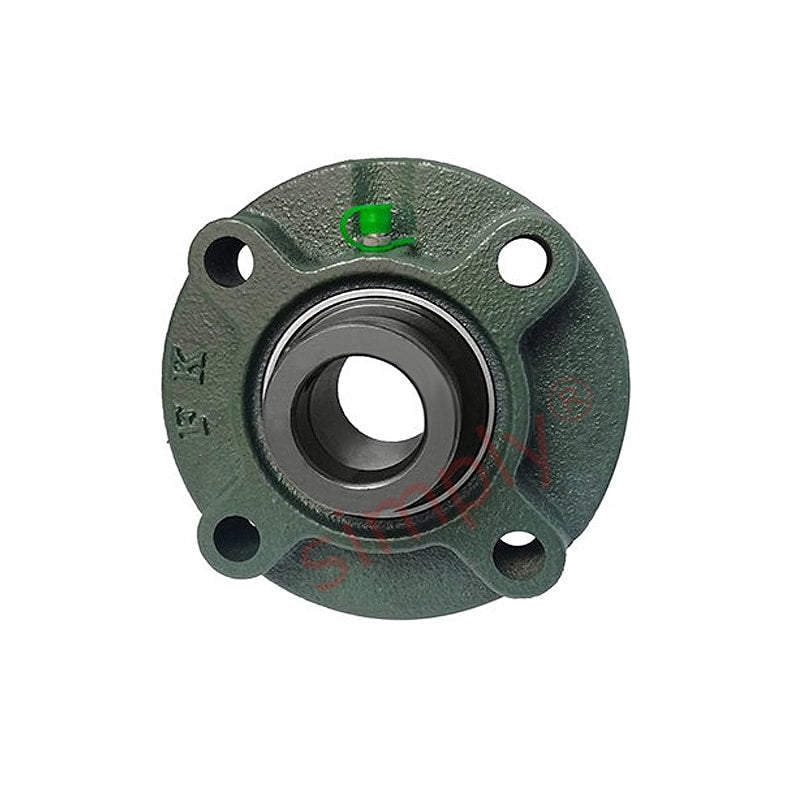

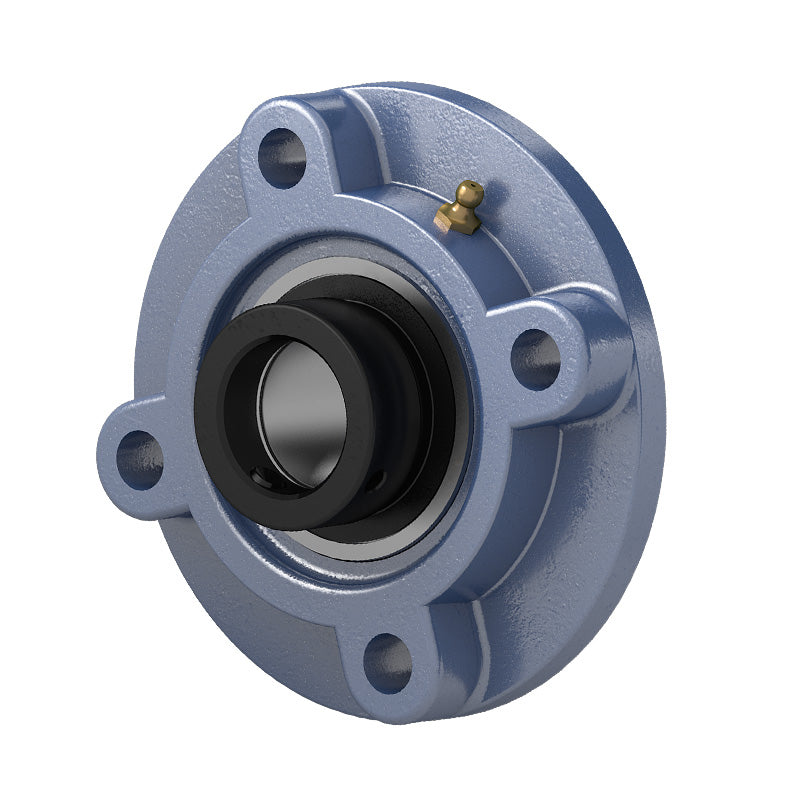

HCFC211-32 Imperial Four Bolt Cast Iron Round Flanged Housing with 2 inch Eccentric Collar Insert
- Regular price
- €50,95 ex VAT
- Sale price
- €50,95
- Regular price
-
Not in stock
Quantity Price Breaks
3
€45,35
4
€42,80
9
€42,29
19
€41,78
49
€41,27
99
€40,76
499
€38,21
999
€37,70
1999
€37,19
2999
€36,68
4999
€35,67
SKU:
HCFC211-32
HCFC211-32 Imperial Four Bolt Cast Iron Round Flanged Housing with 2 inch Eccentric Collar Insert
- Regular price
- €50,95 ex VAT
- Sale price
- €50,95
- Regular price
-
Description
HCFC200 Series Normal Duty 4 Bolt Round Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar / grub screw fixing
Technical
| d | = | 2 inch |
| a | = | 7-9/32 inch |
| p | = | 5-29/32 inch |
| (e) | = | 4-3/16 inch |
| i | = | 33/64 inch |
| s | = | 3/4 inch |
| j | = | 15/32 inch |
| k | = | 19/32 inch |
| g | = | 1-7/32 inch |
| f | = | 4.9213 inch |
| z | = | 2-15/64 inch |
| B1 | = | 2.811 inch |
| n | = | 1.094 inch |
| Bolt size | = | 5/8 inch |
| Bearing no | = | HC211-32 |
| Housing no | = | FC211 |
| Weight | = | 4.43 kg |
