SKU: GLE45-KRR-B-INA

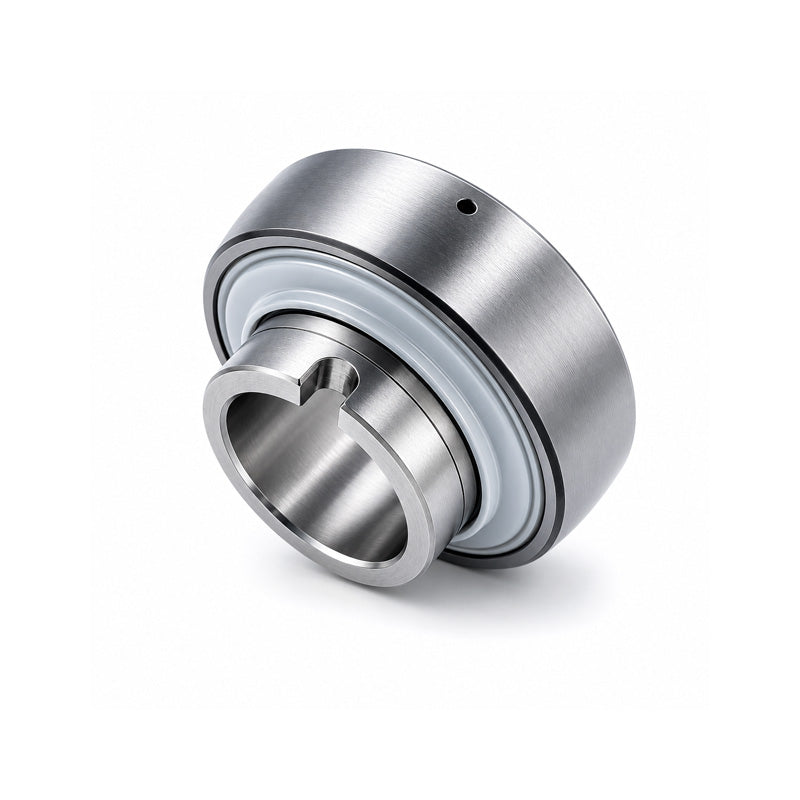

INA GLE45XLKRRB Metric Spherical Outer Bearing Insert with R Seals and Drive Slot in Inner Ring 45x85x42.9mm
- Regular price
- €80,95 ex VAT
- Sale price
- €80,95
- Regular price
-
In stock
Quantity Price Breaks
10+
€72,05
19+
€68,00
29+
€67,19
39+
€66,38
49+
€65,57
74+
€64,76
99+
€60,71
199+
€59,90
249+
€59,09
499+
€58,28
999+
€56,67
SKU:
GLE45-KRR-B-INA
INA GLE45XLKRRB Metric Spherical Outer Bearing Insert with R Seals and Drive Slot in Inner Ring 45x85x42.9mm
- Regular price
- €80,95 ex VAT
- Sale price
- €80,95
- Regular price
-
Description
|
INA GLE..KRR-B Series Inserts: Bearing insert with spherical outer race, R seals with PTFE seal lips and a drive slot in the inner ring. These non-locating bearings are to be used at low speeds and loads to compensate for thermal elongation of the shaft. Due to the slot, they are easy to locate in a radial direction. Rotation is prevented by a drive pin on the shaft or a set collar with a pin. These bearings are suitable for drawn shafts up to grade h7. The outer ring has two lubrication holes as standard. Inner rings up to a bore diameter of 60mm have a Corrotect® coating and are thus protected against fretting corrosion. Operating temperature range: -40 deg C to +180 deg C. Benefits: Can be re-lubricated, compensation of misalignment, wide temperature range. |
