SKU: GLE30-KRR-B-INA

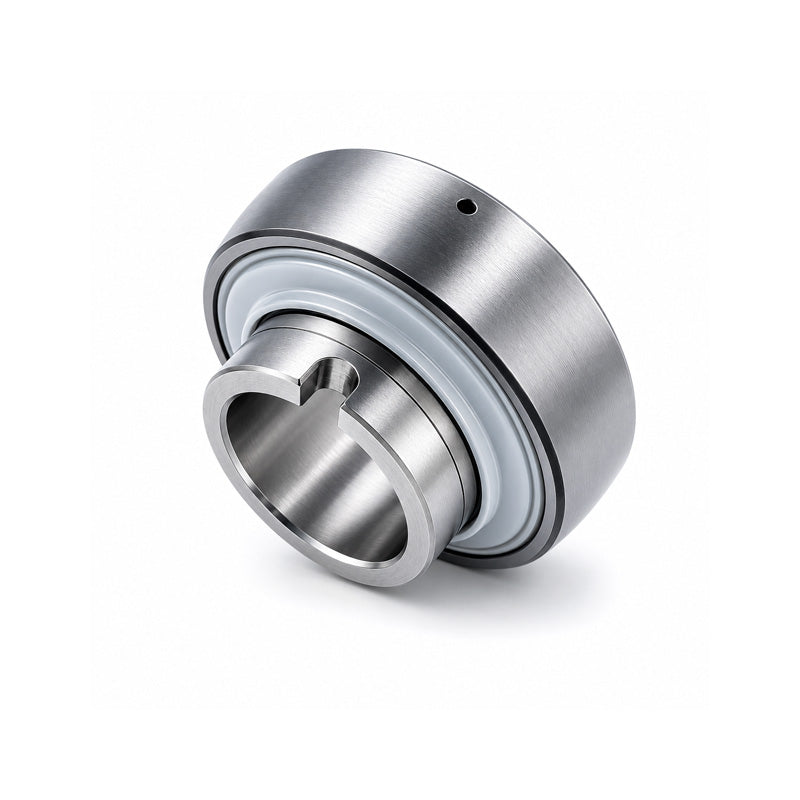

INA GLE30XLKRRB Metric Spherical Outer Bearing Insert with R Seals and Drive Slot in Inner Ring 30x62x36.5mm
- Regular price
- €49,95 ex VAT
- Sale price
- €49,95
- Regular price
-
In stock
Quantity Price Breaks
10+
€44,46
19+
€41,96
29+
€41,46
39+
€40,96
49+
€40,46
74+
€39,96
99+
€37,46
199+
€36,96
249+
€36,46
499+
€35,96
999+
€34,97
SKU:
GLE30-KRR-B-INA
INA GLE30XLKRRB Metric Spherical Outer Bearing Insert with R Seals and Drive Slot in Inner Ring 30x62x36.5mm
- Regular price
- €49,95 ex VAT
- Sale price
- €49,95
- Regular price
-
Description
|

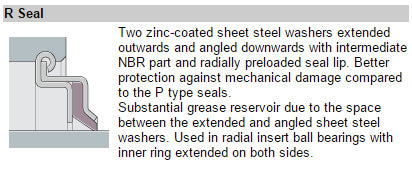

INA GLE..KRR-B Series Inserts: Bearing insert with spherical outer race, R seals with PTFE seal lips and a drive slot in the inner ring. These non-locating bearings are to be used at low speeds and loads to compensate for thermal elongation of the shaft. Due to the slot, they are easy to locate in a radial direction. Rotation is prevented by a drive pin on the shaft or a set collar with a pin. These bearings are suitable for drawn shafts up to grade h7. The outer ring has two lubrication holes as standard. Inner rings up to a bore diameter of 60mm have a Corrotect® coating and are thus protected against fretting corrosion. Operating temperature range: -40 deg C to +180 deg C. Benefits: Can be re-lubricated, compensation of misalignment, wide temperature range. |
