SKU: GIXS12-FLURO

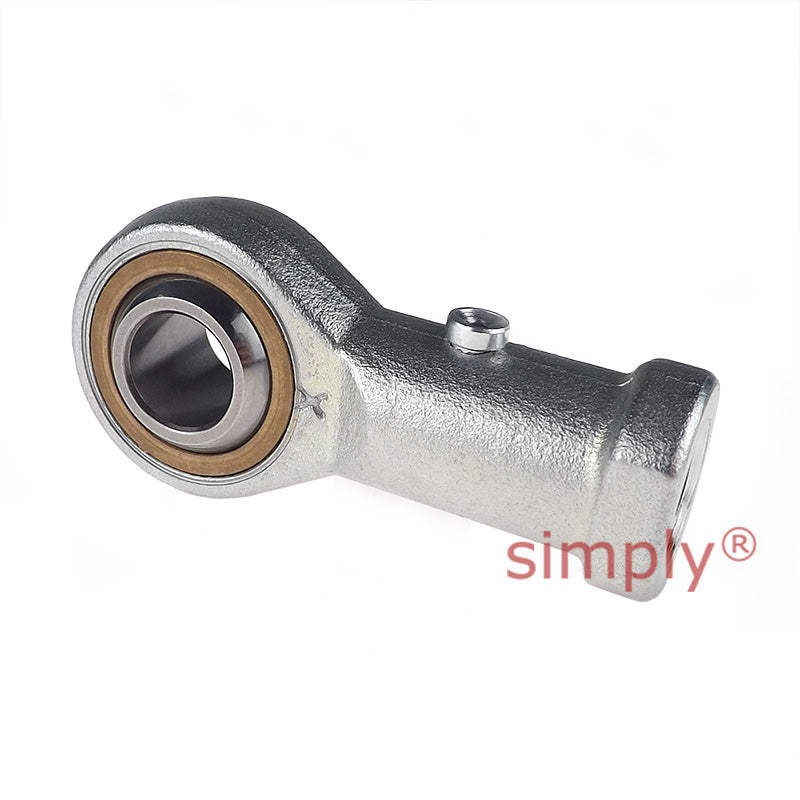

Fluro GIXS12 Right Hand Steel / Bronze Female Plain Rod End M12 Thread
- Regular price
- €43,95 ex VAT
- Sale price
- €43,95
- Regular price
-
In stock
Quantity Price Breaks
3
€39,12
5
€36,92
9
€36,48
19
€36,04
49
€35,60
74
€35,16
99
€32,96
199
€32,52
249
€32,08
499
€31,64
999
€30,77
SKU:
GIXS12-FLURO
Fluro GIXS12 Right Hand Steel / Bronze Female Plain Rod End M12 Thread
- Regular price
- €43,95 ex VAT
- Sale price
- €43,95
- Regular price
-
Description
Fluro GIXS Series Steel / Bronze Maintenance Required Female Plain Rod Ends: Rod Ends with female thread made from heat-treated steel, zinc plated and regreasable through a grease nipple in housing. Especially suitable for high pressure and tension loads.
Benefits: Grease nipple for easy re-greasing

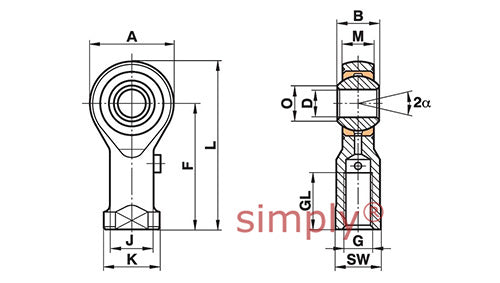

Technical
| Bore Size D | = | 12mm |
| B | = | 16mm |
| M | = | 12mm |
| A | = | 32mm |
| F | = | 50mm |
| L | = | 66mm |
| K | = | 22mm |
| J | = | 17.5mm |
| O | = | 15.4mm |
| SW | = | 19mm |
| Thread Size G | = | M12 |
| GL | = | 22mm |
| Static Load Co | = | 42kN |
| Dynamic Load | = | 13.3kN |
| Limiting Speed | = | 860rev/min |
| Approx weight | = | 0.115kg |
