SKU: FY1.1/2TF/VA201-SKF

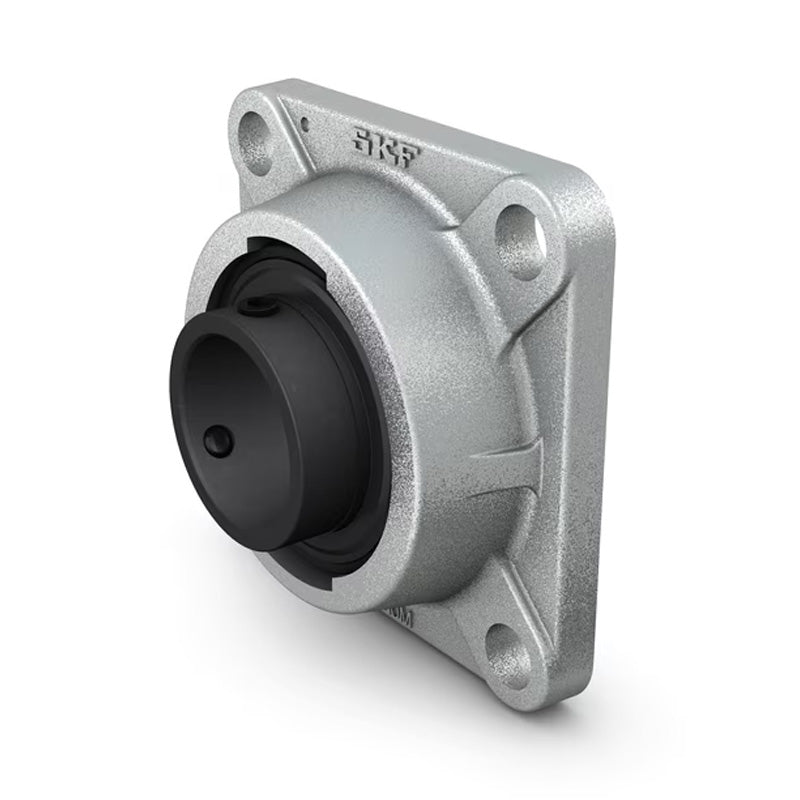

SKF FY1-1/2TF/VA201 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Steel Cage Insert for Imperial Shaft 1-1/2inch
- Regular price
- €296,95 ex VAT
- Sale price
- €296,95
- Regular price
-
In stock
Quantity Price Breaks
10+
€264,29
19+
€249,44
29+
€246,47
39+
€243,50
49+
€240,53
74+
€237,56
99+
€222,71
199+
€219,74
249+
€216,77
499+
€213,80
999+
€207,87
SKU:
FY1.1/2TF/VA201-SKF
SKF FY1-1/2TF/VA201 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Steel Cage Insert for Imperial Shaft 1-1/2inch
- Regular price
- €296,95 ex VAT
- Sale price
- €296,95
- Regular price
-
Description
|
SKF High Temperature Housings and Bearing Inserts: VA201 have a grey cast iron housing and have steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts.They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -40 to +250 deg Celsius |
Technical
| d | = | 1-1/2 inch |
| A1 | = | 38.5mm |
| A2 | = | 14mm |
| B | = | 49.2mm |
| J | = | 101.5mm |
| L | = | 130mm |
| N | = | 14.3mm |
| G | = | 12mm |
| T | = | 54.2mm |
| Dynamic load C | = | 30.7 kN |
| Static load Co | = | 19 kN |
| Weight | = | 1.94 kg |
