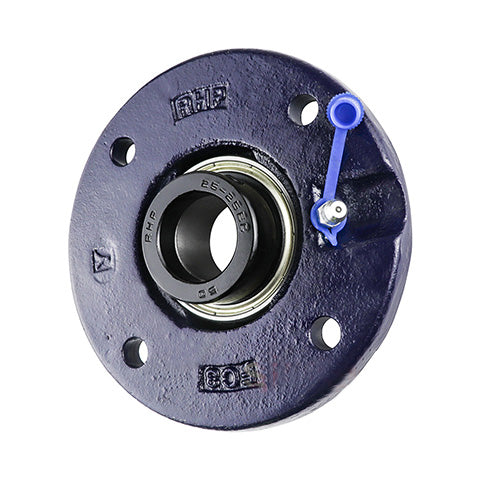

RHP FC60DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 60mm Insert

SKU: FC60DEC-RHP

RHP FC60DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 60mm Insert

€199,95 ex VAT
€199,95
ex VAT
In stock

Quantity Price Breaks

10+ €177,96
19+ €167,96
29+ €165,96
39+ €163,96
49+ €161,96
74+ €159,96
99+ €149,96
199+ €147,96
249+ €145,96
499+ €143,96
999+ €139,97
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
RHP FC60DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 60mm Insert
SKU: FC60DEC-RHP

RHP FC60DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 60mm Insert

€199,95 ex VAT
€199,95
ex VAT

Description

RHP FC DEC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, eccentric collar fixing, full width insert

Technical

Bore = 60mm
L = 195mm
H = 135mm
J = 160mm
G = 16mm
A = 29mm
A3 = 45.89mm
A5 = 16mm
B3 = 77.82mm
s2 = 31.02mm
d2 = 84.12mm
Dynamic load = 48000 N
Static load = 33000 N
Rec max speed = 2800 rpm
Weight = 4.7 kg
Insert = <
a href=" = advanced_search_result.php?keywords=1060-60DECG+insonly"
> = 1060-60DECG Click Here<
/a> =
Casting group = 10
Grease nipple thread = 1/4 UNF, 1/4 inch x 28 TPI
