SKU: EM45-20-501-DURB

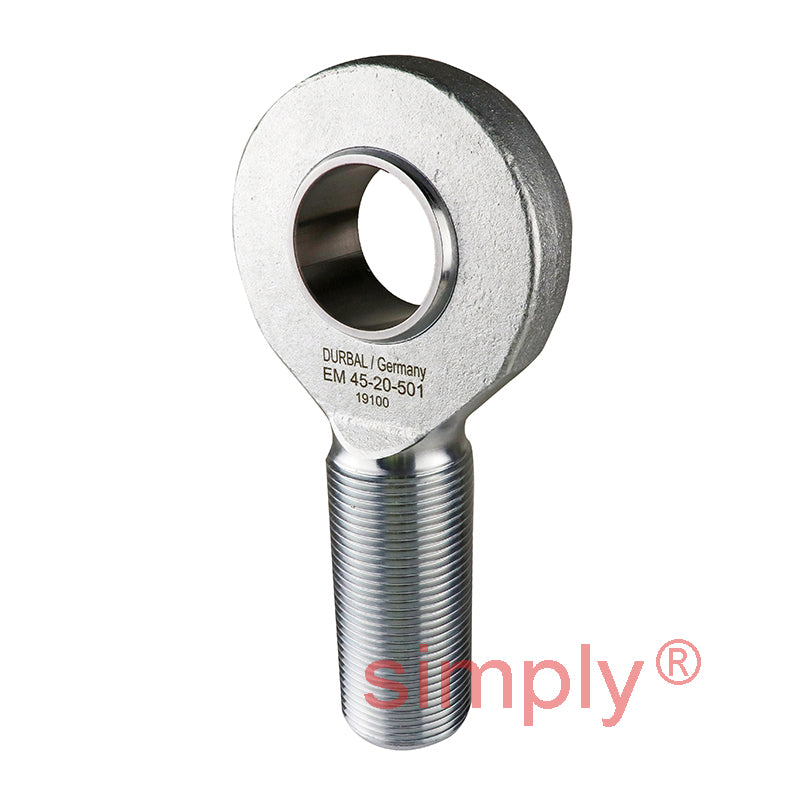

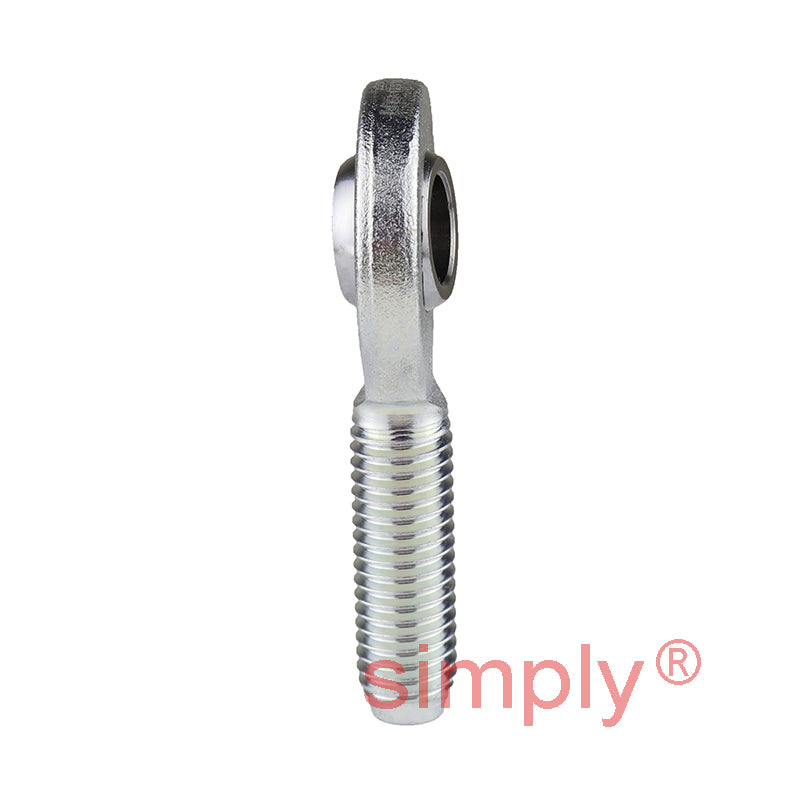

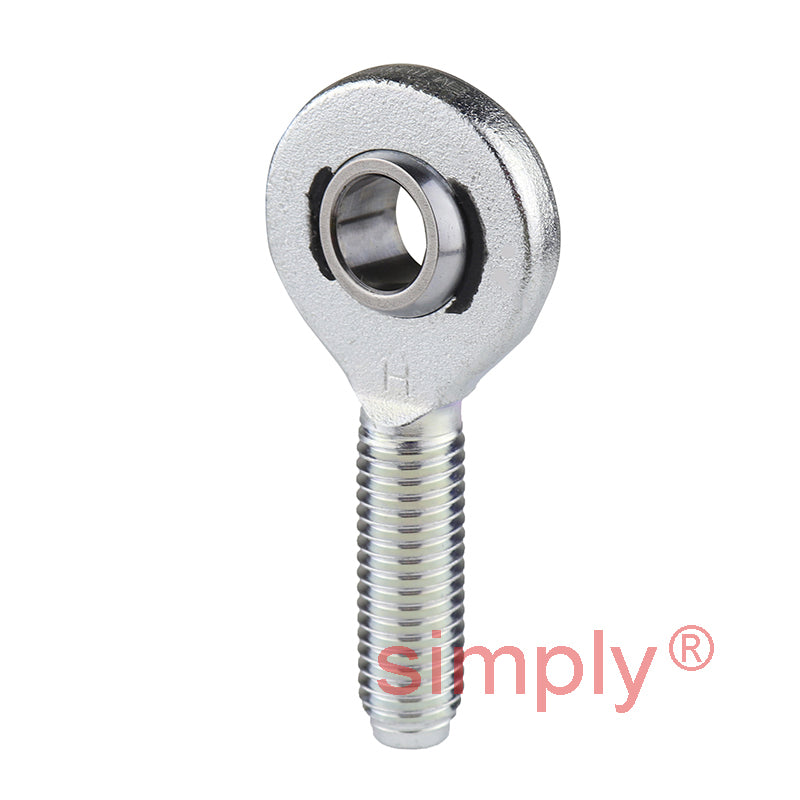

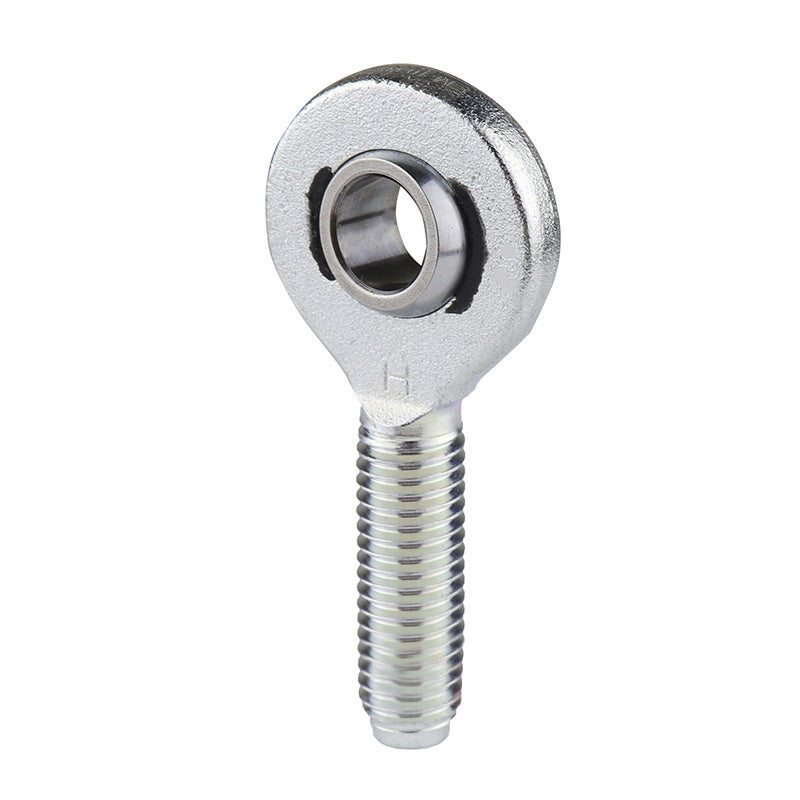

Durbal EM45-20-501 Maintenance Free Right Hand Metric Steel / PTFE Lined Male Rod End M45x3 Thread
- Regular price
- €347,95 ex VAT
- Sale price
- €347,95
- Regular price
-
Quantity Price Breaks
Durbal EM45-20-501 Maintenance Free Right Hand Metric Steel / PTFE Lined Male Rod End M45x3 Thread
- Regular price
- €347,95 ex VAT
- Sale price
- €347,95
- Regular price
-
Description
DURBAL Heavy-Duty Male Rod Ends with Integral Spherical-Plain Bearing: Threaded male rod end consisting of a galvanised forged steel housing with a polyamide-PTFE-fibreglass-compound race and chromium-plated steel joint ball bearing. DURBAL-Glide (race) made of polyamide-PTFE-glass fibre compound, maintenance-free, encapsulates penetrating foreign particles. This fact and the greater overlay thickness compared to other sliding materials assure longer durability. Joint ball made of ball bearing steel, hardened, ground, polished and hard chromium plated, ensures reliable corrosion protection. Made of forged steel, tempered, extremely high loads resistant and protected against corrosion by galvanisation. Temperature range: -30 deg C to +60 deg C.
Benefits: Radial clearance 0 – 10 µm, Suitable for use with impact loads, For use with small swivelling movements and at low speeds, Free from non-ferrous metals.
