SKU: EFN40-21-501-DURB

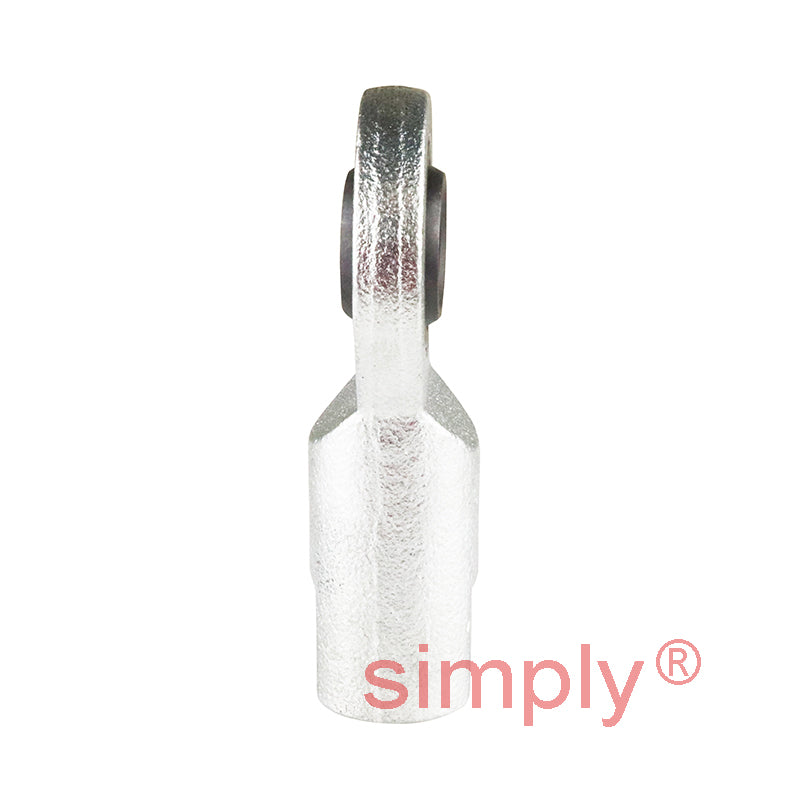

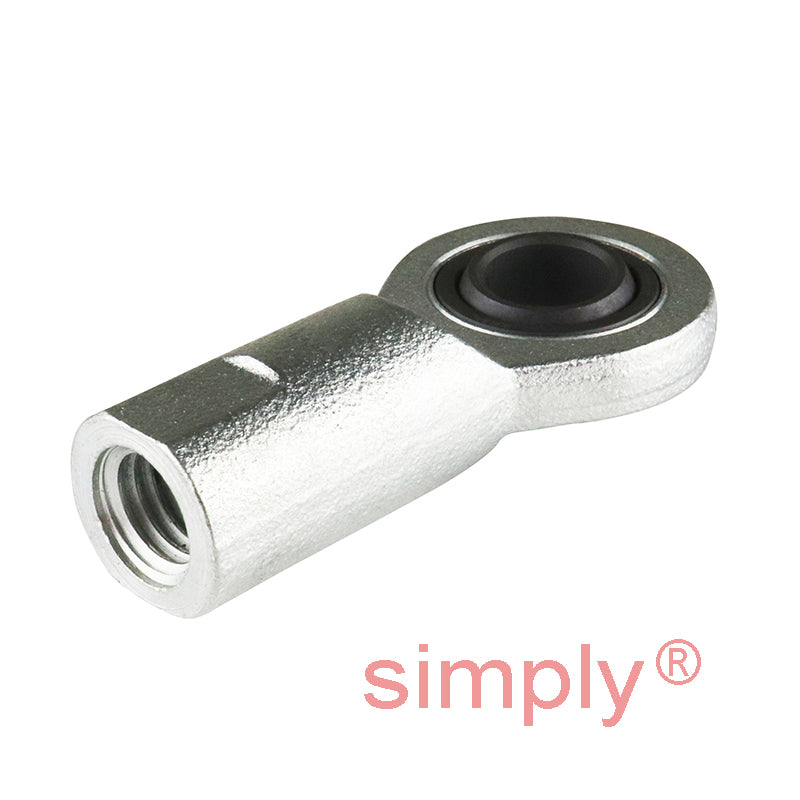

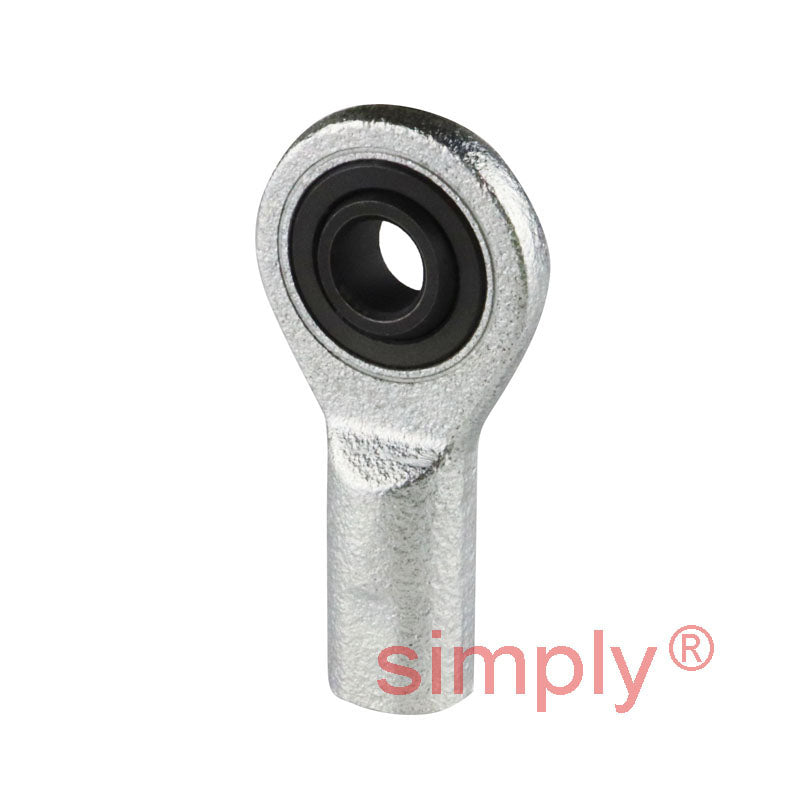

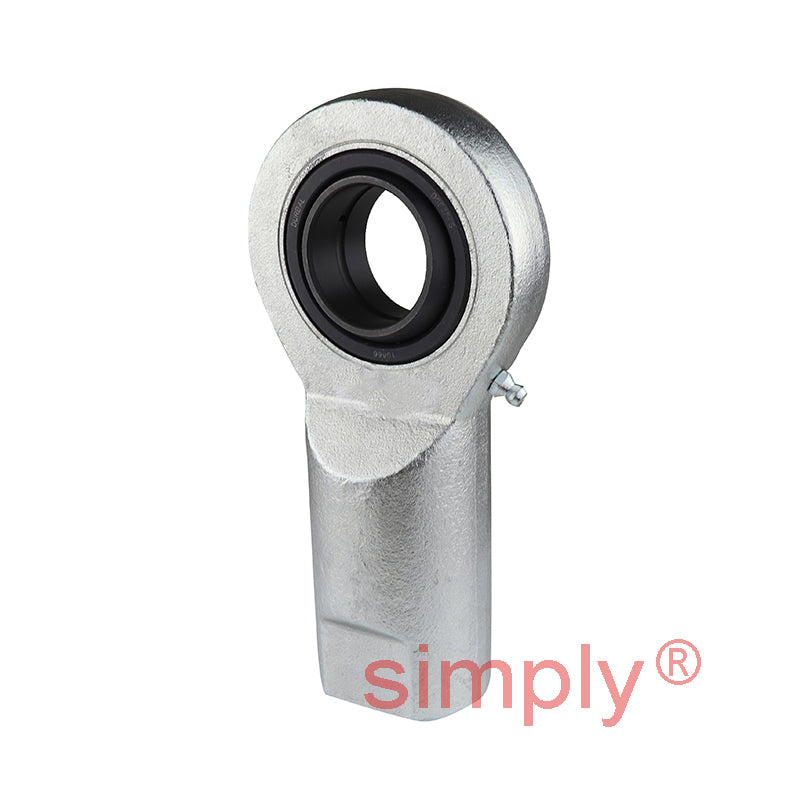

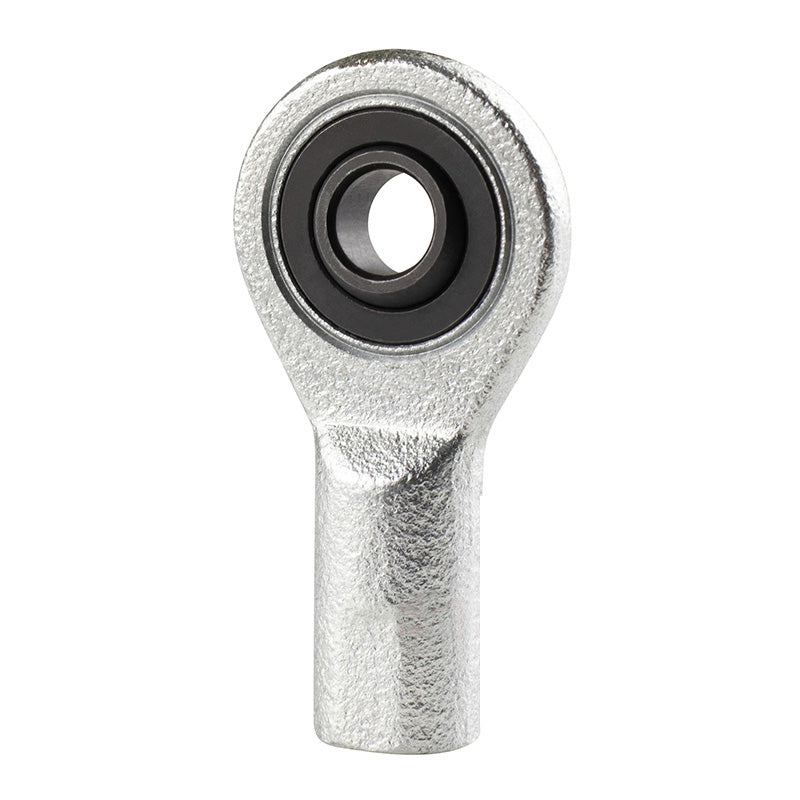

Durbal EFN40-21-501 Maintenance Required Right Hand Metric Steel Female Rod End M39x3 Thread
- Regular price
- €202,95 ex VAT
- Sale price
- €202,95
- Regular price
-
In stock
Quantity Price Breaks
10
€180,63
19
€170,48
29
€168,45
39
€166,42
49
€164,39
74
€162,36
99
€152,21
199
€150,18
249
€148,15
499
€146,12
999
€142,07
SKU:
EFN40-21-501-DURB
Durbal EFN40-21-501 Maintenance Required Right Hand Metric Steel Female Rod End M39x3 Thread
- Regular price
- €202,95 ex VAT
- Sale price
- €202,95
- Regular price
-

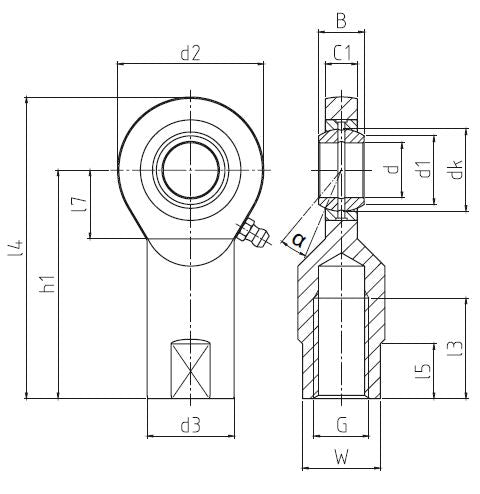

Technical
| Thread Direction | = | -501 (Right) |
| d | = | 40mm |
| G (Thread) | = | M39x3mm |
| B | = | 28mm |
| C1 | = | 22mm |
| h1 | = | 142mm |
| d1 | = | 45mm |
| d2 | = | 92mm |
| d3 | = | 52mm |
| dk | = | 53mm |
| l3 | = | 66mm |
| l4 | = | 188mm |
| l5 | = | 24.5mm |
| l7 | = | 42mm |
| W | = | 46mm |
| tilt angle & | = | alpha |
| = | 7 deg | |
| weight | = | 1.8kg |
| basic load rating dyn C | = | 86 kN |
| basic load rating stat Co | = | 180 kN |
| radial clearance CN | = | 40-120 & |
| micro | = | m |
