SKU: DL80/48-48X87X79

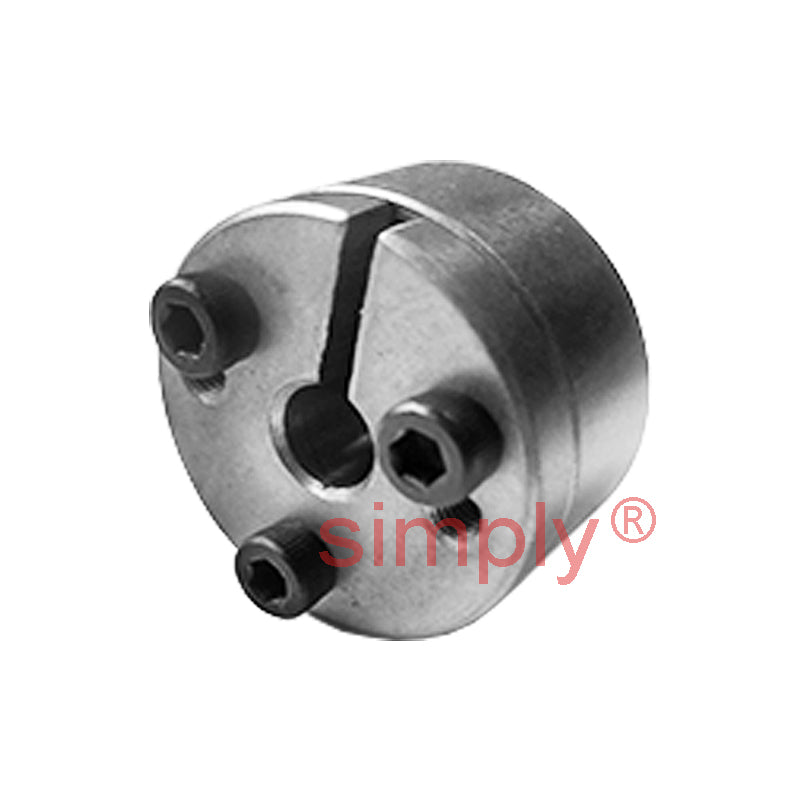

Major Branded DL80/48 Steel DRIVELOCK Bush 48x87x79mm - Allow 2-3 Days
- Regular price
- €38,95 ex VAT
- Sale price
- €38,95
- Regular price
-
Not in stock
Quantity Price Breaks
3
€34,67
5
€32,72
9
€32,33
19
€31,94
49
€31,55
74
€31,16
99
€29,21
199
€28,82
249
€28,43
499
€28,04
999
€27,27
SKU:
DL80/48-48X87X79
Major Branded DL80/48 Steel DRIVELOCK Bush 48x87x79mm - Allow 2-3 Days
- Regular price
- €38,95 ex VAT
- Sale price
- €38,95
- Regular price
-
Description
DRIVELOCK 80 Bushes: These bushes are designed for thin-walled hubs with a self-centering mechanism that ensures precise alignment and stability. They handle high torques from 12 to 14,800 Nm, making them suitable for demanding applications. Available in bore sizes from 6mm to 100mm, with options for imperial sizes, these bushes provide versatility and reliable performance across various machinery and equipment.
Benefits: Ideal for thin-walled hubs, high torque capacity, versatility in bore sizes

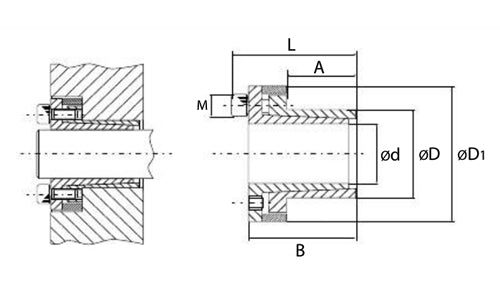

Technical
| Material | = | Steel |
| d | = | 48mm |
| D | = | 62mm |
| D1 | = | 87mm |
| A | = | 45mm |
| B | = | 71mm |
| L | = | 79mm |
| M (screws) | = | M8 |
| Ts | = | 41 Nm |
| T | = | 1824 Nm |
| F | = | 76 kN |
| p | = | 72 N/mm2 |
| Shaft | = | h8 |
| Hub | = | H8 |
| Weight Kg | = | 1.24 kg |
