SKU: DL19/30-25X60X25

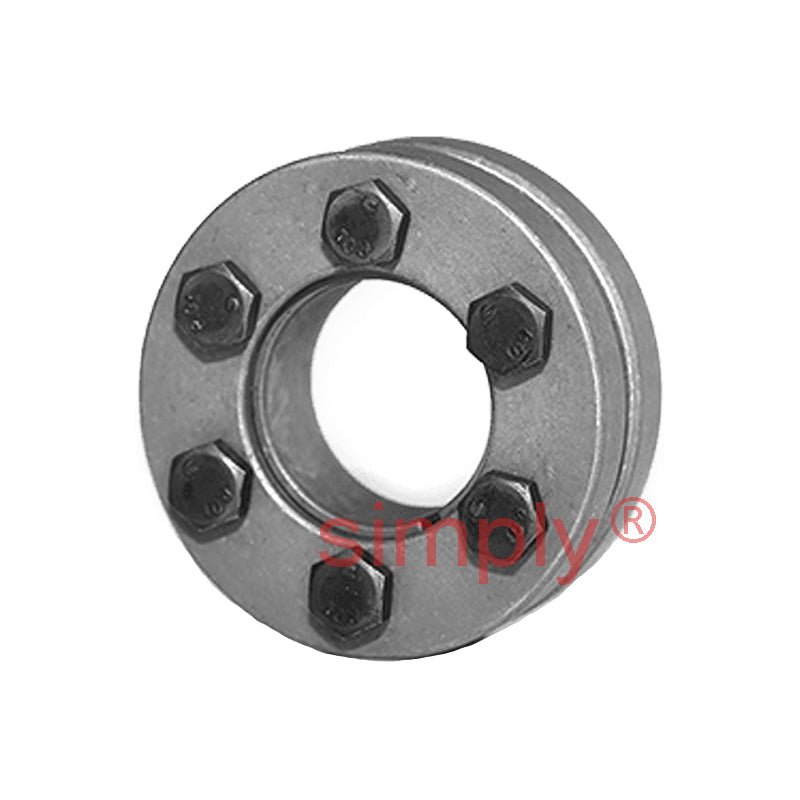

Major Branded DL19/30 Steel DRIVELOCK Bush 25x60x25mm - Allow 2-3 Days
- Regular price
- €35,95 ex VAT
- Sale price
- €35,95
- Regular price
-
Quantity Price Breaks
Major Branded DL19/30 Steel DRIVELOCK Bush 25x60x25mm - Allow 2-3 Days
- Regular price
- €35,95 ex VAT
- Sale price
- €35,95
- Regular price
-
Description
DRIVELOCK 19 Bushes: These bushes are engineered for superior concentricity and reliable external clamping, making them ideal for secure shaft-hub connections in demanding applications. Designed to handle medium to high torques ranging from 170 to 39,000 Nm, these bushes are suitable for a variety of heavy-duty uses. They come in bore sizes from 24mm to 165mm and are also available in imperial sizes upon request. The exceptional concentricity of DRIVELOCK 19 Bushes ensures precise alignment, reducing mechanical stress and vibration, thereby enhancing performance and extending the lifespan of your equipment.
Benefits: Excellent concentricity, high torque handling, versatility in bore sizes
Technical
| Material | = | Steel |
| d2 | = | 30mm |
| D | = | 60mm |
| d1 | = | 25mm |
| M (screws) | = | M5 |
| I | = | 16mm |
| B | = | 21.5mm |
| L | = | 25mm |
| Ts | = | 4 Nm |
| T | = | 340 Nm |
| F | = | 31 kN |
| Shaft | = | h8 |
| Hub | = | H8 |
| Weight Kg | = | 0.3 kg |
