SKU:
DHI-12

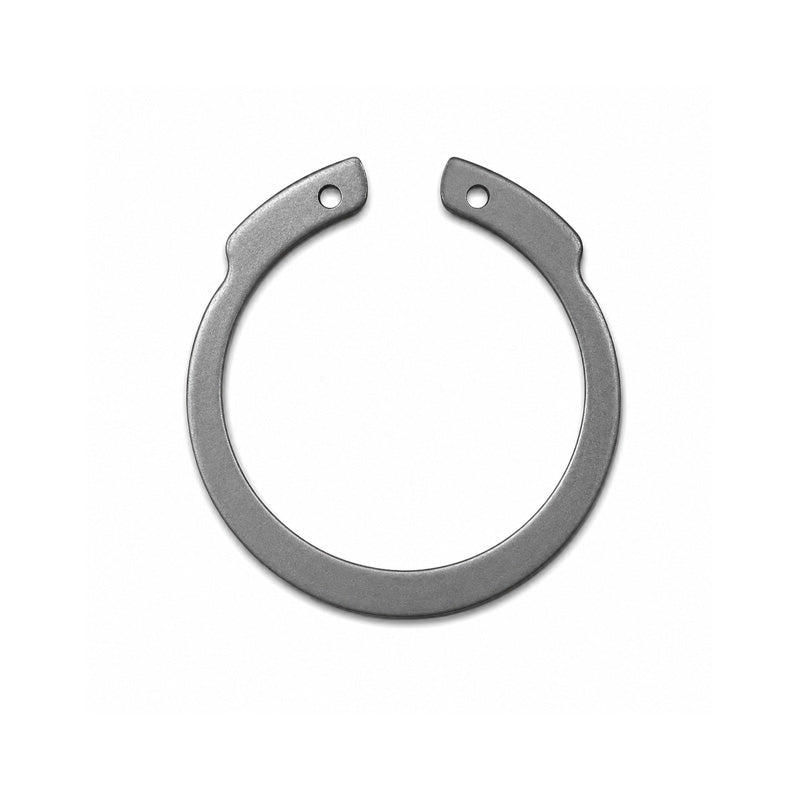

Inverted Internal Circlip 12mm Diameter Un-Sprung Diameter 13.1mm
- Regular price
- €1,95 ex VAT
- Sale price
- €1,95
- Regular price
-
Description
Inverted Internal Circlips: These circlips are axially assembled and suitable for bores with grooves.
This circlip has a large free diameter and gap width, consequently, it fits more tightly into the groove and provides higher and more uniform thrust load capacity. The lugs on these circlips are "reversed" and have a reduced distance between the lugs.
Benefits: Cost effective replacement, durable, removable.

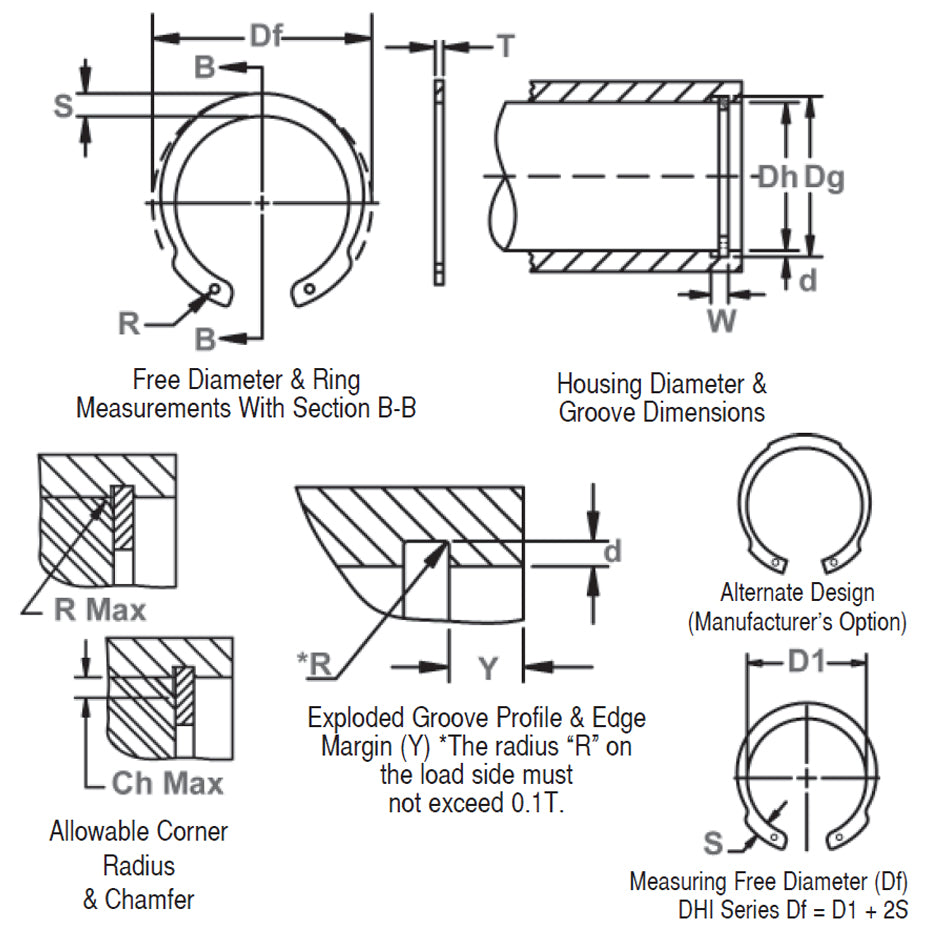

Technical
| --- | = | Housing Diameter |
| Dh - Metric | = | 12mm |
| --- | = | Groove Size |
| Dg - Diameter | = | 12.6mm |
| Diameter Tolerance | = | +0.11mm |
| W min - Width | = | 0.7mm |
| d - Depth | = | 0.3mm |
| --- | = | Circlip Size and Weight |
| T - Thickness | = | 0.6mm |
| Thickness Tolerance | = | -0.05mm |
| Df - Free Diameter | = | 13.1mm |
| Free Diameter Tolerance | = | +.042 to -.013mm |
| S - Maximum Section | = | 1.8mm |
| Maximum Section Tolerance | = | +0.1mm |
| Hole Diameter | = | 1mm |
| Weight (1000pcs) kg | = | 0.25kg |
| --- | = | Supplementary Data |
| Y - Edge Margin | = | 0.9mm |
| Pr - Thrust Load Ring | = | 1.8mm |
| Pg - Thrust Load Groove | = | 0.75mm |
| R/Ch Max - Allowable Radius/Chamfer | = | 0.8mm |
| P" | = | r - Maximum Load with Radius/Chamfer |
| 1mm | = | N/A |
