SKU: CNBH-22-S
Major Brand CNBH22S Heavy Duty Sealed and Slotted Cylindrical Cam Follower 11/16 inch Outside Diameter Allow 7-10 Days
- Regular price
- €41,95 ex VAT
- Sale price
- €41,95
- Regular price
-
Not in stock
Quantity Price Breaks
3
€37,34
4
€35,24
9
€34,82
19
€34,40
29
€33,98
39
€33,56
49
€31,46
59
€31,04
249
€30,62
499
€30,20
999
€29,37
SKU:
CNBH-22-S
Major Brand CNBH22S Heavy Duty Sealed and Slotted Cylindrical Cam Follower 11/16 inch Outside Diameter Allow 7-10 Days
- Regular price
- €41,95 ex VAT
- Sale price
- €41,95
- Regular price
-
Description
|

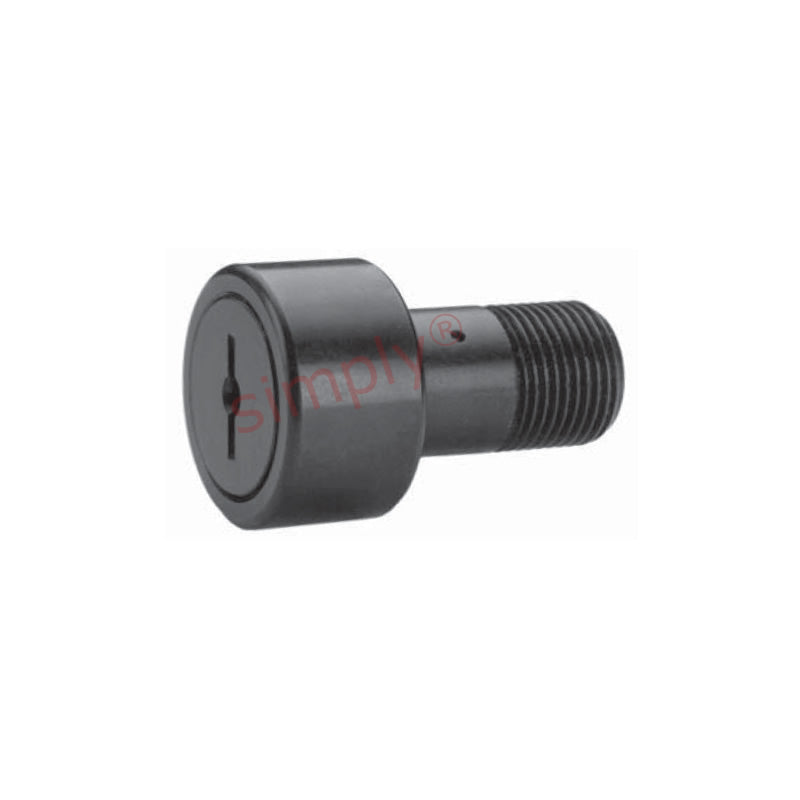

Heavy Duty Sealed Cam Follower with Slotted Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock, sealed to help prevent contamination and retain lubrication. |
Technical
| A | = | 0.6875 inch |
| B | = | 0.4375 inch |
| C | = | 0.3125 inch |
| D | = | 0.75 inch |
| E | = | 0.312 inch |
| Thread class 2A F | = | 5/16-24 UNF |
| J | = | 1/8 inch |
| Min boss diameter | = | 15/32 inch |
| Recommended bore | = | 0.3125 inch |
| Recommended torque | = | 90 lbf-in |
| Max static capacity | = | 2480 lbs |
| Basic dynamic rating | = | 955 lbs |
