SKU: CNBH-22-B

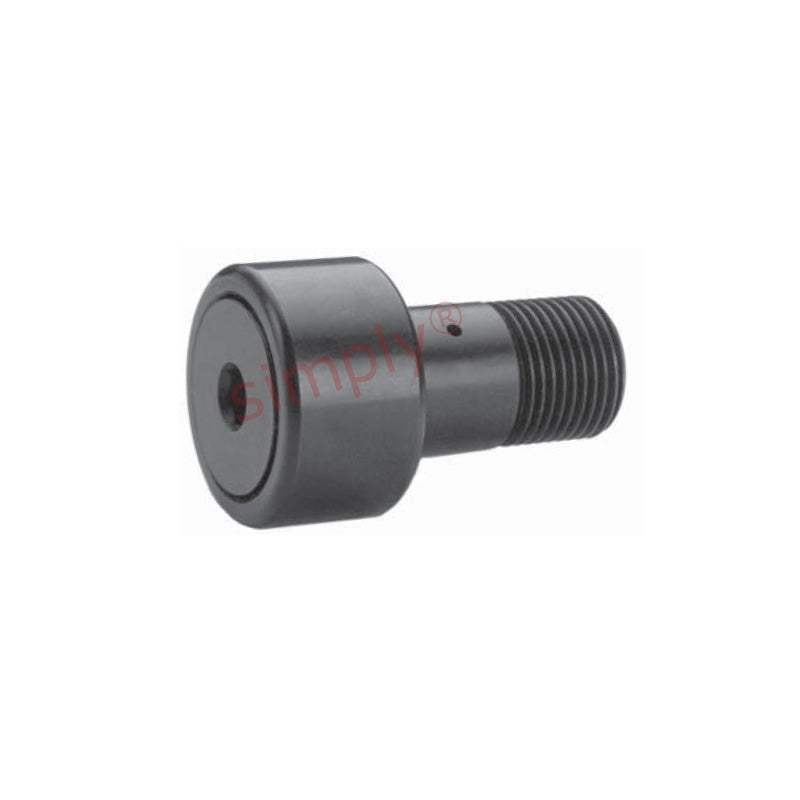

Major Brand CNBH22B Heavy Duty Hex Head Cylindrical Cam Follower 11/16 inch Outside Diameter Allow 7-10 Days
- Regular price
- €42,95 ex VAT
- Sale price
- €42,95
- Regular price
-
Not in stock
Quantity Price Breaks
3
€38,23
4
€36,08
9
€35,65
19
€35,22
29
€34,79
39
€34,36
49
€32,21
59
€31,78
249
€31,35
499
€30,92
999
€30,07
SKU:
CNBH-22-B
Major Brand CNBH22B Heavy Duty Hex Head Cylindrical Cam Follower 11/16 inch Outside Diameter Allow 7-10 Days
- Regular price
- €42,95 ex VAT
- Sale price
- €42,95
- Regular price
-
Description
|
Heavy Duty Cam Follower with Hex Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock, provides ease of installing with a hex wrench. |

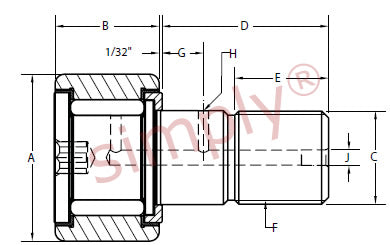

Technical
| A | = | 0.6875 inch |
| B | = | 0.4375 inch |
| C | = | 0.3125 inch |
| D | = | 0.75 inch |
| E | = | 0.312 inch |
| Thread class 2A F | = | 5/16-24 UNF |
| J | = | 1/8 inch |
| Min boss diameter | = | 15/32 inch |
| Recommended bore | = | 0.3125 inch |
| Recommended torque | = | 90 lbf-in |
| Max static capacity | = | 2480 lbs |
| Basic dynamic rating | = | 955 lbs |
