SKU: CNB-96-S
Major Brand CNB96S Sealed and Slotted Cylindrical Cam Follower 3 inch Outside Diameter
- Regular price
- €223,95 ex VAT
- Sale price
- €223,95
- Regular price
-
Not in stock
Quantity Price Breaks
3
€199,32
4
€188,12
9
€185,88
19
€183,64
29
€181,40
39
€179,16
49
€167,96
59
€165,72
249
€163,48
499
€161,24
999
€156,77
SKU:
CNB-96-S
Major Brand CNB96S Sealed and Slotted Cylindrical Cam Follower 3 inch Outside Diameter
- Regular price
- €223,95 ex VAT
- Sale price
- €223,95
- Regular price
-
Description
|
Sealed Cam Follower with Slotted Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock, sealed to help prevent contamination and retain lubrication. |

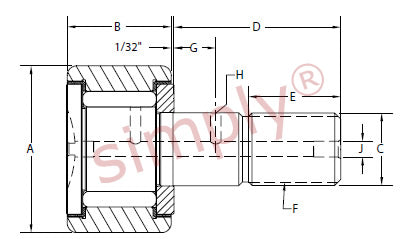

Technical
| A | = | 3 inch |
| B | = | 1.75 inch |
| C | = | 1.25 inch |
| D | = | 2.5 inch |
| E | = | 1.25 inch |
| Thread class 2A F | = | 1-1/4-12 UNF |
| G | = | 5/8 inch |
| H | = | 1/8 inch |
| J | = | 1/4 inch |
| Min boss diameter | = | 1-3/4 inch |
| Recommended bore | = | 1.25 inch |
| Recommended torque | = | 3450 lbf-in |
| Max static capacity | = | 24910 lbs |
| Basic dynamic rating | = | 15720 lbs |
