SKU: CNB-52-SB
Major Brand CNB52SB Hex Head Sealed Cylindrical Cam Follower 1-5/8 inch Outside Diameter
- Regular price
- €66,95 ex VAT
- Sale price
- €66,95
- Regular price
-
Not in stock
Quantity Price Breaks
3
€59,59
4
€56,24
9
€55,57
19
€54,90
29
€54,23
39
€53,56
49
€50,21
59
€49,54
249
€48,87
499
€48,20
999
€46,87
SKU:
CNB-52-SB
Major Brand CNB52SB Hex Head Sealed Cylindrical Cam Follower 1-5/8 inch Outside Diameter
- Regular price
- €66,95 ex VAT
- Sale price
- €66,95
- Regular price
-
Description
|
Sealed Cam Follower with Hex Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock, sealed to help prevent contamination and retain lubrication, provides ease of installing with a hex wrench. |

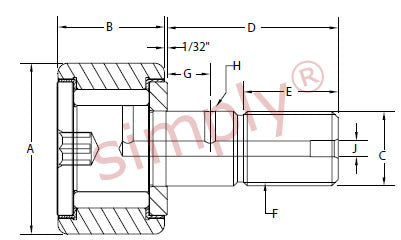

Technical
| A | = | 1.625 inch |
| B | = | 0.875 inch |
| C | = | 0.625 inch |
| D | = | 1.5 inch |
| E | = | 0.75 inch |
| Thread class 2A F | = | 5/8-18 UNF |
| G | = | 3/8 inch |
| H | = | 3/32 inch |
| J | = | 3/16 inch |
| Min boss diameter | = | 57/64 inch |
| Recommended bore | = | 0.625 inch |
| Recommended torque | = | 650 lbf-in |
| Max static capacity | = | 5640 lbs |
| Basic dynamic rating | = | 4840 lbs |
