SKU: CNB-48-S

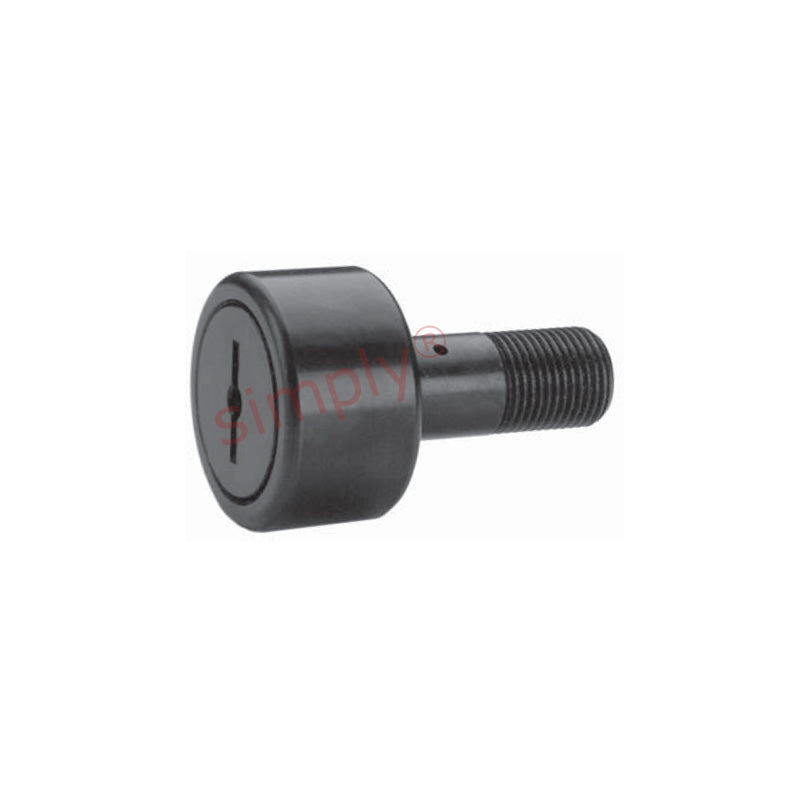

Major Brand CNB48S Sealed and Slotted Cylindrical Cam Follower 1-1/2 inch Outside Diameter
- Regular price
- €55,95 ex VAT
- Sale price
- €55,95
- Regular price
-
In stock
Quantity Price Breaks
3
€49,80
4
€47,00
9
€46,44
19
€45,88
29
€45,32
39
€44,76
49
€41,96
59
€41,40
249
€40,84
499
€40,28
999
€39,17
SKU:
CNB-48-S
Major Brand CNB48S Sealed and Slotted Cylindrical Cam Follower 1-1/2 inch Outside Diameter
- Regular price
- €55,95 ex VAT
- Sale price
- €55,95
- Regular price
-
Description
|
Sealed Cam Follower with Slotted Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock, sealed to help prevent contamination and retain lubrication. |
Technical
| A | = | 1.5 inch |
| B | = | 0.875 inch |
| C | = | 0.625 inch |
| D | = | 1.5 inch |
| E | = | 0.75 inch |
| Thread class 2A F | = | 5/8-18 UNF |
| G | = | 3/8 inch |
| H | = | 3/32 inch |
| J | = | 3/16 inch |
| Min boss diameter | = | 57/64 inch |
| Recommended bore | = | 0.625 inch |
| Recommended torque | = | 650 lbf-in |
| Max static capacity | = | 5640 lbs |
| Basic dynamic rating | = | 4840 lbs |
