RHP BT35EC Cast Iron Belt Tensioner and 35mm Bore Insert

SKU: BT35EC-RHP

RHP BT35EC Cast Iron Belt Tensioner and 35mm Bore Insert

€131,95 ex VAT
€131,95
ex VAT
In stock

Quantity Price Breaks

10 €117,44
20 €110,84
30 €109,52
40 €108,20
50 €106,88
75 €105,56
100 €98,96
200 €97,64
250 €96,32
500 €95,00
1000 €92,37
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
RHP BT35EC Cast Iron Belt Tensioner and 35mm Bore Insert
SKU: BT35EC-RHP

RHP BT35EC Cast Iron Belt Tensioner and 35mm Bore Insert

€131,95 ex VAT
€131,95
ex VAT

Description

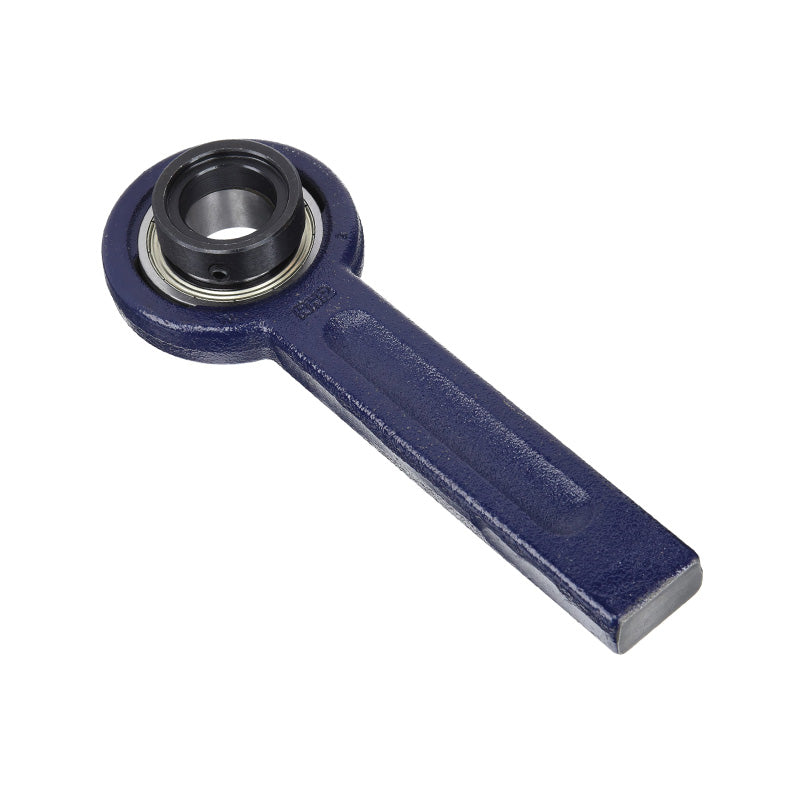

RHP BT EC Series Belt Tensioner Units: Cast iron conveyor belt tensioner bearing unit supplied with a flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. The units are designed to be used with the RHP BTHF series tensioner housings with feet for bolting in place or the RHP BTH series without feet for welding in place. The BT Tensioner unit fits inside the BTHF/BTH housing and it's position is controlled by the M12x1.75mm set screw which can be locked after adjustment is completed.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, eccentric collar fixing, flat back insert
