SKU: BK1622-MB

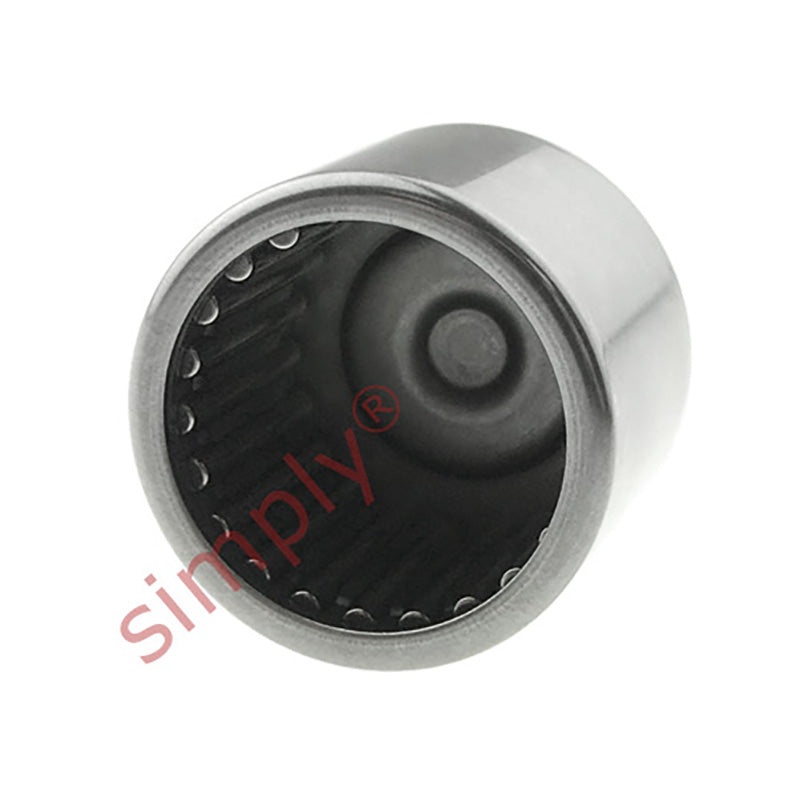

Major Brand BK1622 Drawn Cup Type Needle Roller Bearing with One Closed End 16x22x22mm
- Regular price
- €6,95 ex VAT
- Sale price
- €6,95
- Regular price
-
In stock
Quantity Price Breaks
10
€6,19
19
€5,84
29
€5,77
39
€5,70
49
€5,63
74
€5,56
99
€5,21
199
€5,14
249
€5,07
499
€5,00
999
€4,87
SKU:
BK1622-MB
Major Brand BK1622 Drawn Cup Type Needle Roller Bearing with One Closed End 16x22x22mm
- Regular price
- €6,95 ex VAT
- Sale price
- €6,95
- Regular price
-
Description
|
BK Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with one open end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS series are fitted with a nitrile rubber seal. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
Technical
| Fw | = | 16mm |
| D | = | 22mm |
| C | = | 22mm |
| Dynamic load | = | 12800 N |
| Static load | = | 19600 N |
| Fatigue load limit Pu | = | 2240 N |
| Speed in grease | = | 10000 rpm |
| Speed in oil | = | 16000 rpm |
| C1 | = | 19.3mm |
| r1r2 min | = | 0.8mm |
| Da max | = | 17mm |
| ra max | = | 0.8mm |
| Inner ring | = | IR12x16x22 |
| Seal | = | G/SD16x22x3 |
| Weight | = | 24 g |
