SKU: BB-623-B180-10-ES

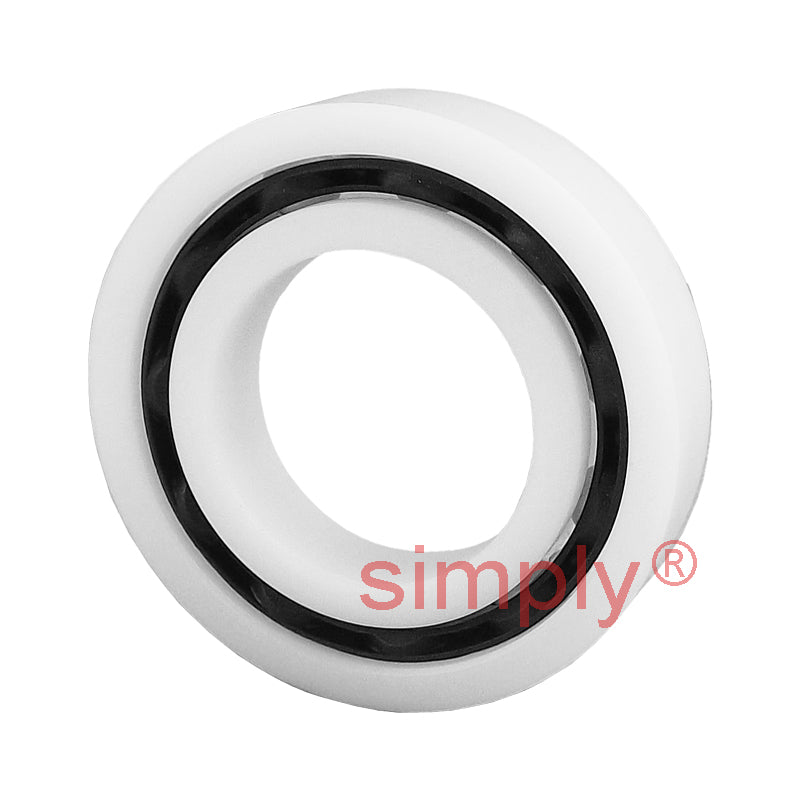

xiros xirodur BB623B18010ES Open Type Radial Groove Ball Bearing with PA Cage and Stainless Steel Balls 3x10x4mm
- Regular price
- €8,95 ex VAT
- Sale price
- €8,95
- Regular price
-
In stock
Quantity Price Breaks
5
€7,97
9
€7,52
29
€7,43
49
€7,34
99
€7,25
199
€7,16
299
€6,71
399
€6,62
499
€6,53
749
€6,44
999
€6,27
SKU:
BB-623-B180-10-ES
xiros xirodur BB623B18010ES Open Type Radial Groove Ball Bearing with PA Cage and Stainless Steel Balls 3x10x4mm
- Regular price
- €8,95 ex VAT
- Sale price
- €8,95
- Regular price
-
Description
|
IGUS xiros® xirodur® B180 Polymer Ball Bearings: These open type radial deep groove ball bearings consist of polymer cages and stainless steel balls. They are for use with temperatures up to +80 deg C. The specially developed material xirodur® B180 provides significantly longer life times at a lower cost. These bearings are ideal for applications that require lubricant-free ball bearings and maintenance-free dry operation. They are also suitable for applications which require corrosion resistance, non-magnetic ball bearings or a light weight bearing. Benefits: Lubrication- and maintenance-free, washable, corrosion-resistant, electrically insulating. |
Technical
| d1 | = | 3mm |
| d2 | = | 10mm |
| b1 | = | 4mm |
| Max static load capacity | = | 30 N |
| Static load capacity | = | 25 N |
| Dynamic load capacity | = | 35 N |
| Max speed | = | 4500 rpm |
| Race | = | B180 |
| Cage | = | PA |
| Ball material | = | Stainless Steel |
