SKU: B-1110

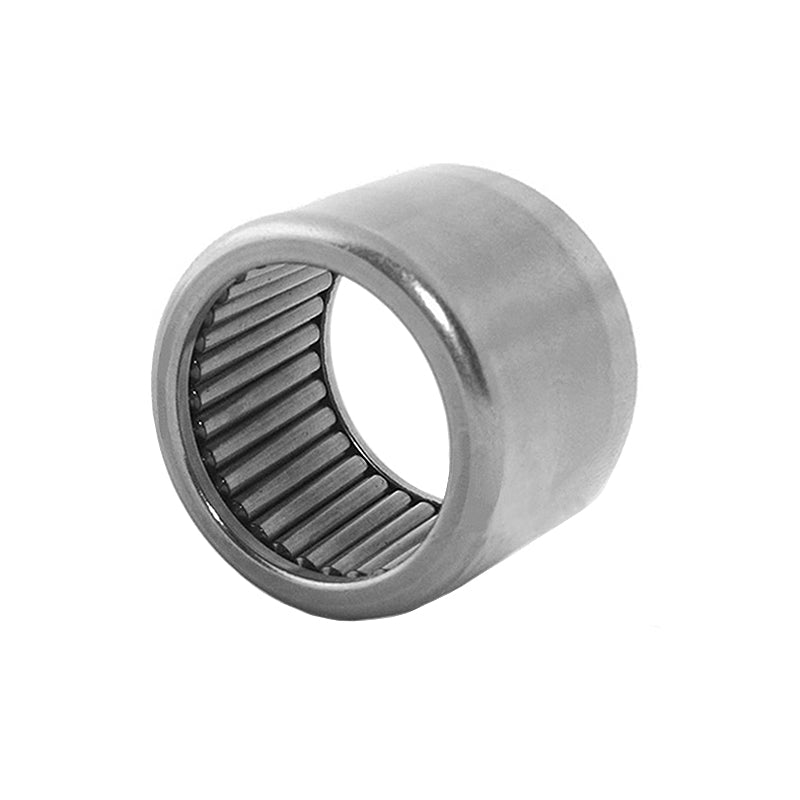

Major Branded B1110 Imperial Drawn Cup Open End Type Full Complement Needle Roller Bearing 11/16x7/8x5/8 inch
- Regular price
- €12,95 ex VAT
- Sale price
- €12,95
- Regular price
-
In stock
Quantity Price Breaks
5
€11,53
9
€10,88
19
€10,75
29
€10,62
49
€10,49
74
€10,36
99
€9,71
199
€9,58
249
€9,45
499
€9,32
999
€9,07
SKU:
B-1110
Major Branded B1110 Imperial Drawn Cup Open End Type Full Complement Needle Roller Bearing 11/16x7/8x5/8 inch
- Regular price
- €12,95 ex VAT
- Sale price
- €12,95
- Regular price
-
Description
Full Complement Needle Roller Bearings: Of similar construction to the common HK and TA series needle roller bearings but having no cage and twice the number of rollers occupying the same space to permit greater load carrying capacity. Often referred to as crowded roller construction. |
Technical
| Inside Diameter | = | 17.46mm = 0.6875 inch |
| Outside Diameter | = | 22.23mm = 0.8745 inch |
| Width | = | 15.88mm = 0.625 inch |
| Dynamic load C | = | 14.6 kN |
| Static load Co | = | 29.4 kN |
| S max | = | 17.463mm = 0.6875 inch |
| S min | = | 17.45mm = 0.687 inch |
| H max | = | 22.238mm = 0.8755 inch |
| H min | = | 22.212mm = 0.8745 inch |
