SKU: AXK0821-MB-AS0821-MB

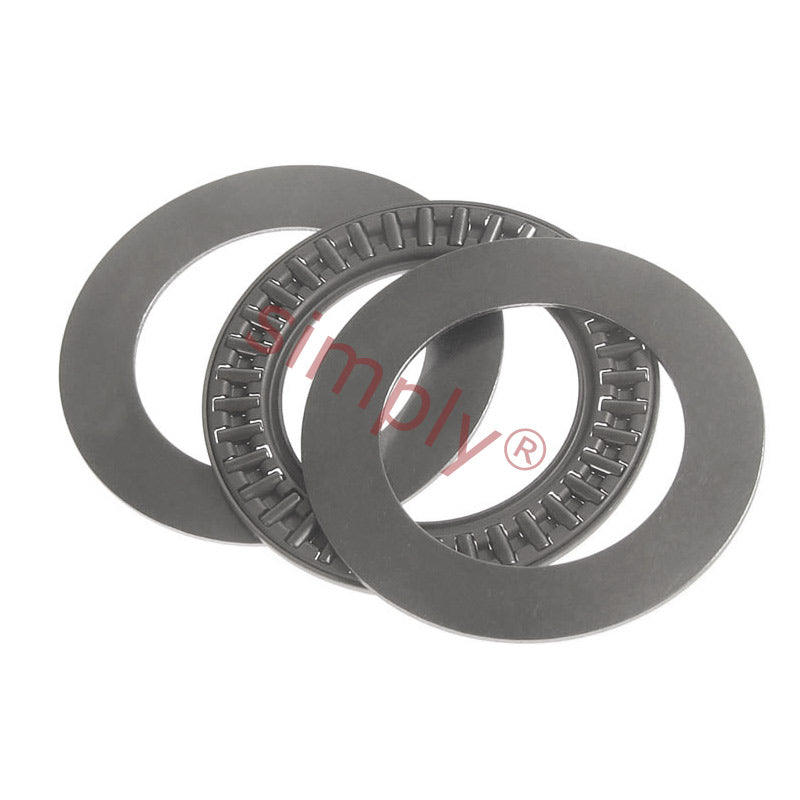

AXK0821 Major Branded Needle Roller Cage with 2 AS0821 Washers 8x21x4mm
- Regular price
- €5,95 ex VAT
- Sale price
- €5,95
- Regular price
-
In stock
Quantity Price Breaks
10+
€5,30
19+
€5,00
29+
€4,94
39+
€4,88
49+
€4,82
74+
€4,76
99+
€4,46
199+
€4,40
249+
€4,34
499+
€4,28
999+
€4,17
SKU:
AXK0821-MB-AS0821-MB
AXK0821 Major Branded Needle Roller Cage with 2 AS0821 Washers 8x21x4mm
- Regular price
- €5,95 ex VAT
- Sale price
- €5,95
- Regular price
-
Description
|
AXK Series Needle Roller Thrust Bearings Complete: Needle roller and cage thrust assemblies complete with 2 AS series washers are a low profile high load thrust bearing assembly, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
Technical
| d | = | 8mm |
| D | = | 21mm |
| Dw | = | 4mm total (2 washers at 1mm each) |
| Ea | = | 9mm |
| Eb | = | 20mm |
| Dynamic load | = | 7200 N |
| Static load | = | 20000 N |
| Fatigue load limit Pu | = | 2200 N |
| Speed in grease | = | 4300 rpm |
| Speed in oil | = | 5600 rpm |
| Weight (assembly) | = | 2 g |
| D | = | 21mm |
| B | = | 2.75mm |
