SKU: AXK0619-EU-AS0619-EU
AXK0619/AS0619 Budget Needle Roller Cage with 2 AS Washers 6x19x4mm
- Regular price
- €5,95 ex VAT
- Sale price
- €5,95
- Regular price
-
In stock
Quantity Price Breaks
10
€5,30
19
€5,00
29
€4,94
39
€4,88
49
€4,82
74
€4,76
99
€4,46
199
€4,40
249
€4,34
499
€4,28
999
€4,17
SKU:
AXK0619-EU-AS0619-EU
AXK0619/AS0619 Budget Needle Roller Cage with 2 AS Washers 6x19x4mm
- Regular price
- €5,95 ex VAT
- Sale price
- €5,95
- Regular price
-
Description
|
Budget AXK Series Needle Roller Thrust Bearings Complete: Needle roller and cage thrust assemblies complete with 2 AS series washers are a low profile high load thrust bearing assembly, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |

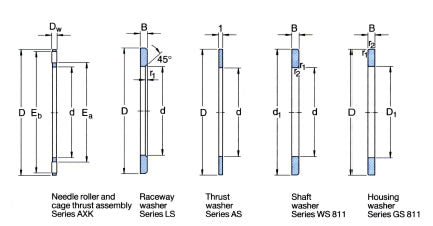

Technical
| d | = | 6mm |
| D | = | 19mm |
| Dw | = | 4mm |
| Ea | = | 7mm |
| Eb | = | 18mm |
| Dynamic load C | = | 6300 N |
| Static load Co | = | 16000 N |
| Fatigue load limit Pu | = | 1750 N |
| Speed in grease | = | 4500 rpm |
| Speed in oil | = | 6000 rpm |
| Weight (Assembly) | = | 1 g |
| D | = | 19mm |
| B | = | 2.75mm |
| r1r2 min | = | 0.3mm |
| Weight LS GS WS | = | 4 g |
| Weight AS | = | 2 g |
| Raceway washer | = | LS0619 |
| Thrust washer | = | AS0619 |
