SKU: AHX3224G-MB

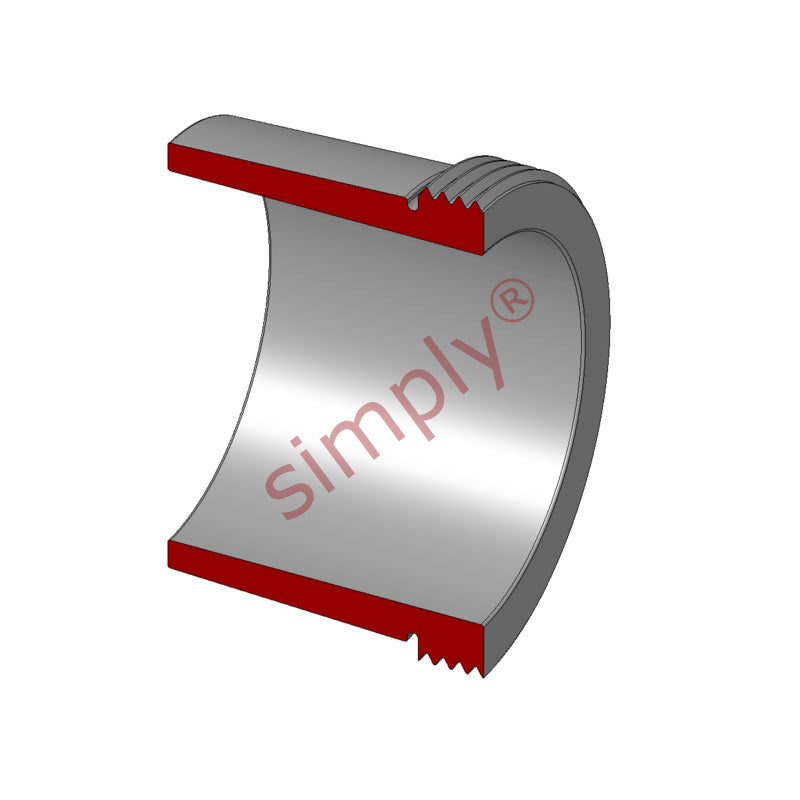

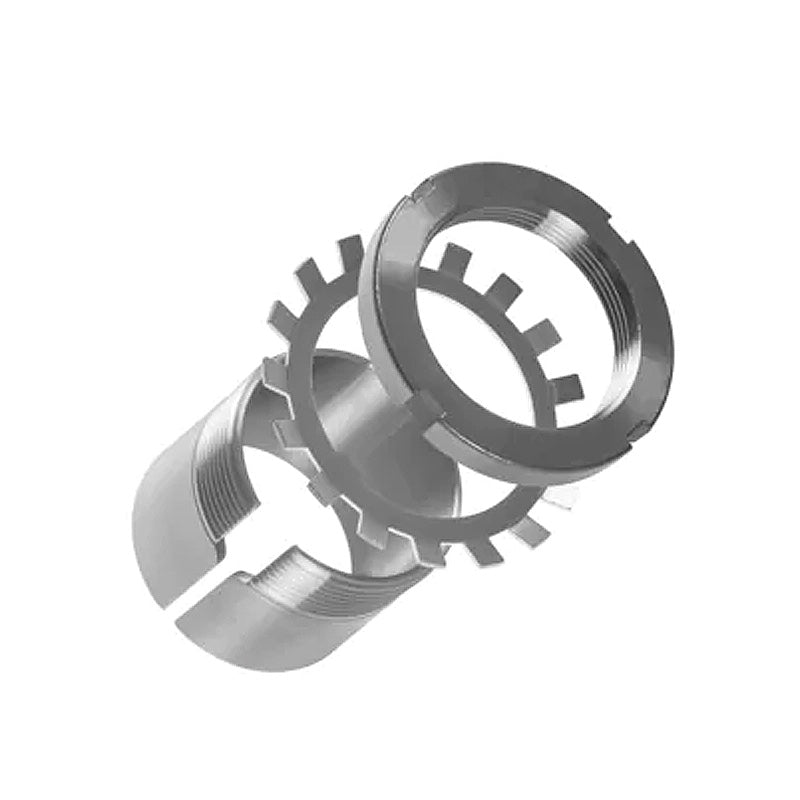

Major Branded AHX3224G Withdrawal Sleeve for 115mm shaft
- Regular price
- €225,95 ex VAT
- Sale price
- €225,95
- Regular price
-
Not in stock
Quantity Price Breaks
10
€201,10
19
€189,80
29
€187,54
39
€185,28
49
€183,02
74
€180,76
99
€169,46
199
€167,20
249
€164,94
499
€162,68
999
€158,17
SKU:
AHX3224G-MB
Major Branded AHX3224G Withdrawal Sleeve for 115mm shaft
- Regular price
- €225,95 ex VAT
- Sale price
- €225,95
- Regular price
-
Description
|
Withdrawal Sleeves: Can be used to mount bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position. Differing from adaptor sleeves, they are pushed into the bearing by a locknut on the threaded shaft, they then permit a larger locknut to be used to withdraw the sleeve from within the bearing for ease of dismantling Benefits: Re-useable, adjustable, positive location, easy to dismount |
Technical
| --- | = | Dimensions |
| d1 | = | 115mm |
| d | = | 120mm |
| B1 | = | 90mm |
| B2 | = | 94mm |
| G | = | Thread 130x2mm |
| G1 | = | 13mm |
| Weight | = | 1.3 kg |
| --- | = | Assembly Parts |
| Sleeve | = | AHX3224G |
| Nut | = | KM26 |
| Hydraulic nut | = | HMV26E |
| --- | = | Matching Spherical Roller Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=23224K+taper> | = | 23224K< |
| /a> | = | |
| --- | = | Matching Carb Toroidal Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=C3224K+taper> | = | C3224K< |
| /a> | = |
