SKU: AHX317-MB

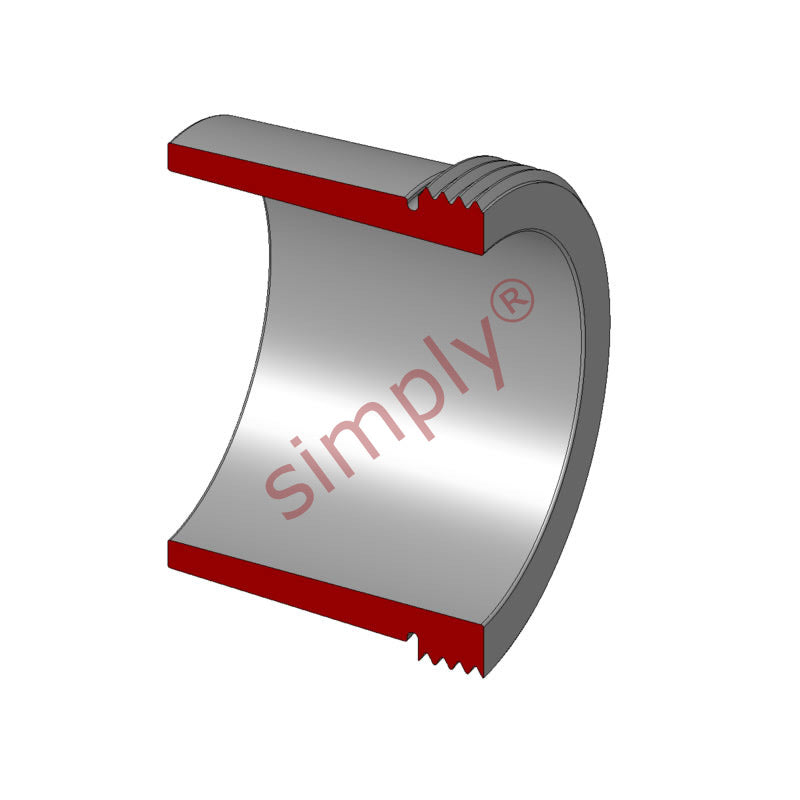

Major Branded AHX317 Withdrawal Sleeve for 80mm shaft
- Regular price
- €76,95 ex VAT
- Sale price
- €76,95
- Regular price
-
ex VAT
Not in stock
Quantity Price Breaks
10
€68,49
19
€64,64
29
€63,87
39
€63,10
49
€62,33
74
€61,56
99
€57,71
199
€56,94
249
€56,17
499
€55,40
999
€53,87
Description
|
Withdrawal Sleeves: Can be used to mount bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position. Differing from adaptor sleeves, they are pushed into the bearing by a locknut on the threaded shaft, they then permit a larger locknut to be used to withdraw the sleeve from within the bearing for ease of dismantling Benefits: Re-useable, adjustable, positive location, easy to dismount |
Technical
| --- | = | Dimensions |
| d1 | = | 80mm |
| d | = | 85mm |
| B1 | = | 52mm |
| B2 | = | 56mm |
| G | = | Thread 95x2mm |
| G1 | = | 9mm |
| Weight | = | 0.43 kg |
| --- | = | Assembly Parts |
| Sleeve | = | AHX317 |
| Nut | = | KM19 |
| Hydraulic nut | = | HMV19E |
| --- | = | Matching Self Aligning Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=2217K+taper> | = | 2217K< |
| /a> | = | |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=1317K+taper> | = | 1317K< |
| /a> | = | |
| --- | = | Matching Spherical Roller Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=22217K+taper> | = | 22217K< |
| /a> | = | |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=21317K+taper> | = | 21317K< |
| /a> | = | |
| --- | = | Matching Carb Toroidal Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=C2217K+taper> | = | C2217K< |
| /a> | = | |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=C2217KV+taper> | = | C2217KV< |
| /a> | = |
