SKU: AH309-MB

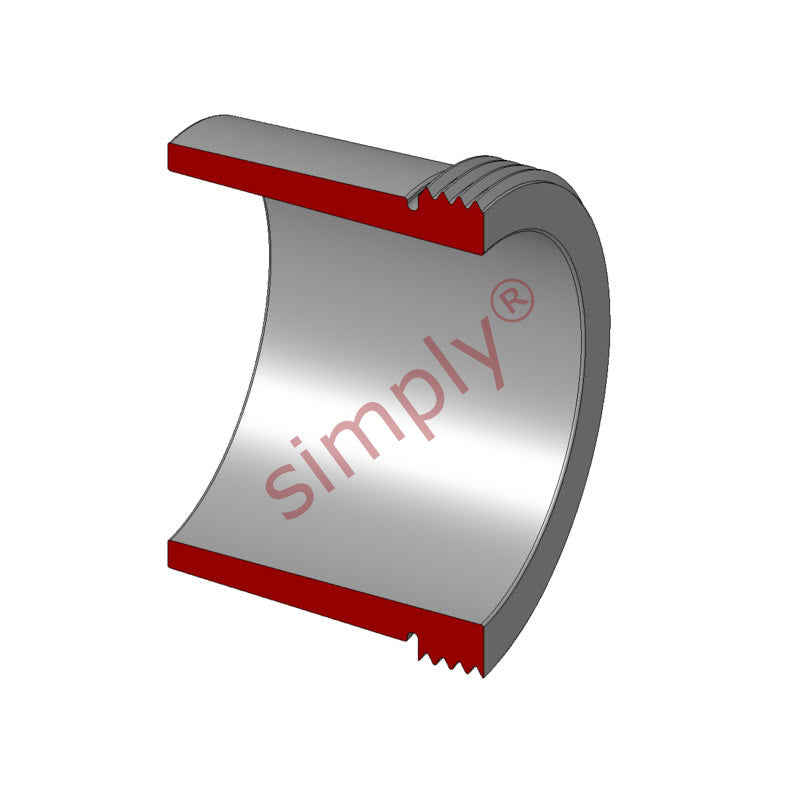

Major Branded AH309 Withdrawal Sleeve for 40mm shaft
- Regular price
- €99,95 ex VAT
- Sale price
- €99,95
- Regular price
-
ex VAT
Not in stock
Quantity Price Breaks
10
€88,96
19
€83,96
29
€82,96
39
€81,96
49
€80,96
74
€79,96
99
€74,96
199
€73,96
249
€72,96
499
€71,96
999
€69,97
Description
|
Withdrawal Sleeves: Can be used to mount bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position. Differing from adaptor sleeves, they are pushed into the bearing by a locknut on the threaded shaft, they then permit a larger locknut to be used to withdraw the sleeve from within the bearing for ease of dismantling Benefits: Re-useable, adjustable, positive location, easy to dismount |
Technical
| --- | = | Dimensions |
| d1 | = | 40mm |
| d | = | 45mm |
| B1 | = | 31mm |
| B2 | = | 34mm |
| G | = | Thread 50x1.5mm |
| G1 | = | 6mm |
| Weight | = | 0.12 kg |

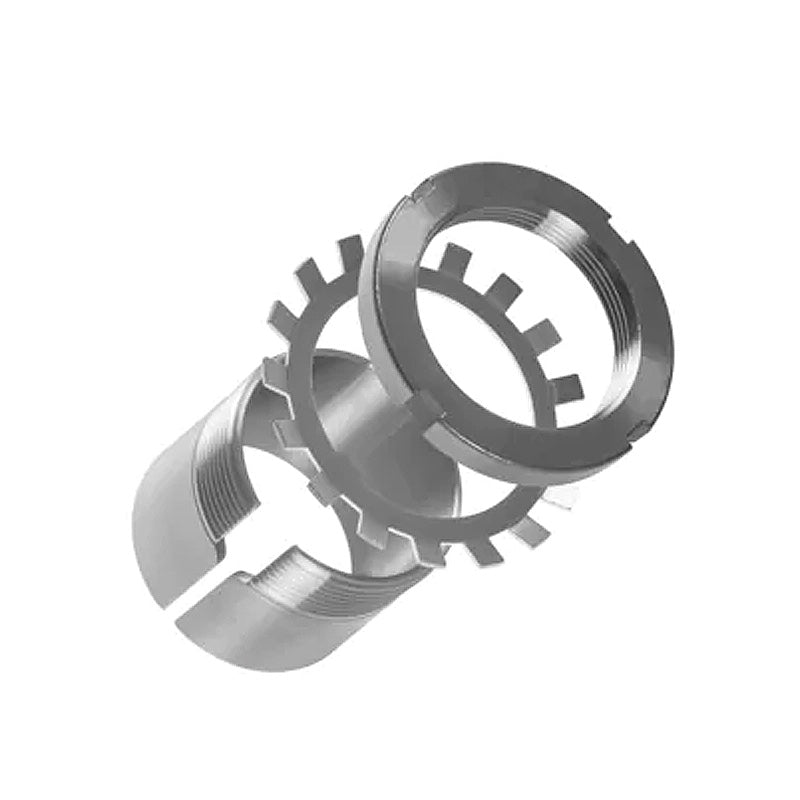

| --- | = | Assembly Parts |
| Sleeve | = | AH309 |
| Nut | = | KM10 |
| Hydraulic nut | = | HMV10E |
| --- | = | Matching Self Aligning Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=2209K+taper> | = | 2209K< |
| /a> | = | |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=1309K+taper> | = | 1309K< |
| /a> | = | |
| --- | = | Matching Spherical Roller Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=22209K+taper> | = | 22209K< |
| /a> | = | |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=21309K+taper> | = | 21309K< |
| /a> | = | |
| --- | = | Matching Carb Toroidal Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=C2209KTN9+taper> | = | C2209KTN9< |
| /a> | = | |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=C2209KV+taper> | = | C2209KV< |
| /a> | = |
