SKU: AH24138-MB

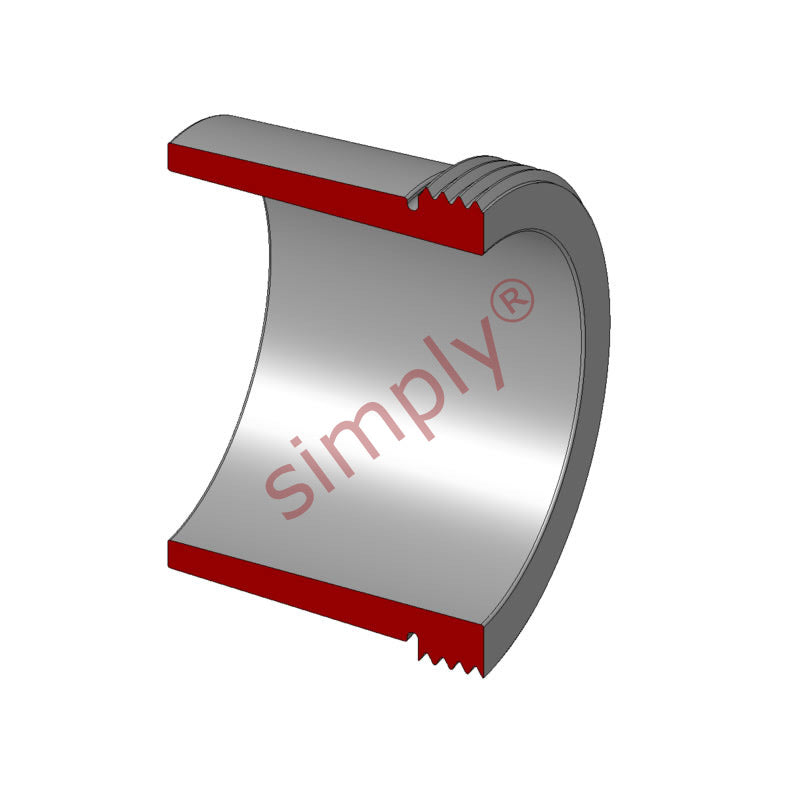

Major Branded AH24138 Withdrawal Sleeve for 180mm shaft
- Regular price
- €606,95 ex VAT
- Sale price
- €606,95
- Regular price
-
ex VAT
Not in stock
Quantity Price Breaks
10
€540,19
19
€509,84
29
€503,77
39
€497,70
49
€491,63
74
€485,56
99
€455,21
199
€449,14
249
€443,07
499
€437,00
999
€424,87
Description
|
Withdrawal Sleeves: Can be used to mount bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position. Differing from adaptor sleeves, they are pushed into the bearing by a locknut on the threaded shaft, they then permit a larger locknut to be used to withdraw the sleeve from within the bearing for ease of dismantling Benefits: Re-useable, adjustable, positive location, easy to dismount |
Technical
| --- | = | Dimensions |
| d1 | = | 180mm |
| d | = | 190mm |
| B1 | = | 146mm |
| B2 | = | 159mm |
| G | = | Thread 200x3mm |
| G1 | = | 18mm |
| Weight | = | 4.45 kg |
| --- | = | Assembly Parts |
| Sleeve | = | AH24138 |
| Nut | = | KM40 |
| Hydraulic nut | = | HMV40E |
| --- | = | Matching Spherical Roller Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=24138K+taper> | = | 24138K< |
| /a> | = | |
| --- | = | Matching Carb Toroidal Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=C4138K30V+taper> | = | C4138K30V< |
| /a> | = |
