SKU: AH24136-MB
Major Branded AH24136 Withdrawal Sleeve for 170mm shaft
- Regular price
- €555,95 ex VAT
- Sale price
- €555,95
- Regular price
-
Not in stock
Quantity Price Breaks
10
€494,80
19
€467,00
29
€461,44
39
€455,88
49
€450,32
74
€444,76
99
€416,96
199
€411,40
249
€405,84
499
€400,28
999
€389,17
SKU:
AH24136-MB
Major Branded AH24136 Withdrawal Sleeve for 170mm shaft
- Regular price
- €555,95 ex VAT
- Sale price
- €555,95
- Regular price
-
Description
|
Withdrawal Sleeves: Can be used to mount bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position. Differing from adaptor sleeves, they are pushed into the bearing by a locknut on the threaded shaft, they then permit a larger locknut to be used to withdraw the sleeve from within the bearing for ease of dismantling Benefits: Re-useable, adjustable, positive location, easy to dismount |
Technical
| --- | = | Dimensions |
| d1 | = | 170mm |
| d | = | 180mm |
| B1 | = | 134mm |
| B2 | = | 145mm |
| G | = | Thread 190x3mm |
| G1 | = | 16mm |
| Weight | = | 3.75 kg |

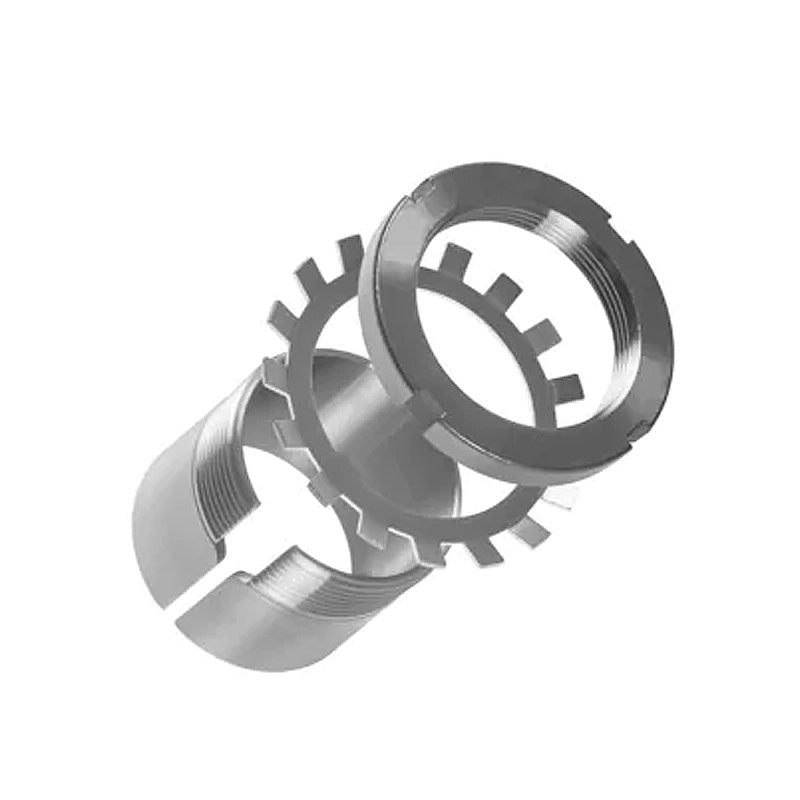

| --- | = | Assembly Parts |
| Sleeve | = | AH24136 |
| Nut | = | KM38 |
| Hydraulic nut | = | HMV38E |
| --- | = | Matching Spherical Roller Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=24136K+taper> | = | 24136K< |
| /a> | = | |
| --- | = | Matching Carb Toroidal Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=C4136K30V+taper> | = | C4136K30V< |
| /a> | = |
