SKU: AH2309-MB

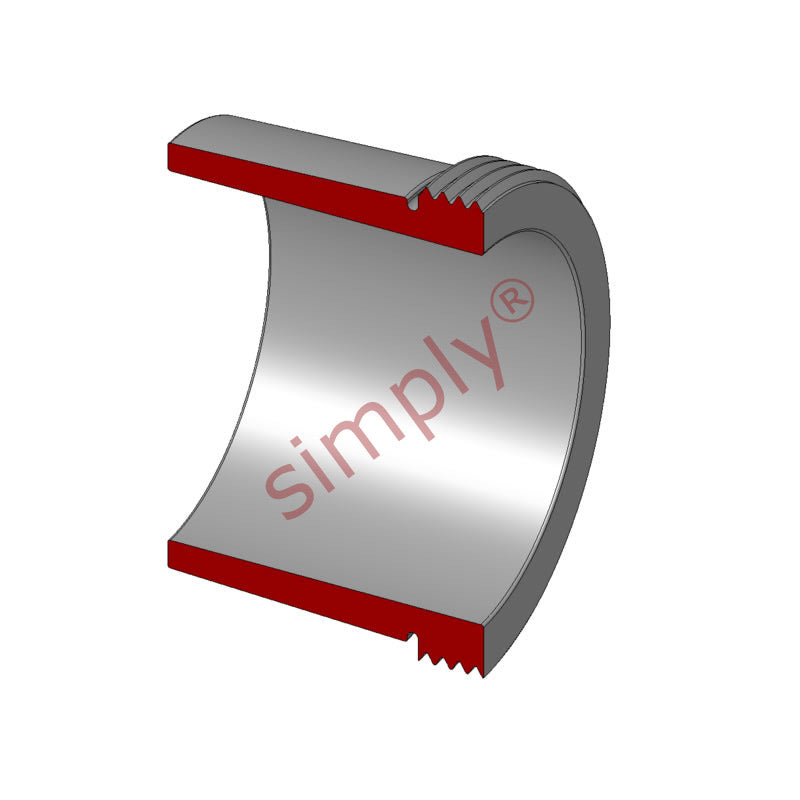

Major Branded AH2309 Withdrawal Sleeve for 40mm shaft
- Regular price
- €136,95 ex VAT
- Sale price
- €136,95
- Regular price
-
Not in stock
Quantity Price Breaks
10
€121,89
19
€115,04
29
€113,67
39
€112,30
49
€110,93
74
€109,56
99
€102,71
199
€101,34
249
€99,97
499
€98,60
999
€95,87
SKU:
AH2309-MB
Major Branded AH2309 Withdrawal Sleeve for 40mm shaft
- Regular price
- €136,95 ex VAT
- Sale price
- €136,95
- Regular price
-
Description
|
Withdrawal Sleeves: Can be used to mount bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position. Differing from adaptor sleeves, they are pushed into the bearing by a locknut on the threaded shaft, they then permit a larger locknut to be used to withdraw the sleeve from within the bearing for ease of dismantling Benefits: Re-useable, adjustable, positive location, easy to dismount |
Technical
| --- | = | Dimensions |
| d1 | = | 40mm |
| d | = | 45mm |
| B1 | = | 44mm |
| B2 | = | 47mm |
| G | = | Thread 50x1.5mm |
| G1 | = | 7mm |
| Weight | = | 0.16 kg |

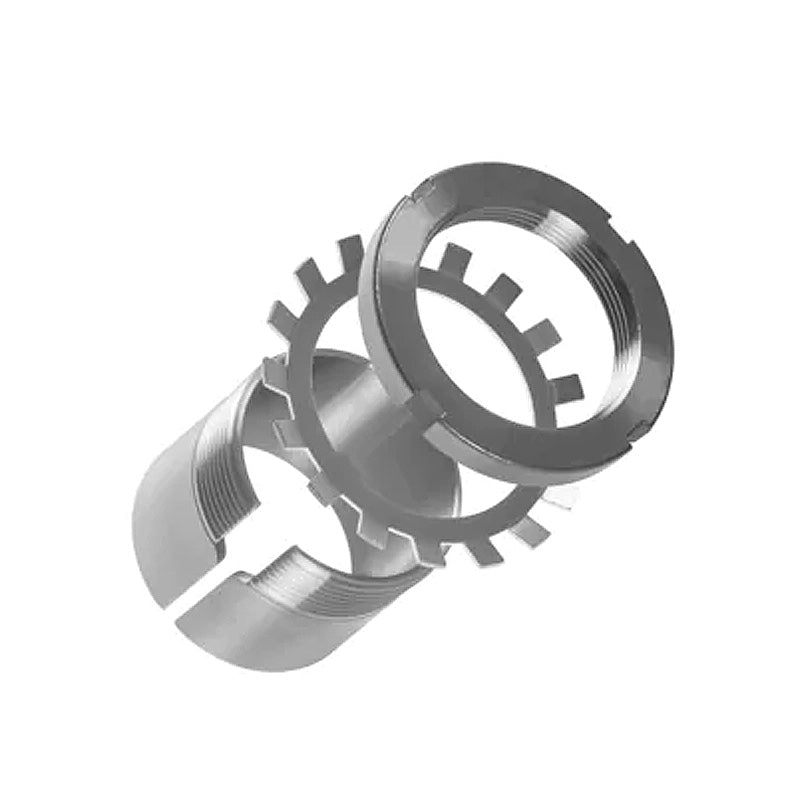

| --- | = | Assembly Parts |
| Sleeve | = | AH2309 |
| Nut | = | KM10 |
| Hydraulic nut | = | HMV10E |
| --- | = | Matching Self Aligning Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=2309K+taper> | = | 2309K< |
| /a> | = | |
| --- | = | Matching Spherical Roller Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=22309K+taper> | = | 22309K< |
| /a> | = |
