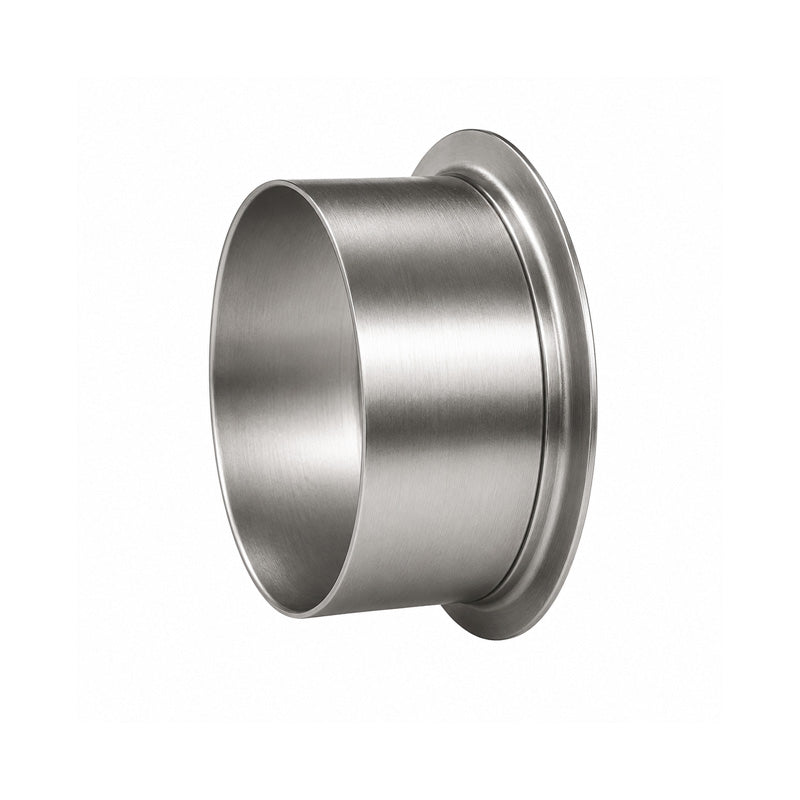

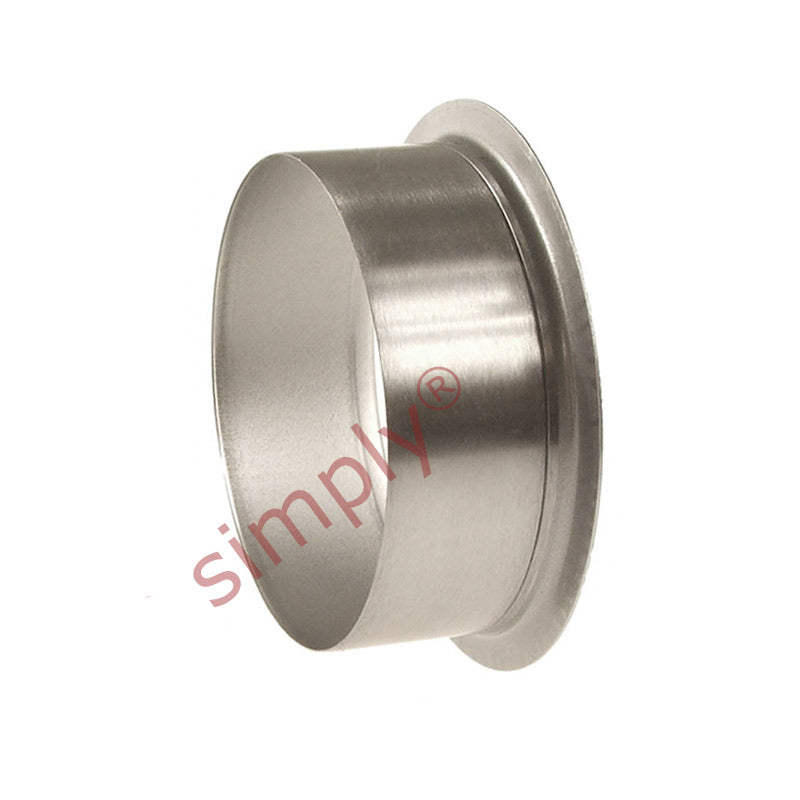

99196 Hardened Stainless Sturdi Sleeve for Shafts 1.965-1.971 inch

SKU: 99196

99196 Hardened Stainless Sturdi Sleeve for Shafts 1.965-1.971 inch

€43,95 ex VAT
€43,95
ex VAT
In stock

Quantity Price Breaks

10 €39,12
19 €36,92
29 €36,48
39 €36,04
49 €35,60
74 €35,16
99 €32,96
199 €32,52
249 €32,08
499 €31,64
999 €30,77
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
99196 Hardened Stainless Sturdi Sleeve for Shafts 1.965-1.971 inch
SKU: 99196

99196 Hardened Stainless Sturdi Sleeve for Shafts 1.965-1.971 inch

€43,95 ex VAT
€43,95
ex VAT

Description

Sturdi® Sleeve: The quickest and most sensible way to repair a worn shaft. The Sturdi® sleeve range offers the opportunity to repair seal counter faces on shafts without prior dismantling or machining of the equipment and once fitted offers superior surface and sealing characteristics often outperforming the original life span of the shaft. Speedi Sleeves are designed to repair shafts where oil seals run. The sleeve is sufficiently thin-walled (.011" or 0.28 mm) to allow the same size of seal to be used. The Sturdi® shaft repair sleeve is made of high quality stainless steel SAE 304. The surface is wear-resistant and machined without directionality to a finish of Ra = 10 to 20 micro inches or 0.25 to 0.5 µm.
Benefits: No dismantling of equipment, longer life cycle, cost effective.
Note: Sturdi® sleeves are only suitable for repairs where an oil seals needs to run, they cannot be used to repair damage where a bearing fits onto a shaft.

Technical

Nominal shaft diameter = 1.969 inch
Minimum shaft diameter = 1.965 inch
Maximum shaft diameter = 1.971 inch
Width B1 = 0.551 inch
Width B2 = 0.668 inch
Flange diameter D = 2.244 inch
Installation depth Ba = 0.984 inch
Weight = 0.173 kg
Material = SAE 304 Hardened Stainless
