SKU: 7516-RBC

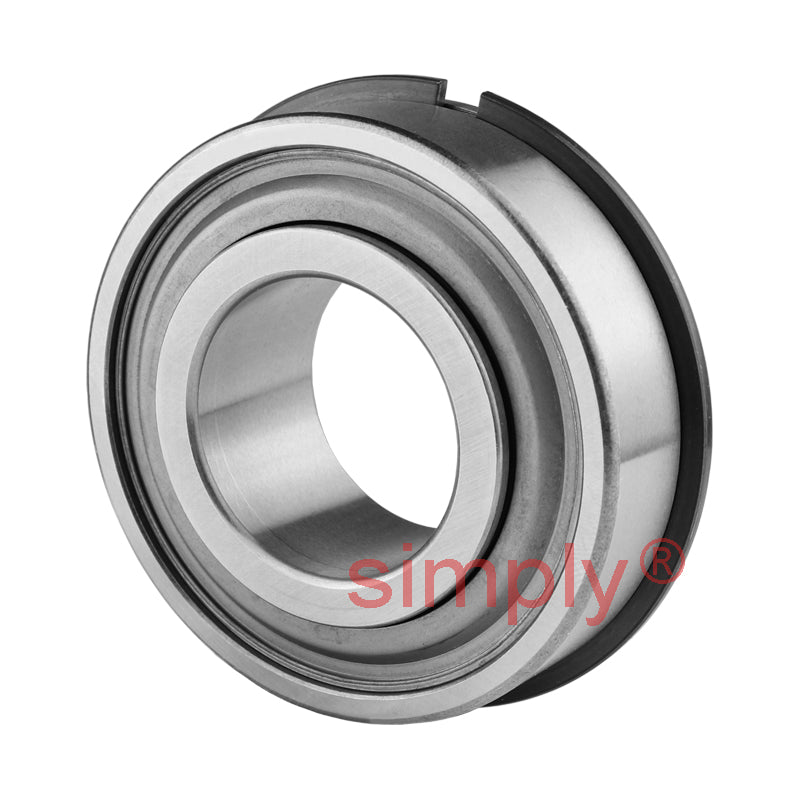

RBC 7516 Heavy Duty Precision Ground Rubber Sealed with Trash Guard Radial Bearing with Snap Ring 1x2x0.625 inch
- Regular price
- €54,95 ex VAT
- Sale price
- €54,95
- Regular price
-
In stock
Quantity Price Breaks
10
€48,91
19
€46,16
29
€45,61
39
€45,06
49
€44,51
74
€43,96
99
€41,21
199
€40,66
249
€40,11
499
€39,56
999
€38,47
SKU:
7516-RBC
RBC 7516 Heavy Duty Precision Ground Rubber Sealed with Trash Guard Radial Bearing with Snap Ring 1x2x0.625 inch
- Regular price
- €54,95 ex VAT
- Sale price
- €54,95
- Regular price
-

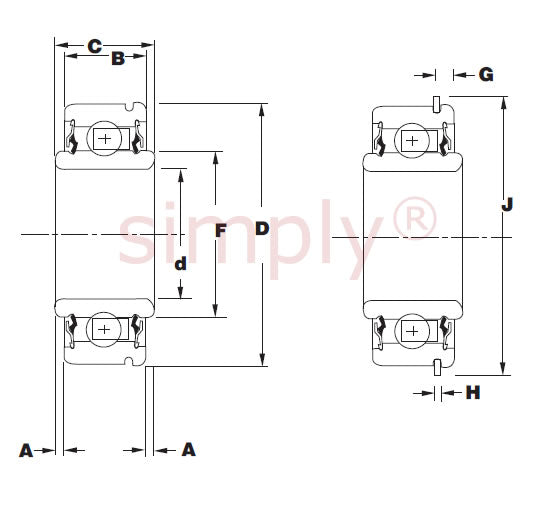

Technical
| Bore d | = | 1 inch = 25.4mm |
| Tolerance | = | +.0000/-.0005 |
| Outside Diameter D | = | 2 inch = 50.8mm |
| Tolerance | = | +.0000/-.0005 |
| Width B | = | 0.625 inch = 15.88mm |
| Tolerance | = | +.000/-.005 |
| A | = | 0.0625 inch = 1.59mm |
| Inner Width C | = | 0.75 inch = 19.05mm |
| Tolerance | = | +.000/-.005 |
| F | = | 1.306 inch = 33.17mm |
| G | = | 0.136 inch = 3.45mm |
| Tolerance | = | +.000/- .005 |
| H | = | 0.042 inch = 1.07mm |
| J | = | 2.1563 inch = 54.77mm |
| Radius R | = | 0.035 inch = 0.89mm |
| Dynamic C | = | 13217N |
| Static Co | = | 6008N |
| da min | = | 1.25 inch = 31.75mm |
| Da max | = | 1.75 inch = 44.45mm |
| r max | = | 0.035 inch = 0.89mm |
