SKU: 6316-HT-330

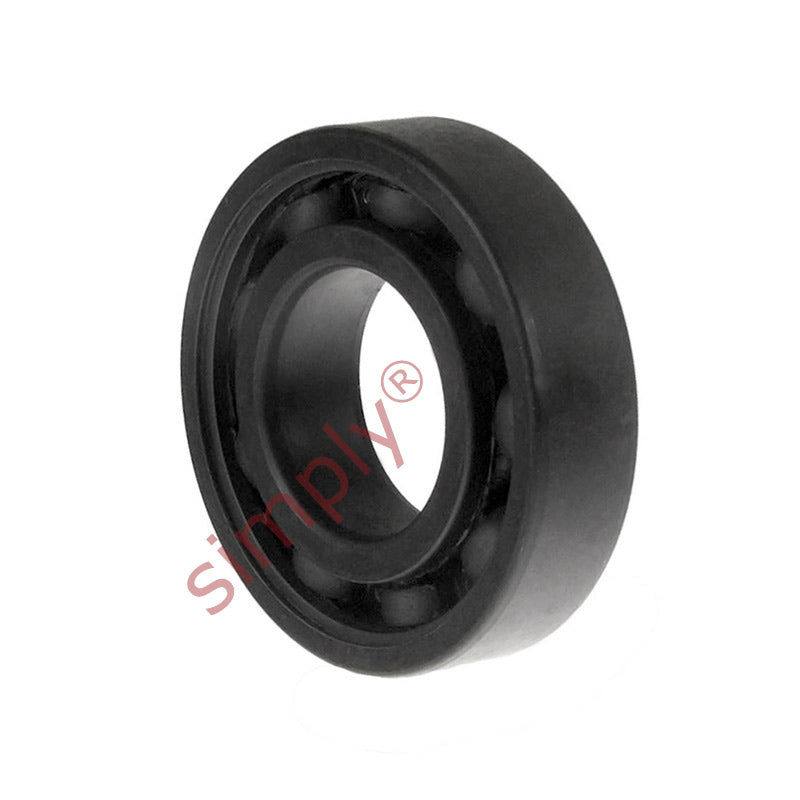

6316HT330 High Temp 330C Open Deep Groove Ball Bearing 80x170x39mm Max 45rpm
- Regular price
- €83,95 ex VAT
- Sale price
- €83,95
- Regular price
-
Not in stock
Quantity Price Breaks
3
€74,72
5
€70,52
10
€69,68
15
€68,84
20
€68,00
30
€67,16
40
€62,96
50
€62,12
60
€61,28
75
€60,44
100
€58,77
SKU:
6316-HT-330
6316HT330 High Temp 330C Open Deep Groove Ball Bearing 80x170x39mm Max 45rpm
- Regular price
- €83,95 ex VAT
- Sale price
- €83,95
- Regular price
-
Description
HT330 Series High Temperature Bearings: Manufactured with a steel cage to further enhance the bearings performance, supplied un-shielded are designed for high temperatures up to + 330 degrees Celsius and down to - 30 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for low speeds at temperature without maintenance. Internal clearance is increased to compensate expansions and all have a BLACK PHOSPHATE COATING
Benefits: High temperature resilience, low maintenance, can be re-lubricated
Technical
| Inside diameter d | = | 80mm |
| Outside diameter D | = | 170mm |
| Width W | = | 39mm |
| Static load max | = | 47.7 kN |
| Max operating temperature | = | 330 deg Celcius |
| Maximum speed | = | 45 rpm |
| Weight | = | 3600 g |
