SKU: 6315-HT-330

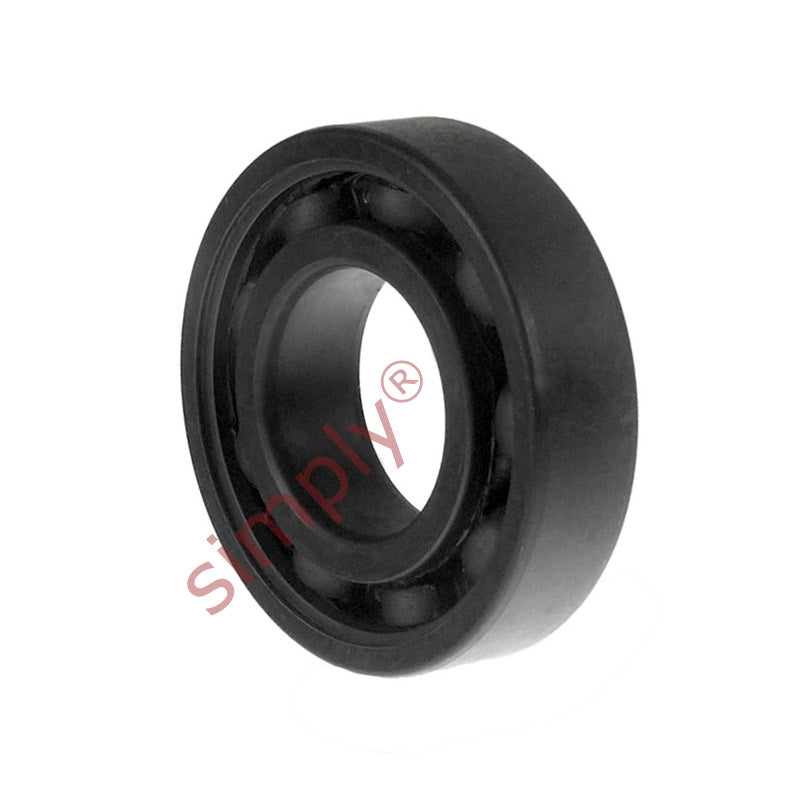

6315HT330 High Temp 330C Open Deep Groove Ball Bearing 75x160x37mm Max 45rpm
- Regular price
- €76,95 ex VAT
- Sale price
- €76,95
- Regular price
-
Not in stock
Quantity Price Breaks
3
€68,49
5
€64,64
10
€63,87
15
€63,10
20
€62,33
30
€61,56
40
€57,71
50
€56,94
60
€56,17
75
€55,40
100
€53,87
SKU:
6315-HT-330
6315HT330 High Temp 330C Open Deep Groove Ball Bearing 75x160x37mm Max 45rpm
- Regular price
- €76,95 ex VAT
- Sale price
- €76,95
- Regular price
-
Description
HT330 Series High Temperature Bearings: Manufactured with a steel cage to further enhance the bearings performance, supplied un-shielded are designed for high temperatures up to + 330 degrees Celsius and down to - 30 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for low speeds at temperature without maintenance. Internal clearance is increased to compensate expansions and all have a BLACK PHOSPHATE COATING
Benefits: High temperature resilience, low maintenance, can be re-lubricated
Technical
| Inside diameter d | = | 75mm |
| Outside diameter D | = | 160mm |
| Width W | = | 37mm |
| Static load max | = | 44.2 kN |
| Max operating temperature | = | 330 deg Celcius |
| Maximum speed | = | 45 rpm |
| Weight | = | 3000 g |
