SKU: 6308-HT-330

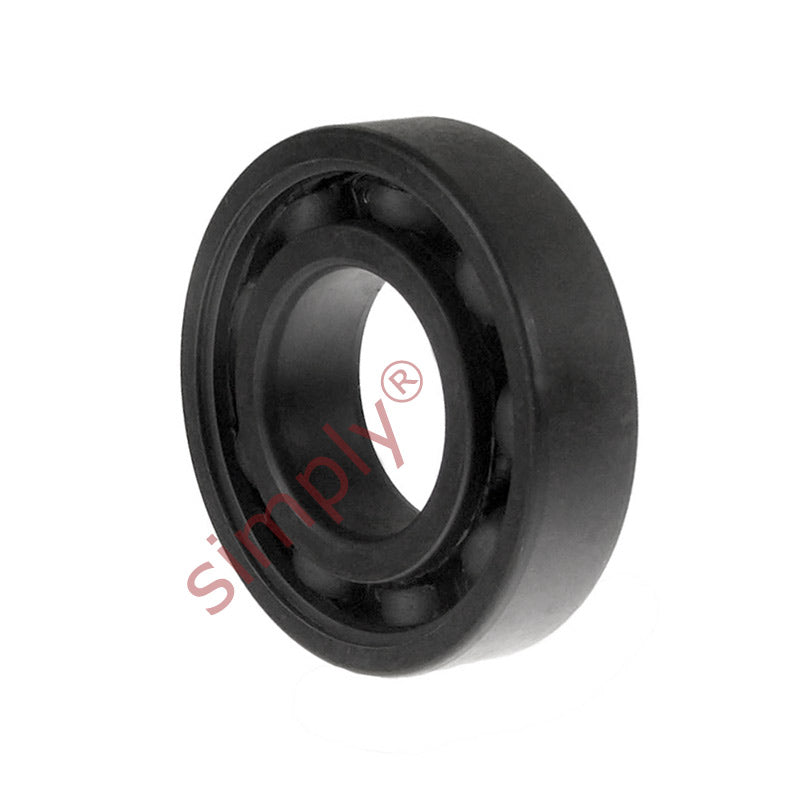

6308HT330 High Temp 330C Open Deep Groove Ball Bearing 40x90x23mm Max 80rpm
- Regular price
- €24,95 ex VAT
- Sale price
- €24,95
- Regular price
-
In stock
Quantity Price Breaks
3
€22,21
5
€20,96
10
€20,71
15
€20,46
20
€20,21
30
€19,96
40
€18,71
50
€18,46
60
€18,21
75
€17,96
100
€17,47
SKU:
6308-HT-330
6308HT330 High Temp 330C Open Deep Groove Ball Bearing 40x90x23mm Max 80rpm
- Regular price
- €24,95 ex VAT
- Sale price
- €24,95
- Regular price
-
Description
HT330 Series High Temperature Bearings: Manufactured with a steel cage to further enhance the bearings performance, supplied un-shielded are designed for high temperatures up to + 330 degrees Celsius and down to - 30 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for low speeds at temperature without maintenance. Internal clearance is increased to compensate expansions and all have a BLACK PHOSPHATE COATING
Benefits: High temperature resilience, low maintenance, can be re-lubricated
Technical
| Inside diameter d | = | 40mm |
| Outside diameter D | = | 90mm |
| Width W | = | 23mm |
| Static load max | = | 14.45 kN |
| Max operating temperature | = | 330 deg Celcius |
| Maximum speed | = | 80 rpm |
| Weight | = | 620 g |
