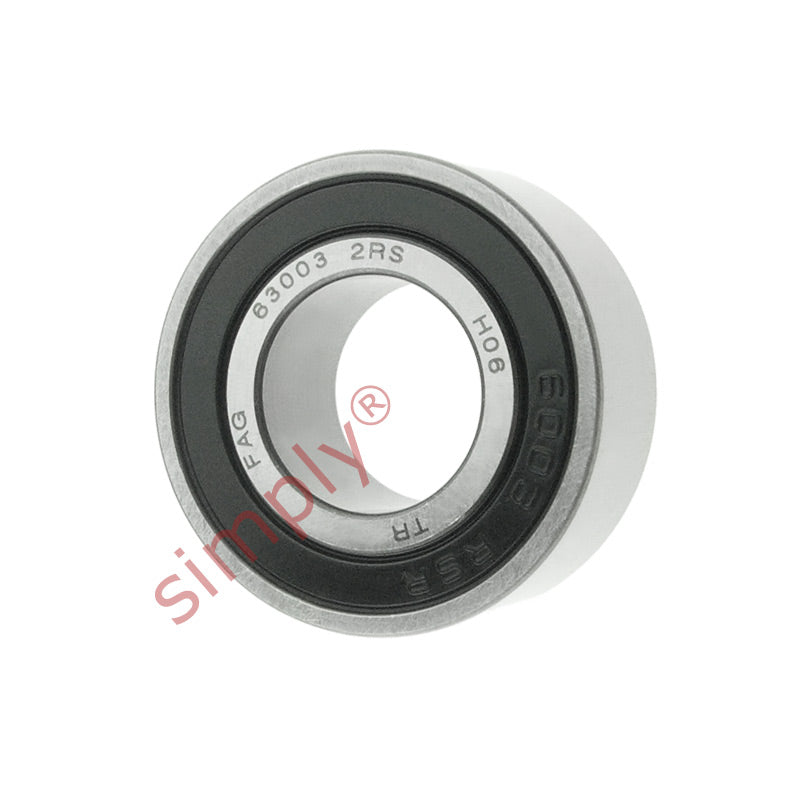

FAG 630032RSR Rubber Sealed Deep Groove Ball Bearing 17x35x14mm
FAG
FAG 630032RSR Rubber Sealed Deep Groove Ball Bearing 17x35x14mm
FAG

SKU: 63003-2RSR-FAG

FAG 630032RSR Rubber Sealed Deep Groove Ball Bearing 17x35x14mm

€18,95 ex VAT
€18,95
ex VAT
Equivalent to: 63003NSE 63003DU 63003RS 63003RSH 63003P 63003RSR 63003LU 630032NSE 63003DDU 630032RS 630032RS1 630032RSH 63003PP 63003LLU
In stock

Quantity Price Breaks

10+ €16,87
19+ €15,92
29+ €15,73
39+ €15,54
49+ €15,35
74+ €15,16
99+ €14,21
199+ €14,02
249+ €13,83
499+ €13,64
999+ €13,27
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
FAG 630032RSR Rubber Sealed Deep Groove Ball Bearing 17x35x14mm
FAG
SKU: 63003-2RSR-FAG

FAG 630032RSR Rubber Sealed Deep Groove Ball Bearing 17x35x14mm

€18,95 ex VAT
€18,95
ex VAT

Description

FAG Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing
Seals can be easily removed for applications that only require 1 seal.
Benefits: Prevents moisture and dirt getting into the bearing, lubricated for life

Technical

d = 17mm
D = 35mm
B = 14mm
Dynamic load C = 6.05 kN
Static load Co = 3.25 kN
Fatigue load limit Pu = 0.137 kN
Reference speed = 45000 rpm
Limiting speed = 13000 rpm
Mass = 0.052 kg
d1 = 23mm
D2 = 31.4mm
r1r2 min = 0.3mm
da min = 19
