SKU: 6218-HT-330

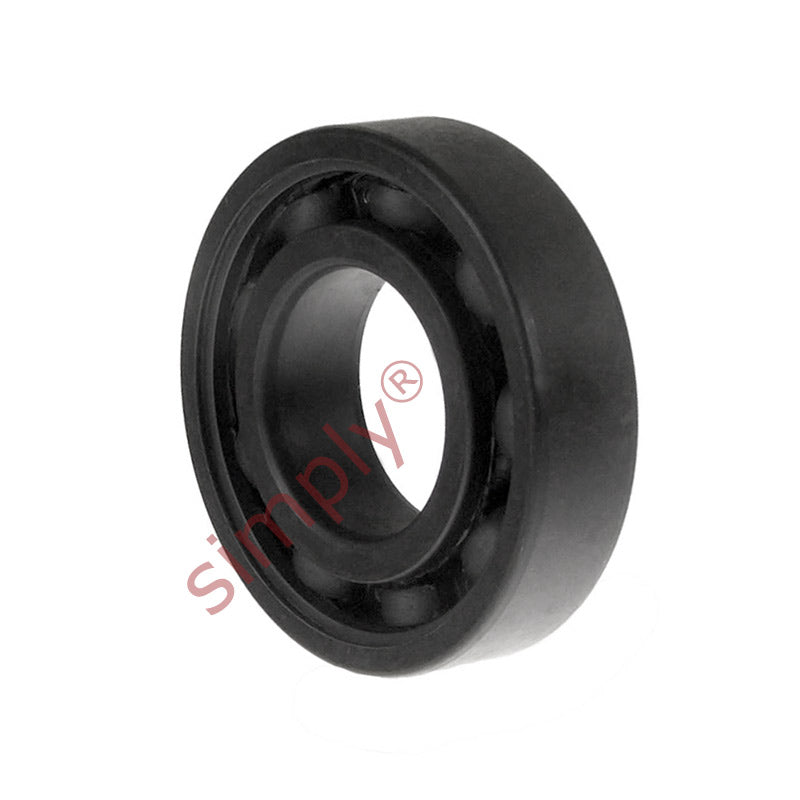

6218HT330 High Temp 330C Open Deep Groove Ball Bearing 90x160x30mm Max 50rpm
- Regular price
- €118,95 ex VAT
- Sale price
- €118,95
- Regular price
-
Not in stock
Quantity Price Breaks
3
€105,87
5
€99,92
10
€98,73
15
€97,54
20
€96,35
30
€95,16
40
€89,21
50
€88,02
60
€86,83
75
€85,64
100
€83,27
SKU:
6218-HT-330
6218HT330 High Temp 330C Open Deep Groove Ball Bearing 90x160x30mm Max 50rpm
- Regular price
- €118,95 ex VAT
- Sale price
- €118,95
- Regular price
-
Description
HT330 Series High Temperature Bearings: Manufactured with a steel cage to further enhance the bearings performance, supplied un-shielded are designed for high temperatures up to + 330 degrees Celsius and down to - 30 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for low speeds at temperature without maintenance. Internal clearance is increased to compensate expansions and all have a BLACK PHOSPHATE COATING
Benefits: High temperature resilience, low maintenance, can be re-lubricated
Technical
| Inside diameter d | = | 90mm |
| Outside diameter D | = | 160mm |
| Width W | = | 30mm |
| Static load max | = | 40.5 kN |
| Max operating temperature | = | 330 deg Celcius |
| Maximum speed | = | 50 rpm |
| Weight | = | 2150 g |
