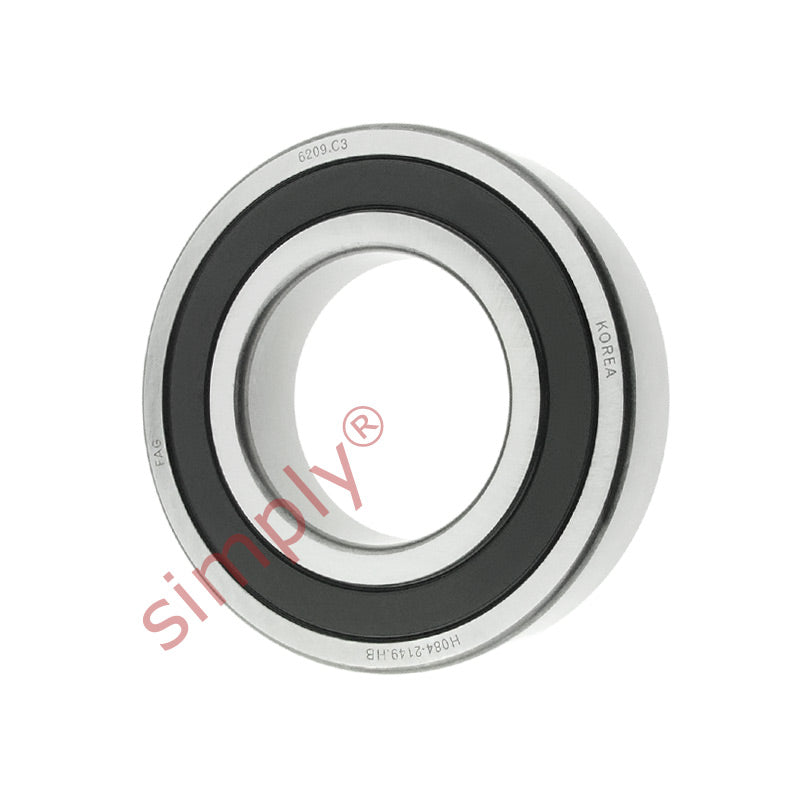

FAG 62092RSRC3 Rubber Sealed Deep Groove Ball Bearing 45x85x19mm
FAG
FAG 62092RSRC3 Rubber Sealed Deep Groove Ball Bearing 45x85x19mm
FAG

SKU: 6209-2RSR/C3-FAG

FAG 62092RSRC3 Rubber Sealed Deep Groove Ball Bearing 45x85x19mm

€29,95 ex VAT
€29,95
ex VAT
Equivalent to: 6209NSEC3 6209DUC3 6209RSC3 6209RSHC3 6209PC3 6209RSRC3 6209LUC3 62092NSEC3 6209DDUC3 62092RSC3 62092RS1C3 62092RSHC3 6209PPC3 6209LLU
In stock

Quantity Price Breaks

10+ €26,66
19+ €25,16
29+ €24,86
39+ €24,56
49+ €24,26
74+ €23,96
99+ €22,46
199+ €22,16
249+ €21,86
499+ €21,56
999+ €20,97
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
FAG 62092RSRC3 Rubber Sealed Deep Groove Ball Bearing 45x85x19mm
FAG
SKU: 6209-2RSR/C3-FAG

FAG 62092RSRC3 Rubber Sealed Deep Groove Ball Bearing 45x85x19mm

€29,95 ex VAT
€29,95
ex VAT

Description

FAG Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing
Seals can be easily removed for applications that only require 1 seal.
Benefits: Prevents moisture and dirt getting into the bearing, lubricated for life

Technical

d = 45mm
D = 85mm
B = 19mm
Dynamic load C = 35.1 kN
Static load Co = 21.6 kN
Fatigue load limit Pu = 0.915 kN
Reference speed = 17000 rpm
Limiting speed = 5000 rpm
Mass = 0.41 kg
d1 = 57.6mm
D2 = 75.2mm
r1r2 min = 1.1mm
da min = 52
