SKU: 6206-2RS1NR/C3-MB

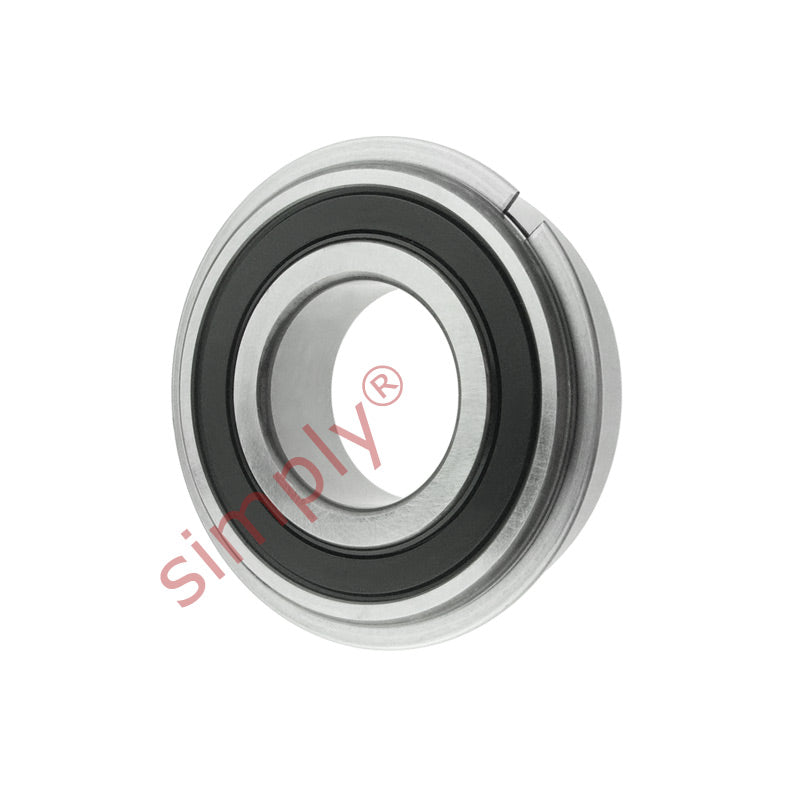

Major Branded 62062RS1NR/C3 Rubber Sealed Snap Ring Deep Groove Ball Bearing 30x62x16mm
- Regular price
- €19,95 ex VAT
- Sale price
- €19,95
- Regular price
-
Quantity Price Breaks
Major Branded 62062RS1NR/C3 Rubber Sealed Snap Ring Deep Groove Ball Bearing 30x62x16mm
- Regular price
- €19,95 ex VAT
- Sale price
- €19,95
- Regular price
-
Description
|
Rubber Sealed Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame, these bearing types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
Technical
| d | = | 30mm |
| D | = | 62mm |
| B | = | 16mm |
| Dynamic load C | = | 20.3 kN |
| Static load Co | = | 11.2 kN |
| Fatigue load limit Pu | = | 0.475 kN |
| Reference speed | = | 24000 rpm |
| Limiting speed | = | 7500 rpm |
| Mass | = | 0.2 kg |
| d1 | = | 40.4mm |
| D2 | = | 54.1mm |
| r1r2 min | = | 1mm |
| da min | = | 35.6 |
