SKU: 61908-2Z/C3-MB

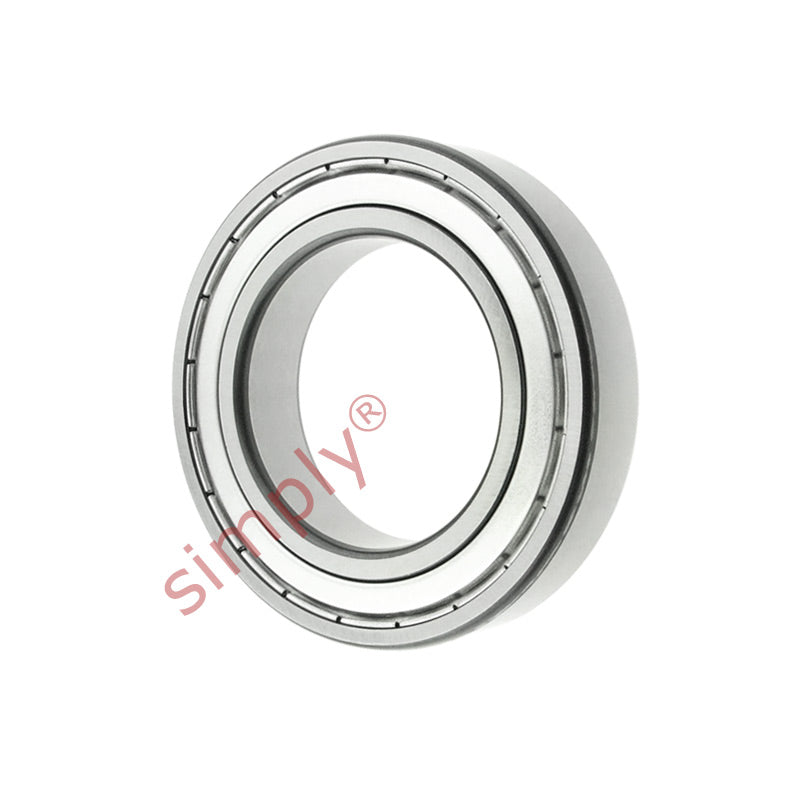

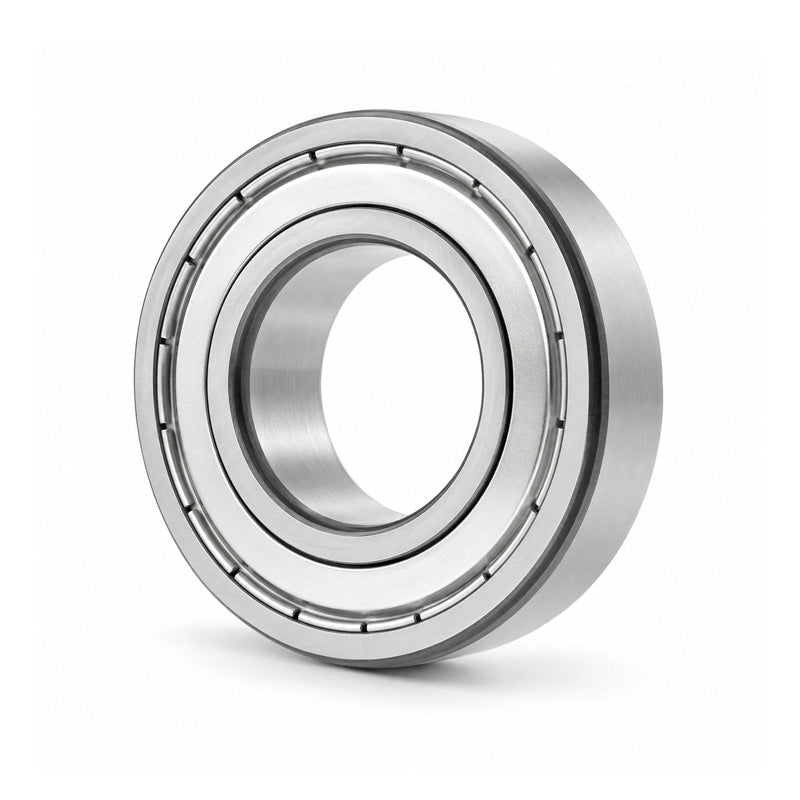

Major Branded 619082ZC3 Metal Shielded Thin Section Deep Groove Ball Bearing 40x62x12mm
- Regular price
- €42,95 ex VAT
- Sale price
- €42,95
- Regular price
-
Quantity Price Breaks
Major Branded 619082ZC3 Metal Shielded Thin Section Deep Groove Ball Bearing 40x62x12mm
- Regular price
- €42,95 ex VAT
- Sale price
- €42,95
- Regular price
-
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Technical
| d | = | 40mm |
| D | = | 62mm |
| B | = | 12mm |
| Dynamic load C | = | 13.8 kN |
| Static load Co | = | 10 kN |
| Fatigue load limit Pu | = | 0.425 kN |
| Reference speed | = | 24000 rpm |
| Limiting speed | = | 6700 rpm |
| Mass | = | 0.12 kg |
| d1 | = | 46.9mm |
| D2 | = | 57.3mm |
| r1r2 min | = | 0.6mm |
| da min | = | 43.2 |
