SKU: 61903-ZZ-CDX

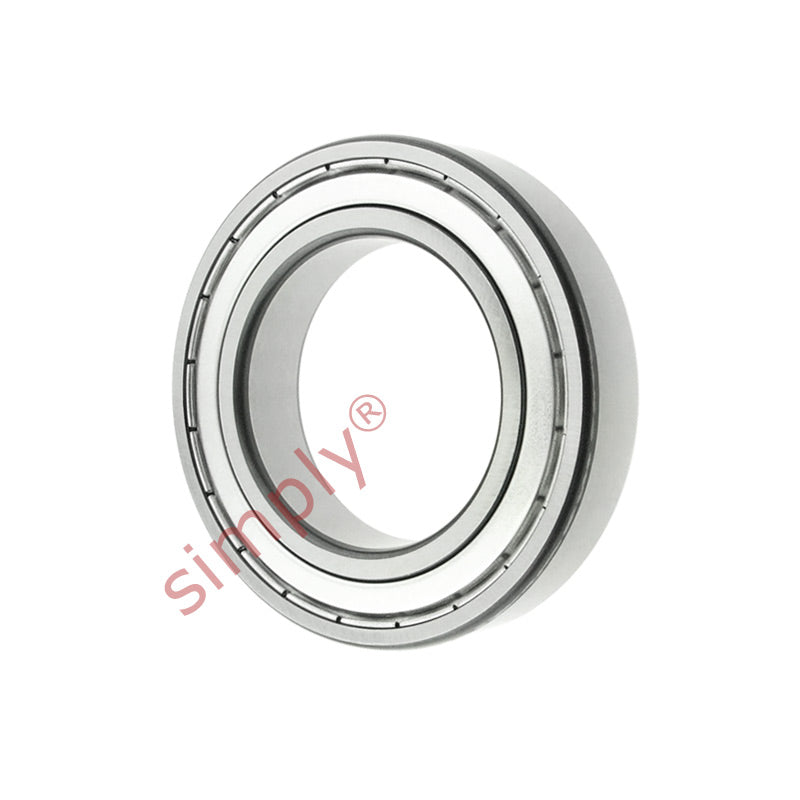

Codex 61903ZZ Metal Shielded Thin Section Deep Groove Ball Bearing 17x30x7mm
- Regular price
- €8,95 ex VAT
- Sale price
- €8,95
- Regular price
-
Quantity Price Breaks
Codex 61903ZZ Metal Shielded Thin Section Deep Groove Ball Bearing 17x30x7mm
- Regular price
- €8,95 ex VAT
- Sale price
- €8,95
- Regular price
-
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Technical
| d | = | 17mm |
| D | = | 30mm |
| B | = | 7mm |
| Dynamic Load | = | 4.62 kN |
| Static Load | = | 2.55 kN |
| Fatigue Load Limit Pu | = | 0.108 |
| Reference Speed | = | 50000 rpm |
| Limiting Speed | = | 26000 rpm |
| Weight | = | 0.018kg |
| d1 | = | 20.4mm |
| D2 | = | 27.8mm |
| r1r2 min | = | 0.3mm |
| da min | = | 19mm |
| Da max | = | 28mm |
| ra max | = | 0.3 |
| Calc factor kr | = | 0.02 |
| Calc factor Cor f0 | = | 15 |
