SKU: 61816-MB

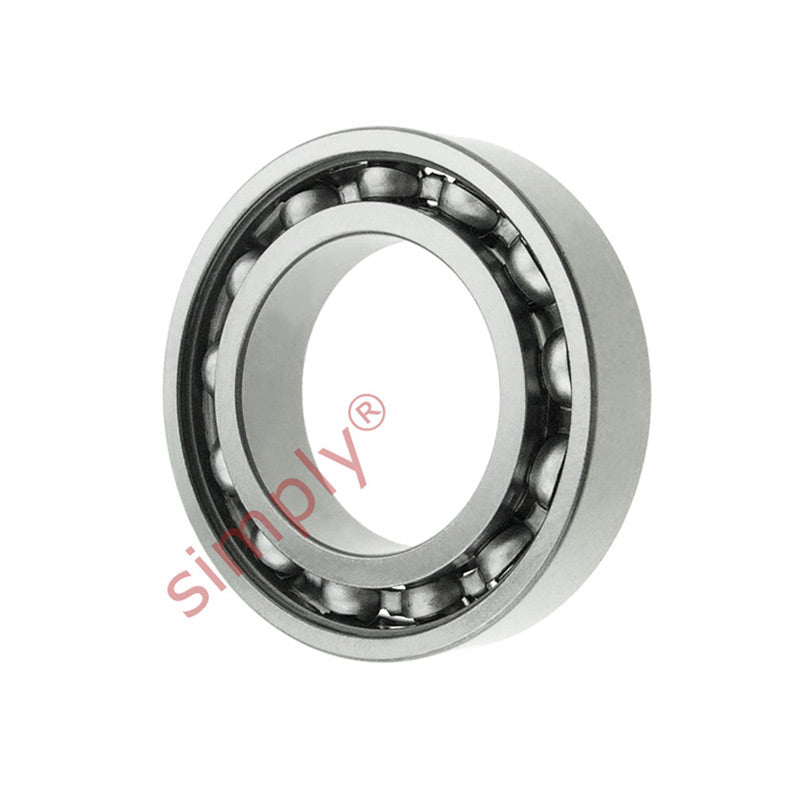

Major Branded 61816 Open Thin Section Deep Groove Ball Bearing 80x100x10mm
- Regular price
- €162,95 ex VAT
- Sale price
- €162,95
- Regular price
-
In stock
Quantity Price Breaks
10+
€145,03
19+
€136,88
29+
€135,25
39+
€133,62
49+
€131,99
74+
€130,36
99+
€122,21
199+
€120,58
249+
€118,95
499+
€117,32
999+
€114,07
SKU:
61816-MB
Major Branded 61816 Open Thin Section Deep Groove Ball Bearing 80x100x10mm
- Regular price
- €162,95 ex VAT
- Sale price
- €162,95
- Regular price
-
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
Technical
| d | = | 80mm |
| D | = | 100mm |
| B | = | 10mm |
| Dynamic load C | = | 13 kN |
| Static load Co | = | 15 kN |
| Fatigue load limit Pu | = | 0.64 kN |
| Reference speed | = | 13000 rpm |
| Limiting speed | = | 8000 rpm |
| Mass | = | 0.15 kg |
| d1 | = | 86.6mm |
| D1 | = | 93.4mm |
| r1r2 min | = | 0.6mm |
| da min | = | 83.2mm |
| Da max | = | 96.8mm |
| ra max | = | 0.6mm |
| Calc factor Kr | = | 0.015 |
| Calc factor | = | 17 |
